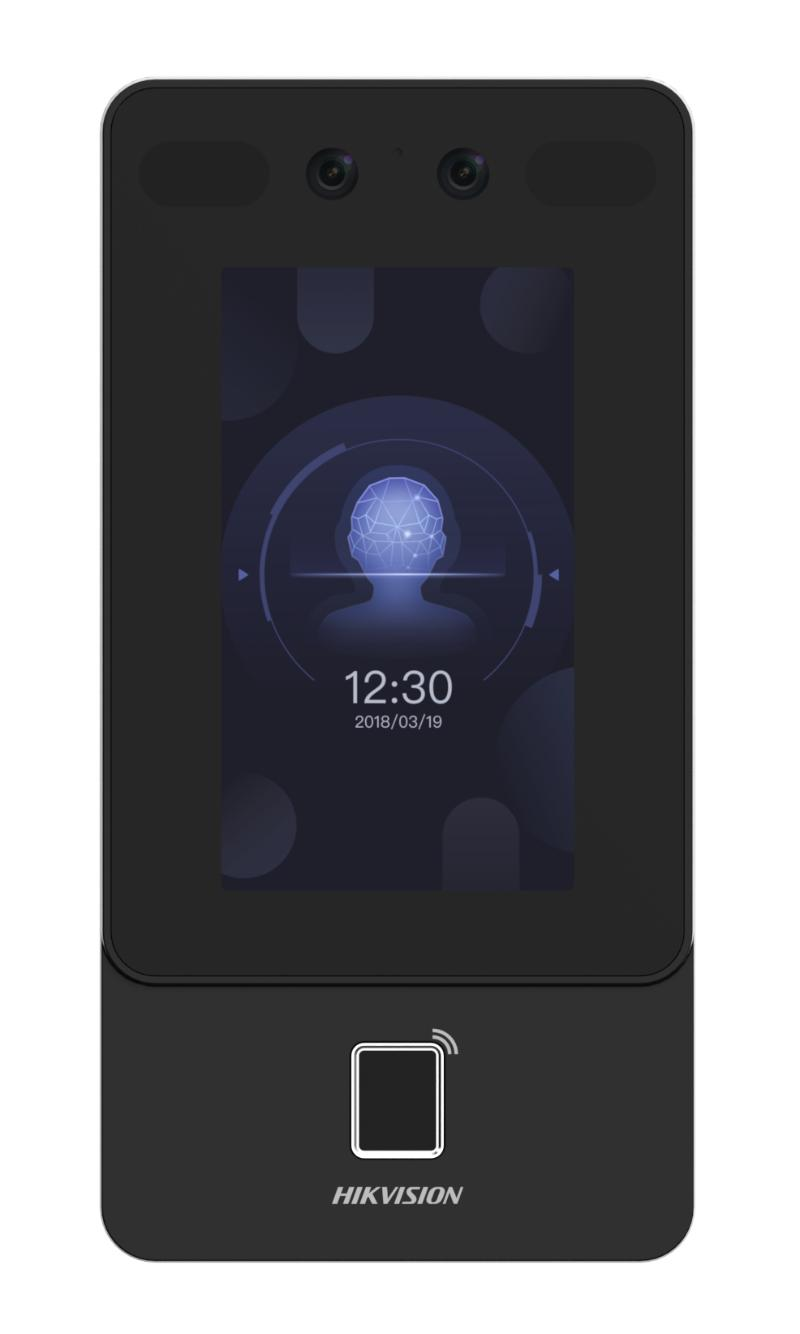

Hikvision DS-K1T342MFX-E1 – Face Recognition Terminal with Fingerprint
The Hikvision DS-K1T342MFX-E1 Kenya listing covers a face recognition terminal that adds a fingerprint sensor and an M1 card reader to its 2 MP camera. Specifically, deep-learning recognition identifies a face in under 0.2 seconds at 0.3 to 1.5 m. As a result, each user can enter by face, fingerprint, or card, whichever suits them.
Meanwhile, the terminal recognises faces even when users wear masks, and face anti-spoofing rejects photos and screens. In addition, it stores 1,500 faces, 3,000 fingerprints, 3,000 cards, and 150,000 events. A duplicate-face check stops the same person from being enrolled twice.
Furthermore, a 4.3-inch capacitive touchscreen guides users, and two-way audio links to indoor stations, main stations, and client software. It also registers with SIP servers such as Asterisk, 3CX, and Kamailio. For instance, reception staff can answer a door call from an existing IP phone system.
Notably, the terminal runs on a 12 VDC adapter (included) or PoE (IEEE 802.3at). With PoE+, it can also power a 12 VDC door lock. Its IP65 housing works from -30°C to 60°C, and an attendance-only mode turns it into a clock-in device. For locks, indoor stations, and switches to pair with it, browse our full Hikvision catalogue.
Technical Specifications
Display, Video & Audio
| Specification | Details |
|---|---|
| Model | DS-K1T342MFX-E1 |
| Product Type | Face Recognition Terminal |
| Operating System | Linux |
| Display | 4.3-inch LCD, capacitive touch |
| Resolution | 272 × 480 |
| Camera | 2 MP wide-angle (2 lenses) |
| Video Standard | PAL (default), NTSC |
| Two-Way Audio | With client software, indoor station, and main station |
| SIP Compatibility | Asterisk, 3CX, Elastix, miniSipServer, Brekeke, OpenSIPS, Kamailio |
Authentication & Capacity
| Specification | Details |
|---|---|
| Authentication Methods | Face, fingerprint, card, PIN |
| Face Recognition Duration | < 0.2 s per user |
| Face Recognition Accuracy | ≥ 99% (per datasheet feature list) |
| Face Recognition Distance | 0.3 m to 1.5 m |
| Masked Face Recognition | Supported |
| Face Anti-Spoofing | Supported |
| Face Duplicate Checking | Supported |
| Fingerprint Recognition Duration | < 1 s |
| Card Type | M1 card |
| Card Reading Frequency | 13.56 MHz |
| PIN | Platform-applied and device-set personal PINs |
| Face Capacity | 1,500 |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 3,000 |
| Event Capacity | 150,000 |
| Attendance Mode | Attendance-only mode supported |
Network & Interfaces
| Specification | Details |
|---|---|
| Wired Network | 10/100 Mbps self-adaptive |
| Protocols | TCP/IP, ISAPI, ISUP 5.0; Push SDK |
| Configuration | Web client |
| Network Interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| Tamper | 1 |
| USB | 1 |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 12 VDC / 1 A adapter (included), or PoE 37–57 VDC / 0.6 A |
| PoE | IEEE 802.3at |
| Door Lock Output | 12 VDC / 1 A (when powered by PoE that supports it) |
| Working Temperature | -30°C to 60°C |
| Working Humidity | 0% to 90% (non-condensing) |
| Protective Level | IP65 |
| Installation | Wall mounting |
| Dimensions | 91.3 mm × 181.3 mm × 24.5 mm |
| Net Weight | 0.36 kg |
| Gross Weight | 0.93 kg |
| Languages | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean, Traditional Chinese, French, Turkish, Kazakh, Uzbek |
| Optional Accessories | DS-KAB6-ZU3, DS-KAB6-ZU1, DS-KAB671-P2, DS-KAB34X-S1, DS-KAB6-W1 |
