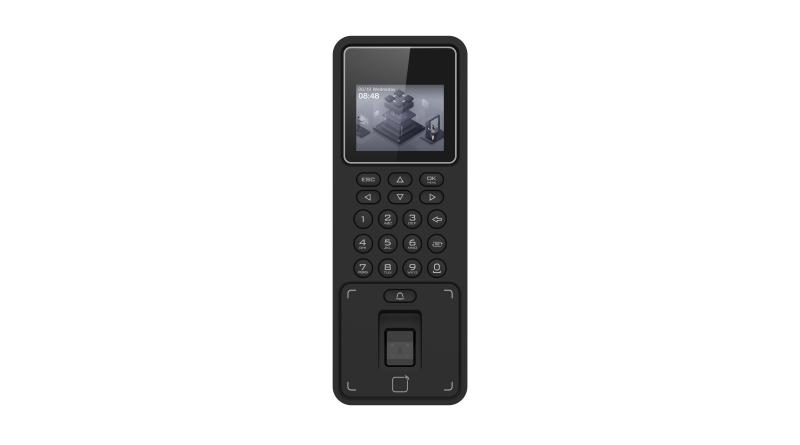

Hikvision DS-K1T808MFWX-B – Pro Series Fingerprint Terminal with Battery Backup
The Hikvision DS-K1T808MFWX-B Kenya listing covers a Pro Series fingerprint access control terminal that adds battery power through its mounting bracket. Specifically, the bracket holds a rechargeable battery, so the terminal keeps working when mains power drops. As a result, staff can still open the door by fingerprint, M1 card, or PIN during a blackout.
Meanwhile, the terminal stores 3,000 fingerprints, 3,000 cards, and 100,000 events. In addition, its optical sensor matches fingerprints in 1:1 or 1:N mode, and a 2.4-inch LCD shows each result. The same unit also logs local time and attendance, which saves buying a separate clock-in device.
Furthermore, it joins the network over 10/100 Mbps Ethernet or 2.4 GHz Wi-Fi with AP mode. Administrators can then configure it through PC or mobile web, while ISAPI and ISUP 5.0 let it report to Hikvision software. For instance, a head office can pull attendance from several branches into one system.
Notably, the terminal connects to a secure door control unit over RS-485, which moves the lock relay to the protected side of the door. It also offers Wiegand 26/34 for an external reader. The terminal runs on 12 VDC and draws 6 W or less. For locks, exit buttons, and cards to pair with it, browse our full Hikvision catalogue.
Technical Specifications
Display & Audio
| Specification | Details |
|---|---|
| Model | DS-K1T808MFWX-B |
| Product Type | Pro Series Fingerprint Terminal |
| Operating System | Linux |
| Display | 2.4-inch LCD |
| Resolution | 320 × 240 |
| Audio | Built-in buzzer |
| Keypad | Supported |
Authentication & Capacity
| Specification | Details |
|---|---|
| Authentication Methods | Fingerprint, M1 card, PIN |
| Card Type | M1 card (13.56 MHz) |
| Card Reading Distance | 0 to 5 cm (per Delta listing for DS-K1T808MFWX-B/S) |
| Fingerprint Module | Optical |
| Fingerprint Comparing Mode | 1:1 and 1:N |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 3,000 |
| Event Capacity | 100,000 |
| Time & Attendance | Local time and attendance supported |
Network & Interfaces
| Specification | Details |
|---|---|
| Wired Network | 1 × RJ-45, 10/100 Mbps auto-sensing |
| Wi-Fi | 2.4 GHz, IEEE 802.11b/g/n; AP mode |
| Protocols | ISAPI, ISUP 5.0 |
| Configuration | PC web, mobile web |
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| Tamper | 1 |
| RS-485 | 1 (half duplex; secure door control unit or card reader) |
| Wiegand | 1 (W26/W34) |
| USB | 1 |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 12 VDC |
| Battery | Supported via bracket (3.6 V / 3.2 Ah rechargeable, per Delta listing for DS-K1T808MFWX-B/S) |
| Power Consumption | ≤ 6 W |
| Working Temperature | -10°C to 55°C |
| Working Humidity | 0% to 90% (non-condensing) |
| Installation Environment | Indoor |
| Housing | Plastic, black (per Delta listing) |
| Dimensions | 211 mm × 77 mm × 52 mm, with battery bracket (per Delta listing) |
| Weight | 0.32 kg (per Delta listing) |
| Languages | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese |
