Hikvision DS-KAS-7M01 – Single-Door Accessory Kit for Access Control Terminals

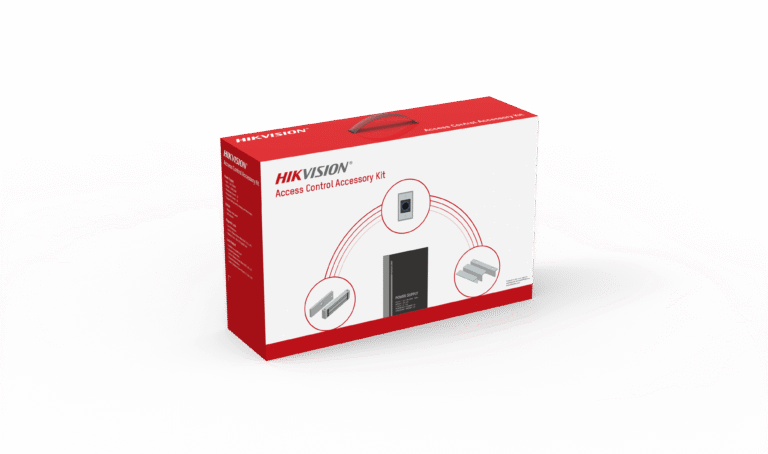

The Hikvision DS-KAS-7M01 Kenya listing covers a single-door accessory kit that supplies the hardware an access control terminal needs to secure a door. Specifically, it includes a 600 lb (272 kg) magnetic lock, an L and Z lock bracket, a stainless-steel exit button, and a 12 VDC power supply. As a result, installers can fit a complete door from one box once they add a Hikvision terminal.
Meanwhile, the DS-K4H255S magnetic lock fits wooden, glass, and metal doors, and the included L and Z brackets help mount it where the frame alone won’t take the lock. In addition, the lock runs on 12 VDC (470 mA) or 24 VDC (235 mA), so it suits both common supply voltages. Its body and armature plate carry a zinc electroplated finish.
Furthermore, the DS-K7M-AW24 power supply accepts 110–230 VAC and delivers 12 VDC at 24 W. It also supports backup battery charging and discharging, which helps keep the door secured through a power cut. For instance, a site can add a standby battery so the lock stays powered when the mains fails.
Notably, the DS-K7P07 exit button has a stainless-steel panel and an LED indicator, so staff can leave without presenting a credential. For face terminals, fingerprint readers, and controllers to pair with it, browse our full Hikvision catalogue.
Technical Specifications
Kit Contents
| Specification | Details |
|---|---|
| Model | DS-KAS-7M01 |
| Product Type | Accessory Kit for Access Control Terminal |
| Power Supply | DS-K7M-AW24 × 1 |
| Magnetic Lock | DS-K4H255S × 1 |
| Lock Bracket | DS-K4H255-LZ (L and Z bracket) × 1 |
| Exit Button | DS-K7P07 × 1 |
Power Supply (DS-K7M-AW24)
| Specification | Details |
|---|---|
| Power Input | 110 to 230 VAC |
| Power Output | 12 VDC, 24 W |
| Momentary Current | 5 A |
| Persistent Current | 2 A (kit summary states 5 A – confirm with supplier) |
| Backup Battery | Supports charging and discharging |
| Working Temperature | -10°C to 50°C (14°F to 122°F) |
| Working Humidity | < 95% |
| Dimensions | 168 mm × 216 mm × 73.3 mm |
Magnetic Lock (DS-K4H255S)
| Specification | Details |
|---|---|
| Maximum Holding Force | 272 kg (600 lb) |
| Power Supply | 12 VDC, 470 mA or 24 VDC, 235 mA |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | 0 to 90% RH |
| Lock Body Dimensions | 250 mm × 28 mm × 48 mm (9.8″ × 1.1″ × 1.9″) |
| Armature Plate Dimensions | 180 mm × 38 mm × 12 mm (7.1″ × 1.5″ × 0.5″) |
| Door Type | Wooden, glass, and metal doors |
| Shell Finish | Hard anodising |
| Lock Body / Armature Plate | Eco-friendly zinc electroplating |
Lock Bracket (DS-K4H255-LZ)
| Specification | Details |
|---|---|
| L-Bracket Dimensions | 250 mm × 46 mm × 30 mm (9.8″ × 1.8″ × 1.2″) |
| Z-Bracket Dimensions | 180 mm × 47 mm × 47 mm (7.1″ × 1.9″ × 1.9″) |
| Suitable Doors | Wooden, glass, and metal doors |
| Material | High-strength aluminium alloy, sandblasted oxidation finish |
| Compatible Lock | Magnetic lock |
Exit Button (DS-K7P07)
| Specification | Details |
|---|---|
| Power Supply | 12 to 24 VDC |
| Indicator | LED |
| Panel Material | Stainless steel |
| Working Temperature | -20°C to 55°C (-4°F to 131°F) |
| Working Humidity | 0 to 95% RH |
| Dimensions | 115 mm × 70 mm × 16 mm (4.53″ × 2.76″ × 0.63″) |
