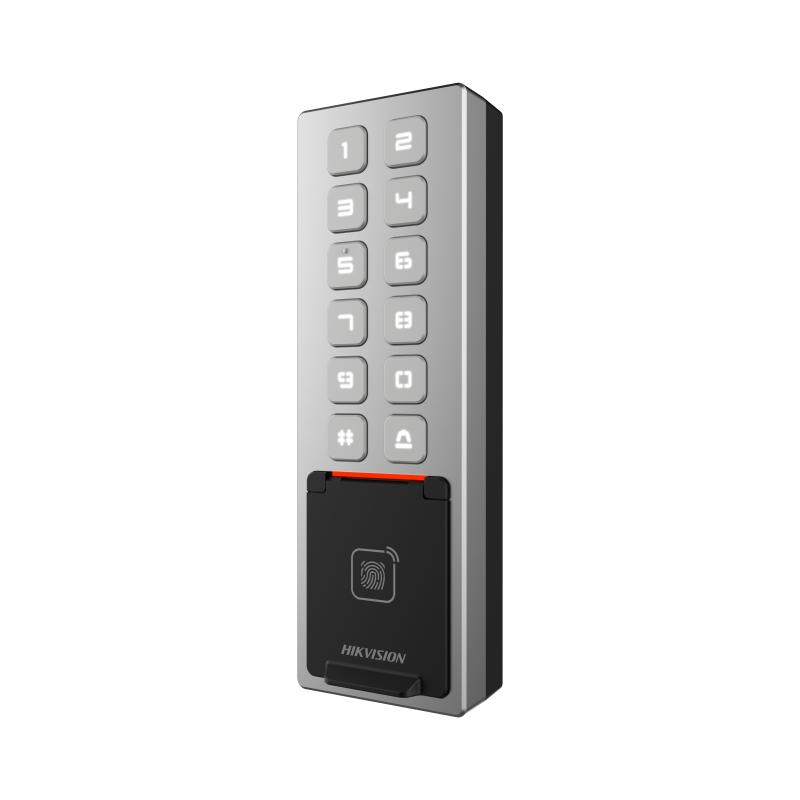

Hikvision DS-K1T805MBFWX – Fingerprint & Card Access Control Terminal
The Hikvision DS-K1T805MBFWX Kenya listing covers a slim metal access control terminal that reads fingerprints, M1 cards, and PIN codes at the door. Specifically, an optical fingerprint module matches users in under 1 second in both 1:1 and 1:N modes. As a result, staff and residents enter quickly without queuing at the reader.
Meanwhile, the terminal stores 3,000 fingerprints, 10,000 cards, and 100,000 events. In addition, it opens doors from a smartphone over Bluetooth, and it connects by Ethernet or 2.4 GHz Wi-Fi. Owners can then manage users and check entry logs through the Hik-Connect app.
Furthermore, the housing carries IP65 and IK08 ratings, so it can sit at outdoor gates and exposed doorways. It operates from -30°C to 60°C and runs on 12 VDC / 1 A. Notably, the terminal has no PoE input, so installers need a separate power supply.
The unit also drives a door lock, exit button, and door contact directly. It connects to an external controller through Wiegand 26/34 or RS-485 with OSDP. For locks, exit buttons, and cards to pair with it, browse our full Hikvision catalogue.
Technical Specifications
Authentication & Capacity
| Specification | Details |
|---|---|
| Model | DS-K1T805MBFWX |
| Product Type | Fingerprint Access Control Terminal (Value Series) |
| Operating System | Linux |
| Authentication Methods | Card, fingerprint, PIN, Bluetooth |
| Card Type | M1 card |
| Card Reading Distance | 0 to 4 cm |
| Card Reading Duration | < 1 s |
| Fingerprint Module | Optical fingerprint module |
| Fingerprint Comparing Mode | 1:1 and 1:N |
| Fingerprint Recognition Duration | < 1 s |
| Card Capacity | 10,000 |
| Fingerprint Capacity | 3,000 |
| Event Capacity | 100,000 |
Network & Interfaces
| Specification | Details |
|---|---|
| Wired Network | 10/100 Mbps self-adaptive |
| Wi-Fi | 2.4 GHz, IEEE 802.11b/g/n/d/e/h/i |
| Bluetooth | Supported |
| Network Interface | 1 |
| RS-485 | 1 (supports OSDP) |
| Wiegand | Wiegand 26/34 |
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| Alarm Input | 2 |
| Alarm Output | 1 |
| Tamper | 1 |
| Audio Output | 1 built-in buzzer |
Functions & Management
| Specification | Details |
|---|---|
| Hik-Connect | Supported |
| Web Configuration | PC web configuration and mobile web operation |
| AP Mode | Supported |
| Languages | English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, Ukrainian, Russian |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 12 VDC / 1 A |
| PoE | Not supported |
| Power Consumption | ≤ 12 W |
| Working Temperature | -30°C to 60°C (-22°F to 140°F) |
| Working Humidity | 0% to 90% (non-condensing) |
| Protective Level | IP65, IK08 |
| Housing | Slim metal design |
| Dimensions | 57.7 mm × 177 mm × 34.6 mm (2.3″ × 7.0″ × 1.4″) |
