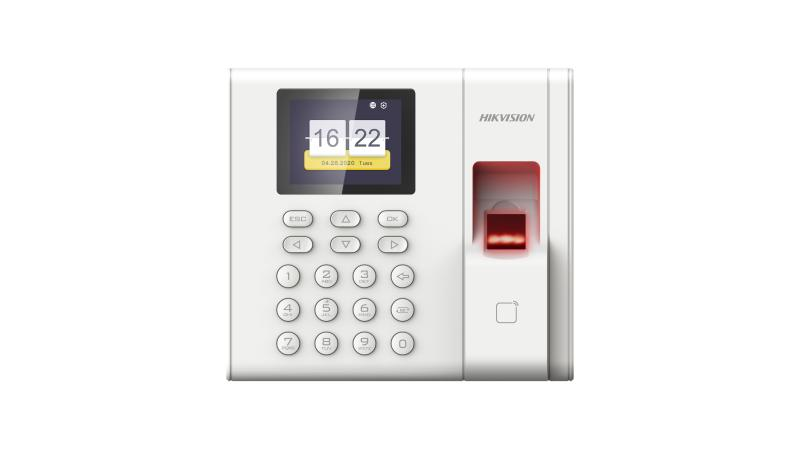

Hikvision DS-K1A8503MF-B – Value Series Fingerprint Time Attendance Terminal
The Hikvision DS-K1A8503MF-B Kenya listing covers a desk- or wall-mounted time attendance terminal that records staff clock-ins by fingerprint or MIFARE card. Specifically, it pairs an optical fingerprint sensor with a built-in M1 card reader, so each worker uses whichever credential suits them. As a result, it replaces paper registers and manual sign-in sheets with automatic attendance records.
In addition, the terminal identifies a fingerprint in under 1 second with 1:N matching. Its false acceptance rate is 0.001% or lower, which keeps one employee from clocking in for another. Meanwhile, a 2.4-inch LCD confirms each punch with the time, date, and status.
Furthermore, HR teams can set up to 32 shifts, 32 man-hour shifts, and 32 holiday schedules. Staff pick from six attendance statuses, such as break out or overtime in. The terminal then builds attendance reports automatically, and HR can copy them to a USB flash drive without a PC connection.
Notably, it also links to a 10/100 Mbps network over TCP/IP, with ISAPI and ISUP 5.0 support for Hikvision software. It stores 1,000 users and 100,000 records, runs on a 5 VDC adapter, and supports battery backup. For access control and attendance products to pair with it, browse our full Hikvision catalogue.
Technical Specifications
Display & Audio
| Specification | Details |
|---|---|
| Model | DS-K1A8503MF-B |
| Product Type | Value Series Fingerprint Time Attendance Terminal |
| Operating System | Linux |
| Display | 2.4-inch LCD-TFT (time, date, week, attendance information) |
| Audio | 1 loudspeaker, 1 buzzer |
Authentication & Capacity
| Specification | Details |
|---|---|
| Authentication Methods | Fingerprint, card |
| Fingerprint Module | Optical |
| Fingerprint Comparison Mode | 1:1 and 1:N |
| Fingerprint Recognition Duration | < 1 s |
| False Acceptance Rate (FAR) | ≤ 0.001% |
| False Rejection Rate (FRR) | ≤ 0.01% |
| Card Type | Mifare 1 (M1) card |
| Card Reading Distance | 0 to 5 cm |
| User Capacity | 1,000 |
| Fingerprint Capacity | 1,000 |
| Card Capacity | 1,000 |
| Event Capacity | 100,000 |
Network & Interfaces
| Specification | Details |
|---|---|
| Wired Network | TCP/IP, 10/100 Mbps self-adaptive |
| Network Interface | 1 |
| USB | 1 (attendance report download via USB flash drive) |
| Protocols | ISAPI, ISUP 5.0 |
Attendance Functions
| Specification | Details |
|---|---|
| Operation Mode | Stand-alone; local enrolment of persons, cards, and fingerprints |
| Shift Schedules | Up to 32 normal shifts, 32 man-hour shifts |
| Holiday Schedules | Up to 32 |
| Attendance Statuses | Check in/out, break in/out, overtime in/out |
| Report Generation | Automatic |
| Languages | 11 languages, including English, Spanish, French, Arabic, and Thai |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 5 VDC / 1 A |
| Battery | Supported (capacity not specified in datasheet) |
| Working Temperature | -10°C to 55°C |
| Working Humidity | 10% to 90% (non-condensing) |
| Colour | White (per Hikvision datasheet V1.3) |
| Dimensions | 140 mm × 155 mm × 30 mm |
| Installation | Indoor, wall mounting |
