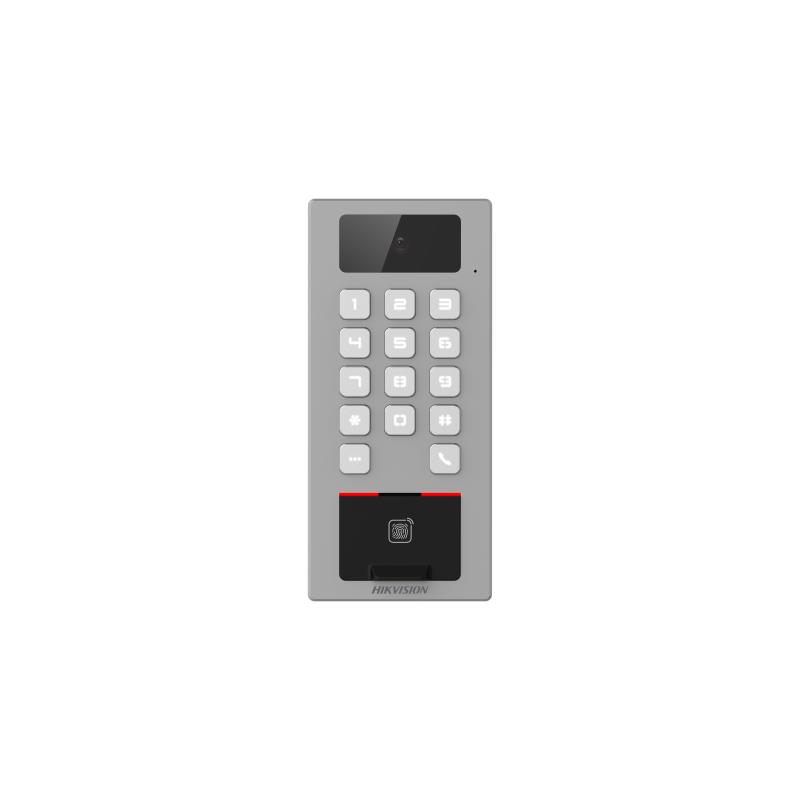

Hikvision DS-K1T502DBFWX-C – Fingerprint Access Control Terminal with Video Intercom

The Hikvision DS-K1T502DBFWX-C Kenya listing covers an outdoor access control terminal that combines a fingerprint reader, a DESFire card reader, and video intercom in one unit. Specifically, it stores up to 10,000 fingerprints and verifies each one in under 1 second. As a result, staff and residents enter by touch, without carrying a card.

Meanwhile, users can also open the door by MIFARE DESFire card (13.56 MHz), PIN, or QR code, or a combination of methods. In addition, the terminal holds up to 100,000 cards, PINs, or QR codes and 300,000 event records. A microSD slot up to 256 GB adds local storage.

Furthermore, a 2 MP camera and two-way audio turn the terminal into a door station. For instance, visitors can call a guard or resident, who then unlocks the door remotely through Hik-Connect. The terminal connects by Ethernet or Wi-Fi and links to controllers and readers over Wiegand 26/34 and RS-485.

Notably, the housing carries IP65 and IK09 ratings, so it resists rain, dust, and impact at exposed gates. It operates from -40°C to 70°C and runs on 12–24 VDC. For locks, exit buttons, and cards to pair with it, browse our full Hikvision catalogue.

Technical Specifications

Note: Hikvision’s official datasheet could not be retrieved. The specifications below follow distributor Visiotech’s listing. Confirm figures with your supplier before publishing.

Authentication & Capacity

Video, Audio & Storage

Network & Interfaces

Power & Physical
