Hikvision DS-K3GL606WX-WE – Sliding Gate Opener Kit

Name: Hikvision DS-K3GL606WX-WE – Sliding Gate Opener Kit
Brand: HIKVISION
SKU: DS-K3GL606WX-WE
Price: 48840 KES
Availability: InStock

in Hikvision Access Control

Sku: DS-K3GL606WX-WE

KSh 48,840

Available in stock

Features

Key Features

600 kg / 20 m gate capacity – drives heavy residential and light commercial sliding gates.
Up to 0.6 m/s opening speed – brush motor with 30 Kgf starting and 17 Kgf rated push force.
Wi-Fi, LAN, and optional 4G – manages the gate remotely through Hik-Connect.
Built-in access control – opens by PIN, card, or QR code with an external reader; stores 250,000 cards.
Battery-driven with low-power mode – keeps the gate running through power outages (2 × 12 V 7 Ah batteries sold separately).

Category: Hikvision Access Control Brand: HIKVISION

Description
Reviews (0)

Description

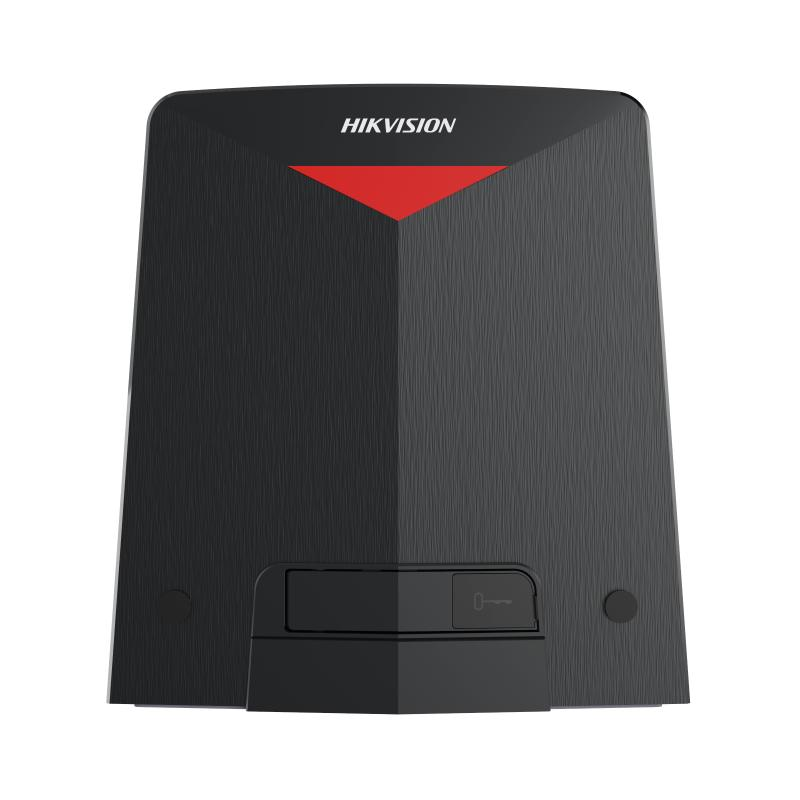

Hikvision DS-K3GL606WX-WE – 600 kg Sliding Gate Opener Kit

The Hikvision DS-K3GL606WX-WE Kenya listing covers a battery-driven sliding gate opener for gates up to 600 kg in mass and 20 m in length. Specifically, a brush motor delivers 30 Kgf of starting push force and 17 Kgf of rated force. As a result, it moves the gate at up to 0.6 m/s (36 m/min), while soft start and stop reduce strain on the track and rack.

Meanwhile, the opener connects through built-in Wi-Fi and a 10/100 Mbps Ethernet port, with 4G as an option. In addition, it works with Hik-Connect, so owners can open the gate and check its status remotely. Installers can also configure it from a phone in AP mode with a single tap on its NFC tag.

Furthermore, a built-in access control system stores 250,000 cards, 3,000 keyfobs, and 500,000 events. With an external card reader, users can open the gate by PIN, card, or QR code. The opener also links with Hikvision intercom, alarm, and access control systems through its RS-485 and alarm interfaces.

Notably, the unit runs from two 12 V 7 Ah batteries, which Hikvision does not include in the box. Because of this, installers need to buy them separately before commissioning. The batteries keep the gate working during power cuts, and a low-power mode extends standby time. The housing carries an IPX5 rating and operates from -15°C to 55°C. For cameras, intercoms, and access control products to pair with it, browse our full Hikvision catalogue.

Technical Specifications

Motor & Gate Capacity

Specification	Details
Model	DS-K3GL606WX-WE
Product Type	Sliding Gate Opener
Motor	Brush motor
MCBF	≥ 0.8 million cycles
Gate Mass – Maximum	600 kg
Gate Length – Maximum	20 m
Open Speed	Up to 0.6 m/s (36 m/min) @ 17 Kgf
Motor Push Force – Starting	30 Kgf
Motor Push Force – Rated	17 Kgf
Battery	12 V 7 Ah × 2 (not included in the box; purchase separately; max. battery size 151 × 94 × 65 mm)
Expansion Screw	M12 × 150 mm

Network & Interfaces

Specification	Details
Wired Network	10/100 Mbps self-adaptive Ethernet
Wi-Fi	Supported
4G	Optional
Network Interface	1
Exit Button	2
Alarm Output	2
Tamper	1
RS-485	1
Case Input	2
IR Connection	2
Emergency Input	1
Power Supply Output	12 V / 0.2 A × 2
Communication Protocol	TCP/IP, ISAPI

Access Control & Functions

Specification	Details
Card Capacity	250,000
Event Capacity	500,000
Remote Keyfob Capacity	3,000
Keyfob	868 MHz, range within 50 m
Authentication	PIN code, card, and QR code (with external card reader); multi-factor authentication
Configuration	PC web, mobile web, AP mode via NFC tag
Remote Management	Hik-Connect
Linkage	Intercom, alarm, and access control systems
Self-Diagnostics	Component status self-diagnostics
Motion Functions	Reopen, pedestrian mode, soft start and stop
Flashing Light	Supported
Buzzer	Supported

Power & Physical

Specification	Details
Power Supply	100–240 VAC, 50/60 Hz; rated current 0.8 A; peak current 4 A
Power Consumption	Standby: 5 W; Working: 280 W; Peak: 400 W
Low-Power Mode	Supported (extends standby after power outage)
Working Temperature	-15°C to 55°C (5°F to 131°F)
Working Humidity	10% to 95% (non-condensing)
Protective Level	IPX5
Dimensions (Without Package)	309.72 mm × 225.66 mm × 330 mm (12.2″ × 8.9″ × 13.0″)
Dimensions (With Package)	360 mm × 275 mm × 450 mm (14.17″ × 10.83″ × 17.72″)
Net Weight	7.45 kg (16.3 lb)
Gross Weight	10 kg (22 lb)
Approvals	CE, CB, RoHS, REACH, WEEE
Languages	English, Arabic, Indonesian, Japanese, Kazakh, Portuguese (Brazil), Spanish (Latin America), Spanish (Europe), Thai, Russian, Ukrainian, Uzbek, Vietnamese, Korean
Accessory / Optional Part Codes	DS-KEC01-GM/GL606X; DS-KSM03/GL606, DS-K7IR01, DS-KSB01-GL, DS-KSR01-GL (datasheet does not itemise kit contents – confirm keyfob, base plate, and rack with supplier)
