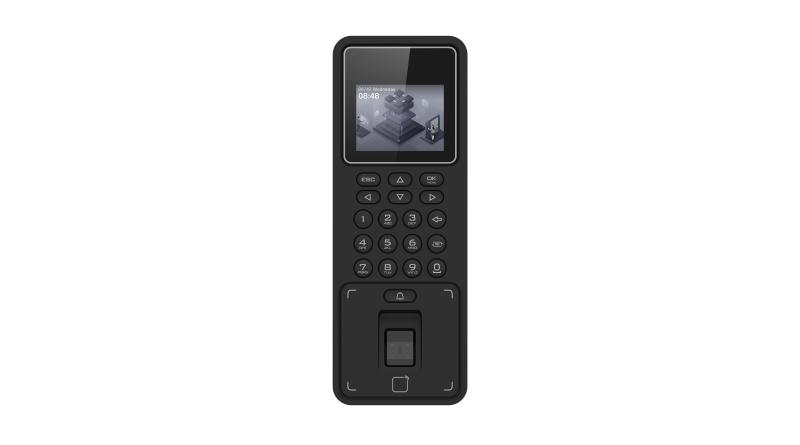

Hikvision DS-K1T808MFWX – Pro Series Fingerprint Terminal
The Hikvision DS-K1T808MFWX Kenya listing covers a Pro Series fingerprint access control terminal with a built-in M1 card reader and keypad. Specifically, an optical fingerprint module matches users in 1:1 or 1:N mode. As a result, staff can open a door by fingerprint, card, PIN, or a combination of them.
Meanwhile, the terminal stores 3,000 fingerprints, 3,000 cards, and 100,000 events. In addition, a 2.4-inch colour LCD shows each access result. The unit also records local time and attendance, so one device covers door entry and staff clock-in.
Furthermore, it connects by 10/100 Mbps Ethernet or 2.4 GHz Wi-Fi, and it supports AP mode for quick setup. Owners can then manage it through PC web, mobile web, or the Hik-Connect app. It also speaks ISAPI and ISUP 5.0, so it works with iVMS-4200 and HikCentral.
Notably, it drives a lock, exit button, and door contact directly. For instance, installers can add a secure door control unit over RS-485 or an external reader over Wiegand 26/34. It runs on 12 VDC and draws 6 W or less. For locks, exit buttons, and cards to pair with it, browse our full Hikvision catalogue
Technical Specifications
Note: Hikvision’s DS-K1T808MFWX datasheet could not be retrieved. Specifications follow the official DS-K1T808MFWX-B datasheet (20240424), which shares the same platform; the -B adds a battery bracket. Dimensions and weight come from a reseller listing for the base model.
Display & Audio
| Specification | Details |
|---|---|
| Model | DS-K1T808MFWX(O-STD) |
| Product Type | Pro Series Fingerprint Terminal |
| Operating System | Linux |
| Display | 2.4-inch LCD |
| Resolution | 320 × 240 |
| Audio | Built-in buzzer |
| Keypad | Supported |
Authentication & Capacity
| Specification | Details |
|---|---|
| Authentication Methods | Fingerprint, card, PIN, and combinations |
| Card Type | M1 card (13.56 MHz) |
| Fingerprint Module | Optical |
| Fingerprint Comparing Mode | 1:1 and 1:N |
| Fingerprint Recognition Duration | < 1 s (per reseller listing) |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 3,000 |
| Event Capacity | 100,000 |
| Time & Attendance | Local time and attendance supported |
Network & Interfaces
| Specification | Details |
|---|---|
| Wired Network | 1 × RJ-45, 10/100 Mbps auto-sensing |
| Wi-Fi | 2.4 GHz, IEEE 802.11b/g/n; AP mode |
| Protocols | ISAPI, ISUP 5.0 |
| Configuration | PC web, mobile web |
| Remote Management | Hik-Connect; iVMS-4200 / iVMS-4200 AC |
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| Tamper | 1 |
| RS-485 | 1 (half duplex; secure door control unit or card reader) |
| Wiegand | 1 (W26/W34) |
| USB | 1 |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 12 VDC (1 A max., per reseller listing) |
| Power Consumption | ≤ 6 W |
| Working Temperature | -10°C to 55°C |
| Working Humidity | 0% to 90% (non-condensing) |
| Installation Environment | Indoor |
| Dimensions (W × H × D) | 77 mm × 211 mm × 26 mm (per reseller listing) |
| Weight | 300 g (per reseller listing) |
| Languages | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese |
| Related Variant | DS-K1T808MFWX-B (adds battery support via bracket) |
