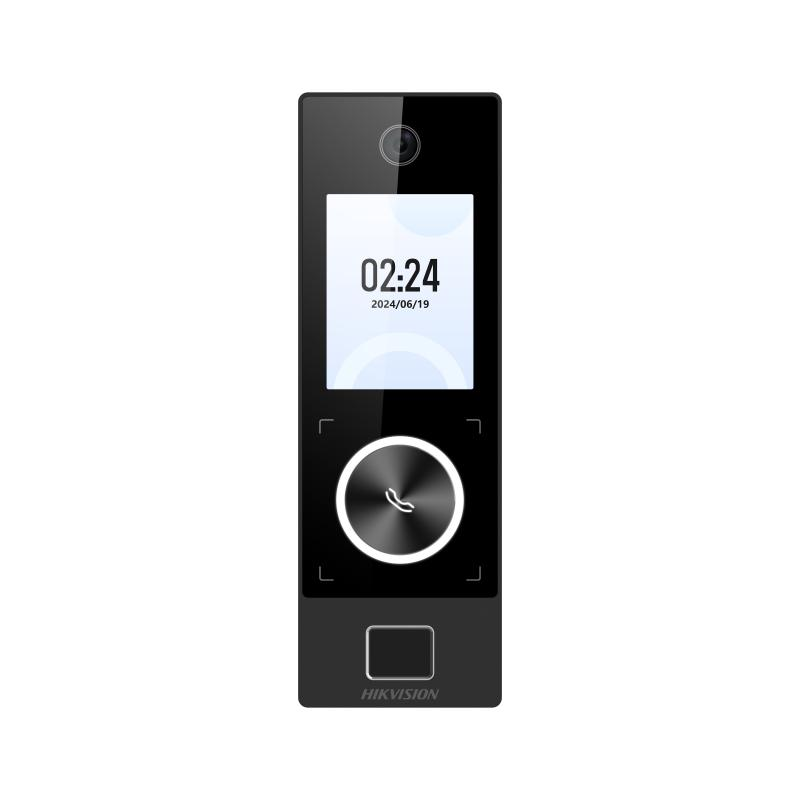

Hikvision DS-K1T323MBFWX-E1 – Value Series Face Recognition Terminal
The Hikvision DS-K1T323MBFWX-E1 Kenya listing covers a compact Value Series face access terminal that combines face, fingerprint, and card authentication. Specifically, a 2 MP wide-angle lens identifies users from 0.3 to 1.5 m at 99%+ accuracy. As a result, staff can pass a door hands-free or fall back on a fingerprint or card.
Meanwhile, the terminal stores 1,000 users and faces, 3,000 fingerprints, 3,000 cards, and 150,000 events. In addition, face anti-spoofing blocks photo and screen attacks. It also scans QR codes through its camera, so visitors can enter with a temporary code.
Furthermore, it connects by Ethernet, Wi-Fi, or Bluetooth and runs on 12 VDC or PoE (IEEE 802.3at). Notably, PoE can power both the terminal and the door lock from one cable. A call button and two-way audio let visitors speak to an indoor station, main station, or client software.
The slim 157 × 52 mm body fits narrow door frames, and its IP65 rating suits sheltered outdoor doors. It also operates from -30°C to 65°C. For locks, exit buttons, and indoor stations to pair with it, browse our full Hikvision catalogue.
Technical Specifications
Display, Video & Audio
| Specification | Details |
|---|---|
| Model | DS-K1T323MBFWX-E1 |
| Product Type | Value Series Face Access Terminal |
| Operating System | Linux |
| Display | 2.4-inch TFT, 240 × 320, non-touch |
| Camera | 2 MP wide-angle lens (1 lens) |
| WDR | Supported |
| Video Standard | PAL (default), NTSC |
| Two-Way Audio | With client software, indoor station, and main station |
| Audio Prompts | Supported |
| Physical Call Button | 1 |
Authentication & Capacity
| Specification | Details |
|---|---|
| Authentication Methods | Face, fingerprint, card |
| Face Recognition Duration | < 0.33 s per user (datasheet feature list states < 0.2 s) |
| Face Recognition Accuracy | > 99% |
| Face Recognition Distance | 0.3 m to 1.5 m |
| Face Anti-Spoofing | Supported |
| Card Types | M1 card, M1 card content, CPU card number |
| Card Reading Frequency | 13.56 MHz |
| QR Code | Scanning via camera |
| User Capacity | 1,000 |
| Face Capacity | 1,000 |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 3,000 |
| Event Capacity | 150,000 |
Network & Interfaces
| Specification | Details |
|---|---|
| Wired Network | 10/100 Mbps self-adaptive |
| Wi-Fi | Supported |
| Bluetooth | Supported |
| PoE | IEEE 802.3at |
| Network Interface | 1 |
| Wiegand | 1 (input only) |
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| Tamper | 1 |
| Configuration | AP mode, mobile web, PC web |
| Time Synchronisation | Supported |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 12 VDC / 1 A, or standard PoE (powers device and door lock) |
| Working Temperature | -30°C to 65°C (-22°F to 149°F) |
| Working Humidity | 0% to 90% (non-condensing) |
| Protective Level | IP65 |
| Installation | Wall mounting |
| Dimensions | 157 mm × 52 mm × 26 mm (6.18″ × 2.05″ × 1.02″) |
| Net Weight | 0.22 kg (0.49 lb) |
| Gross Weight | 0.61 kg (1.34 lb) |
| Languages | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French, Traditional Chinese |
| Optional Accessories | DS-KAB323-B1, DS-KAB323-S1, DS-KAB323-W1 |
