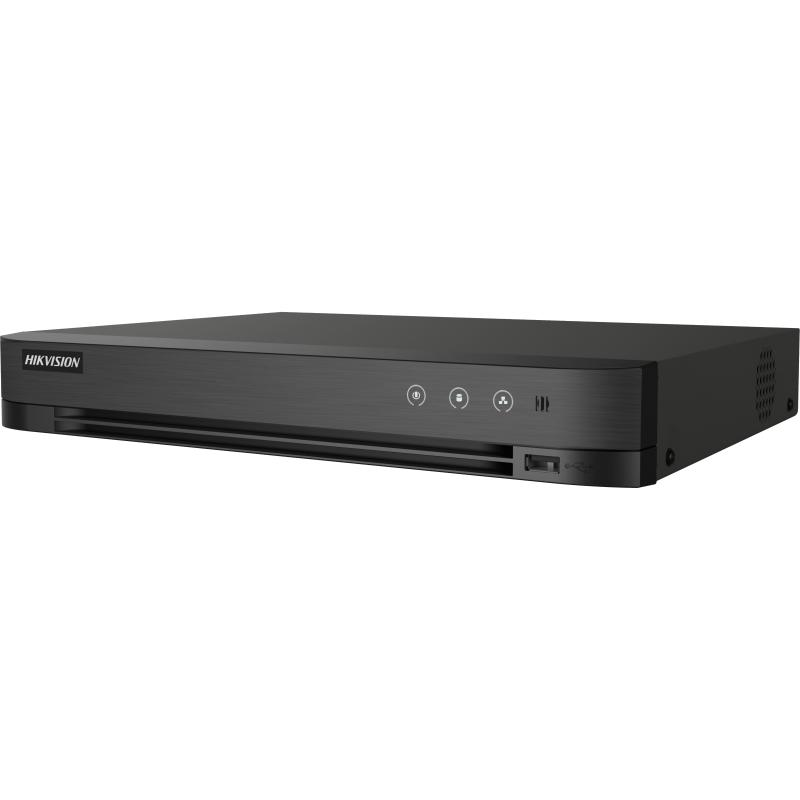

Hikvision iDS-7204HQHI-M1/FA – 4-ch 1080P 1U H.265 AcuSense DVR
The Hikvision iDS-7204HQHI-M1/FA is a 4-channel Turbo HD digital video recorder built for sites that want facial recognition alongside standard AcuSense detection. Specifically, it accepts HDTVI, AHD, HDCVI, and CVBS analog inputs, and it also supports up to 6 IP camera channels when Enhanced IP mode is active. As a result, installers can combine analog cameras with a handful of IP cameras on one recorder.
Meanwhile, deep-learning motion detection 2.0 runs on every analog channel by default, classifying humans and vehicles instead of reacting to every moving object. This, in turn, reduces false alerts caused by leaves, insects, or headlights. In addition, the /FA variant adds face picture comparison and search, supporting up to 16 face libraries with up to 500 stored pictures, alongside perimeter protection on up to two channels.
Furthermore, the DVR records at up to full-channel 1080p resolution using H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 compression, which keeps storage costs manageable. On top of that, a single SATA bay supports drives up to 10 TB, and Hik-Connect enables remote viewing without complex network setup.
Technical Specifications
Recording & Compression
| Specification | Details |
|---|---|
| Model | iDS-7204HQHI-M1/FA |
| Recorder Type | 4-ch 1080P 1U H.265 AcuSense DVR |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 3K Lite/5 MP Lite/4 MP Lite/1080p/720p/VGA/WD1/4CIF/CIF (or Lite equivalents when 1080p Lite mode is enabled) |
| Frame Rate (Main Stream) | Up to 25 fps (P)/30 fps (N) depending on stream-access resolution |
| Frame Rate (Sub-Stream) | WD1/4CIF @ 12 fps; CIF @ 25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 6 Mbps |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Smart Detection | Motion Detection 2.0 with human/vehicle classification (all analog channels); Perimeter Protection up to 2 channels |
| Facial Recognition | Face picture comparison and search; up to 16 libraries, up to 500 pictures total |
Note: Motion Detection 2.0, Perimeter Protection, and Facial Recognition are all deep-learning VCA functions; consult the user manual for feature-conflict rules across analog and IP channels.
Video & Audio I/O
| Specification | Details |
|---|---|
| Analog Video Input | 4-ch, BNC (1.0 Vp-p, 75 Ω), coaxitron-compatible |
| HDTVI Input | Up to 3K (2960 × 1665) @ 20 fps |
| AHD Input | Up to 5 MP (2560 × 1944) @ 20 fps |
| HDCVI Input | Up to 5 MP (2592 × 1944) @ 20 fps |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω); PAL 704 × 576, NTSC 704 × 480 |
| IP Video Input | 1-ch (up to 5-ch); Enhanced IP mode: 2-ch (up to 6-ch), each up to 4 Mbps, up to 6 MP |
| HDMI Output | 1-ch, up to 1920 × 1080 @ 60 Hz |
| VGA Output | 1-ch, up to 1920 × 1080 @ 60 Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Input | 1-ch (up to 4-ch optional), RCA (2.0 Vp-p, 1 KΩ); 4-ch via coaxial cable |
| Audio Output | 1-ch RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch RCA (2.0 Vp-p, 1 KΩ), using the first audio input |
| Synchronous Playback | 4-ch |
Network & Storage
| Specification | Details |
|---|---|
| Network Interface | 1 × RJ45, 10/100 Mbps self-adaptive |
| Total Bandwidth | 72 Mbps |
| Remote Connections | Up to 32 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Wi-Fi | Connectable via USB Wi-Fi dongle |
| Storage Interface | 1 × SATA, up to 10 TB per disk |
| Serial Interface | RS-485 (half-duplex) |
| USB Interface | 1 × USB 2.0 (front panel); 1 × USB 2.0 (rear panel) |
| Alarm In/Out | N/A (optional to support) |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | ≤ 18 W |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 10% to 90% |
| Dimensions (W × D × H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 in) |
| Weight | ≤ 1.16 kg (2.6 lb) |
Who This DVR Suits Best
- Small offices and gated compounds wanting face-based alerts – the /FA facial recognition libraries flag known or watch-listed faces at entrances, which suits reception areas and estate gates.
- Upgrades from older analog systems – 4-in-1 HDTVI/AHD/HDCVI/CVBS support lets owners retain existing cameras while adding AcuSense and facial detection.
- SME premises across Kenya needing remote oversight – Hik-Connect and DDNS give business owners phone-based access to footage and alerts without on-site IT support
