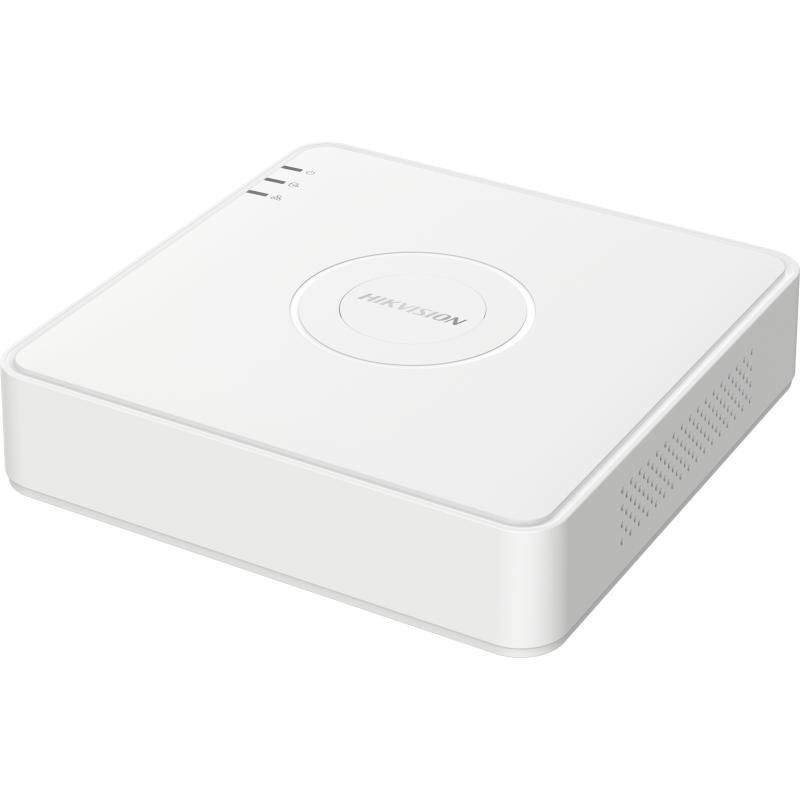

Hikvision iDS-7104HQHI-M1/S – 4-ch 1080P Mini 1U H.265 AcuSense DVR
The Hikvision iDS-7104HQHI-M1/S is a 4-channel Turbo HD digital video recorder built for small sites that need reliable, budget-friendly recording. Specifically, it accepts HDTVI, AHD, HDCVI, and CVBS analog inputs, plus up to 6 IP camera channels when Enhanced IP mode is active. As a result, installers can mix analog cameras with a few IP cameras on a single recorder without buying separate hardware.
Meanwhile, onboard AcuSense technology brings deep-learning motion detection 2.0 to every analog channel by default. This means the DVR classifies humans and vehicles instead of flagging every moving object, which in turn cuts false alerts triggered by leaves, insects, or passing shadows. In addition, up to two channels support perimeter protection, giving line-crossing and intrusion alerts around fenced boundaries.
Furthermore, the DVR records at up to 4 MP Lite resolution using efficient H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 compression, which reduces storage consumption considerably. On top of that, a single SATA interface supports drives up to 10 TB, and Hik-Connect enables remote viewing from a phone or tablet without complex network configuration.
Technical Specifications
Recording & Compression
| Specification | Details |
|---|---|
| Model | iDS-7104HQHI-M1/S |
| Recorder Type | 4-ch 1080P Mini 1U H.265 AcuSense DVR |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 3K Lite/5 MP Lite/4 MP Lite/1080p/720p/VGA/WD1/4CIF/CIF (or Lite equivalents when 1080p Lite mode is enabled) |
| Frame Rate (Main Stream) | Up to 25 fps (P)/30 fps (N) depending on stream resolution; see note below |
| Frame Rate (Sub-Stream) | WD1/4CIF @ 12 fps; CIF @ 25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 6 Mbps |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Smart Detection | Motion Detection 2.0 with human/vehicle classification (all analog channels); Perimeter Protection up to 2 channels |
| Facial Detection | Face picture detection and search |
Note: Motion Detection 2.0 and Perimeter Protection cannot run simultaneously; enabling one disables the other.
Video & Audio I/O
| Specification | Details |
|---|---|
| Analog Video Input | 4-ch, BNC (1.0 Vp-p, 75 Ω), coaxitron-compatible |
| HDTVI Input | Up to 3K (2960 × 1665) @ 20 fps |
| AHD Input | Up to 5 MP (2560 × 1944) @ 20 fps |
| HDCVI Input | Up to 5 MP (2592 × 1944) @ 20 fps |
| CVBS Input | Supported |
| IP Video Input | 1-ch (up to 5-ch); Enhanced IP mode: 2-ch (up to 6-ch), each up to 4 Mbps, up to 6 MP |
| HDMI Output | 1-ch, up to 1920 × 1080 @ 60 Hz |
| VGA Output | 1-ch, up to 1920 × 1080 @ 60 Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 KΩ); 4-ch via coaxial cable |
| Audio Output | 1-ch RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch RCA (2.0 Vp-p, 1 KΩ), using the first audio input |
| Synchronous Playback | 4-ch |
Network & Storage
| Specification | Details |
|---|---|
| Network Interface | 1 × RJ45, 10/100 Mbps self-adaptive |
| Total Bandwidth | 72 Mbps |
| Remote Connections | Up to 32 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Wi-Fi | Connectable via USB Wi-Fi dongle |
| Storage Interface | 1 × SATA, up to 10 TB per disk |
| USB Interface | 2 × USB 2.0 (rear panel) |
| Alarm In/Out | N/A |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | ≤ 8 W (without HDD) |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 10% to 90% |
| Dimensions (W × D × H) | 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 in) |
| Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
Who This DVR Suits Best
- Small shops and offices upgrading from older analog systems – its 4-in-1 HDTVI/AHD/HDCVI/CVBS support lets owners keep existing cameras while gaining AcuSense false-alarm filtering.
- Compact residential or SME installations – the mini 1U form factor and single-bay 10 TB storage suit tight equipment rooms in homes, salons, and small retail units across Kenya.
- Sites needing remote monitoring without an IT team – Hik-Connect and DDNS give owners phone-based access to footage, which is ideal for landlords or shop owners checking premises after hours.
