Hikvision DS-KIS608-P – IP Video Intercom Kit
The Hikvision DS-KIS608-P Kenya listing covers a complete IP video intercom kit with one outdoor door station and one 7-inch indoor station. Specifically, the door station uses a 2 MP camera with a 129° horizontal field of view, so residents can see visitors clearly. As a result, a home or office gets video calls, two-way audio, and remote door release from one box.
Meanwhile, visitors press a single call button to ring the indoor station. In addition, owners can answer and unlock from their phone through the Hik-Connect app. The door station’s IR night vision (up to 2.5 m) and true WDR keep faces visible at night and against bright backgrounds.
Furthermore, both units connect over Ethernet or 2.4 GHz Wi-Fi, and both accept standard PoE (IEEE 802.3af) or 12 VDC. Hikvision includes two PSUs and a 32 GB TF card in the kit, so it works out of the box without a PoE switch. For instance, the indoor station’s TF slot takes cards up to 128 GB for local storage.
Notably, the door station’s IP65 housing operates from -40°C to 53°C and mounts on the surface or flush with the wall. Its lock relay drives a gate or door lock directly. For extra indoor stations, locks, and PoE switches to pair with it, browse our full Hikvision catalogue.
Technical Specifications

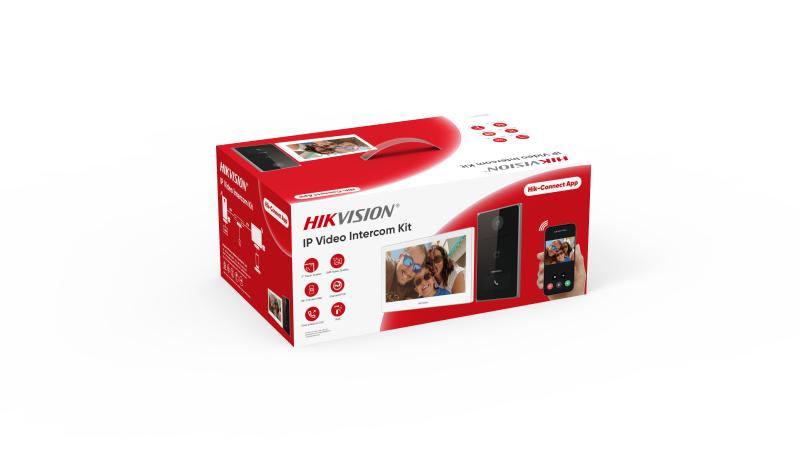

Kit Contents
| Specification | Details |
|---|---|
| Model | DS-KIS608-P |
| Product Type | IP Video Intercom Kit |
| Door Station | 1 |
| Indoor Station | 1 |
| PSU | 2 |
| TF Card | 1 × 32 GB |
| Power Adapter | Included |
Door Station – System, Video & Audio
| Specification | Details |
|---|---|
| Operating System | Linux |
| Flash / RAM | 32 MB / 256 MB |
| Camera | 2 MP HD |
| Night Vision | Low-illumination IR supplement, 2.5 m |
| Field of View | Horizontal 129°, vertical 75° |
| WDR | True WDR |
| Backlight Compensation | Supported |
| Digital Noise Reduction | Supported |
| Video Compression | H.264 |
| Resolution (PAL) | Main: 1080p@25fps, 720p@25fps; Sub: 720p@25fps, 480p@25fps |
| Resolution (NTSC) | Main: 1080p@30fps, 720p@30fps; Sub: 720p@30fps, 480p@30fps |
| Motion Detection | Supported |
| Flash-Avoid Frequency | 50 Hz, 60 Hz |
| Audio Input / Output | 1 built-in omnidirectional microphone / 1 built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Compression | G.722.1, OPUS, G.711U, G.711A, G.726, AAC_LC, AAC_LD; 16/32/64 Kbps |
| Audio Intercom | Two-way |
Door Station – Network, Interfaces & General
| Specification | Details |
|---|---|
| Network Protocols | TCP/IP, SIP, RTSP |
| Wi-Fi | 2.4 GHz, IEEE 802.11b/g/n |
| Network Interface | 1 × RJ-45, 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| Alarm Input | 4 |
| Lock Control | 1 relay, max. 30 VDC 2 A |
| Door Contact Input | 1 |
| Tamper | 1 |
| External Loudspeaker Output | 1 (reserved) |
| TF Card Slot | 1 (reserved) |
| Indicator | 2 |
| Power Supply | IEEE 802.3af standard PoE, or 12 VDC |
| Power Consumption | < 10 W |
| Working Temperature | -40°C to 53°C (-40°F to 127.4°F) |
| Working Humidity | 10% to 95% |
| Protection Level | IP65 |
| Installation | Surface mounting, flush mounting |
| Dimensions | 181.6 mm × 103.6 mm × 29.5 mm |
Indoor Station
| Specification | Details |
|---|---|
| Operating System | Linux |
| Memory / Flash | 128 MB / 32 MB |
| Display | 7-inch colour TFT, 1024 × 600, capacitive touch |
| Audio Input / Output | 1 built-in omnidirectional microphone / 1 built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Compression | G.711U, 64 Kbps |
| Wired Network | 1 × RJ-45, 10/100 Mbps self-adaptive |
| Wireless Network | 2.4 GHz, IEEE 802.11b/g/n |
| Protocols | TCP/IP, SIP, RTSP |
| RS-485 | 1 (half duplex) |
| Alarm Input | 8-ch |
| Relay Output | 2 |
| TF Card | Up to 128 GB |
| Power Supply | 12 VDC / 1 A, or IEEE 802.3af standard PoE |
| Power Consumption | ≤ 5 W |
| Working Temperature | -10°C to 50°C (14°F to 122°F) |
| Working Humidity | 10% to 90% |
| Dimensions (L × W × H) | 175 mm × 113.5 mm × 21 mm (6.9″ × 4.5″ × 0.83″) |
