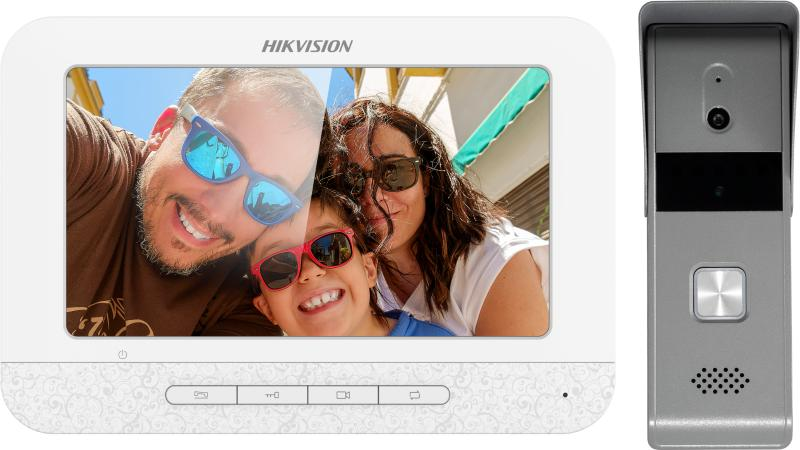

Hikvision DS-KIS203T – 4-Wire Analog Villa Video Intercom Kit
The Hikvision DS-KIS203T Kenya listing covers a 4-wire analog video intercom kit for a single house or villa. Specifically, it pairs a waterproof DS-KB2421T-IM door station with a DS-KH2220 7-inch indoor monitor. As a result, residents can see and speak to visitors at the gate without any network setup.
Meanwhile, the door station’s 1/2.7″ CMOS camera captures each caller, and its IP65 rating handles rain and dust at an exposed gate. In addition, visitors use a single call button, so the system stays simple for everyone in the household. The door station’s relay output releases a gate or door lock directly.
Furthermore, the kit uses a plain 4-wire connection for video, audio, power, and ground. Because of this, it works without Wi-Fi, an internet connection, or a PoE switch. Hikvision includes a 5 m 4-wire cable and a power adapter, so installers can fit it straight from the box.
Notably, the indoor monitor has a 7-inch colour TFT screen (800 × 480) with noise suppression and echo cancellation for clear calls. Both units run on 12 VDC and draw 5 W or less. For locks, extra cable, and other intercom products to pair with it, browse our full Hikvision catalogue.
Technical Specifications
Kit Contents
| Specification | Details |
|---|---|
| Model | DS-KIS203T |
| Product Type | Villa Analog Kit (4-wire) |
| Door Station | DS-KB2421T-IM |
| Indoor Station | DS-KH2220 |
| Cable | 5 m 4-wire cable |
| Power Supply | European PSU adapter included (other plug standards on request) |
Door Station (DS-KB2421T-IM)
| Specification | Details |
|---|---|
| Image Sensor | 1/2.7″ CMOS |
| Resolution | 1920 × 1080 |
| Stream Resolution | 960 × 576 |
| Field of View | Horizontal 66.2°, vertical 37.2° |
| Audio | Built-in omnidirectional microphone and loudspeaker |
| Call Button | 1 |
| Relay Output | 1 |
| Wiring | 4-wire: 1 video, 1 audio input/output, 1 power, 1 ground |
| Power Supply | 12 VDC |
| Power Consumption | Max. 5 W |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | 10% to 90% |
| Protection Level | IP65 |
| Dimensions | 128 mm × 42 mm × 24.8 mm |
Indoor Station (DS-KH2220)
| Specification | Details |
|---|---|
| Display | 7-inch colour TFT LCD |
| Resolution | 800 × 480 |
| Operation Method | Physical buttons |
| Audio | Built-in omnidirectional microphone and loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
| Power Supply | 12 VDC |
| Power Consumption | ≤ 5 W |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | 10% to 90% |
| Dimensions | 195.8 mm × 132.8 mm × 18.39 mm (7.7″ × 5.2″ × 0.7″) |
