Hikvision DS-KIS202 – 4-Wire Analog Video Intercom Kit

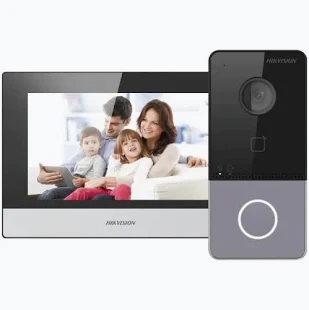

The Hikvision DS-KIS202 Kenya listing covers a 4-wire analog video intercom kit that pairs an aluminium-alloy DS-KB2411-IM door station with a DS-KH2220 7-inch indoor monitor. Specifically, a single 4-wire cable carries video, audio, power, and ground between the two units. As a result, residents see and talk to visitors without any network, router, or app setup.
Meanwhile, the door station uses a 1/4″ CMOS pinhole camera at 720 × 576, 25 fps. In addition, its photosensitive IR light switches on automatically after dark and reaches 2 m. Visitors press a one-touch call button, and a relay output lets the resident release the gate or door lock.
Furthermore, the indoor monitor has a 7-inch colour TFT screen (800 × 480) with physical buttons. It also shows video from an external analog camera, so homeowners can check the driveway from the same screen. Noise suppression and echo cancellation keep calls clear on both units.
Notably, the door station operates from -30°C to 60°C and draws 3 W at most. The monitor runs on 12 VDC and uses 5 W or less. For locks, cable, and analog cameras to pair with it, browse our full Hikvision catalogue.
Technical Specifications
Kit Contents
| Specification | Details |
|---|---|
| Model | DS-KIS202 |
| Product Type | 4-Wire Analog Video Door Phone Kit |
| Door Station | DS-KB2411-IM |
| Indoor Station | DS-KH2220 |
Door Station (DS-KB2411-IM)
| Specification | Details |
|---|---|
| Camera | 1/4″ CMOS pinhole camera |
| Resolution | 720 × 576 |
| Frame Rate | PAL: 25 fps |
| IR Supplement | Photosensitive, range 2 m |
| Audio Input / Output | Built-in omnidirectional microphone / built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
| Call Button | One-touch calling |
| Four-Wire Interface | 1 (video input, audio input/output, power, ground) |
| Relay Output | 1 |
| Material | Aluminium alloy |
| Power Consumption | Max. 3 W |
| Working Temperature | -30°C to 60°C (-22°F to 140°F) |
| Working Humidity | 10% to 90% |
| Dimensions (L × W × H) | 128 mm × 42 mm × 24.8 mm (5.0″ × 1.7″ × 0.9″) |
Indoor Station (DS-KH2220)
| Specification | Details |
|---|---|
| Display | 7-inch colour TFT LCD |
| Resolution | 800 × 480 |
| Operation Method | Physical buttons |
| Audio Input / Output | Built-in omnidirectional microphone / built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
| Four-Wire Interfaces | 4 (video input, audio input/output, power, ground) |
| Functions | Hands-free video intercom; door station and external analog camera monitoring; remote unlocking |
| Power Supply | 12 VDC |
| Power Consumption | ≤ 5 W |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | 10% to 90% |
| Dimensions (L × W × H) | 195.8 mm × 132.8 mm × 18.39 mm (7.7″ × 5.2″ × 0.7″) |
