Hikvision DS-KIS603-P(C) – IP Video Intercom Kit for Villas and Houses

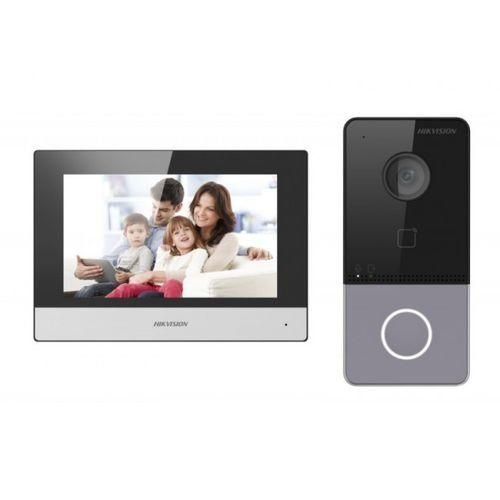

The Hikvision DS-KIS603-P(C) Kenya listing covers an IP video intercom bundle built for a single villa or house. Specifically, it pairs the compact DS-KV6113-WPE1(C) door station with the DS-KH6320-WTE1 7-inch indoor station. As a result, residents see, hear, and speak to visitors at the gate from inside the home.
Meanwhile, the door station’s 2 MP camera covers a 131° horizontal field of view, wide enough to show visitors standing to one side. In addition, IR night vision up to 3 m and true WDR keep faces clear after dark and against bright skies. Visitors simply press the single call button to ring the house.
Furthermore, the indoor station uses a 1024 × 600 capacitive touchscreen and connects by Ethernet or Wi-Fi. Owners can also answer calls from their phone with the Hik-Connect app. For instance, a homeowner at work can see who is at the gate and speak to a delivery rider.
Notably, both units accept standard PoE (IEEE 802.3af) or 12 VDC, and Hikvision includes two PSUs and a power adapter in the box. The slim 138 × 65 mm door station carries an IP65 rating and works from -40°C to 53°C. For door locks, PoE switches, and extra indoor stations to pair with it, browse our full Hikvision catalogue.
Technical Specifications
Kit Contents
| Specification | Details |
|---|---|
| Model | DS-KIS603-P(C) |
| Product Type | IP Video Intercom Network Bundle |
| Door Station | DS-KV6113-WPE1(C) × 1 |
| Indoor Station | DS-KH6320-WTE1 × 1 |
| PSU | 2 |
| Power Adapter | Included |
| Optional Accessories | DS-KABV6113-RS rain shield, DS-KABV6113-A wall bracket, DS-KABH6320-T table bracket |
Door Station (DS-KV6113-WPE1(C)) – System, Video & Audio
| Specification | Details |
|---|---|
| Operating System | Embedded Linux |
| Flash / RAM | 32 MB / 256 MB |
| Camera | 2 MP HD |
| Night Vision | Low-illumination IR supplement, 3 m |
| Field of View | Horizontal 131°, vertical 78° |
| WDR | True WDR |
| Backlight Compensation | Supported |
| Digital Noise Reduction | Supported |
| Video Compression | H.264 |
| Stream | Main: 1080p@30fps, 720p@25fps; Sub: D1@25fps |
| Motion Detection | Supported |
| Flash-Avoid Frequency | 50 Hz, 60 Hz |
| Audio Input / Output | Built-in omnidirectional microphone / built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Compression | G.711U, 64 Kbps |
| Audio Intercom | Two-way |
Door Station (DS-KV6113-WPE1(C)) – Network, Interfaces & General
| Specification | Details |
|---|---|
| Network Protocols | TCP/IP, RTSP |
| Wired Network | 10/100 Mbps Ethernet |
| RS-485 | 1 |
| Alarm Input | 4 |
| Debugging Port | 1 |
| Grounding | 1 |
| Tamper Switch | 1 |
| Indicator | 2 |
| Power Supply | IEEE 802.3af standard PoE, or 12 VDC |
| Power Consumption | < 10 W |
| Working Temperature | -40°C to 53°C (-40°F to 127.4°F) |
| Working Humidity | 10% to 95% |
| Protection Level | IP65 |
| Installation | Surface mounting |
| Dimensions | 138 mm × 65 mm × 27 mm |
Indoor Station (DS-KH6320-WTE1)
| Specification | Details |
|---|---|
| Operating System | Embedded Linux |
| Memory / Flash | 128 MB / 32 MB |
| Display | 7-inch colour TFT, 1024 × 600, capacitive touch |
| Audio Input / Output | Built-in omnidirectional microphone / built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
| Audio Compression | G.711U, 64 Kbps |
| Wired Network | 1 × RJ-45, 10/100 Mbps self-adaptive |
| Wireless Network | Wi-Fi 802.11b/g/n |
| Protocols | TCP/IP, SIP, RTSP |
| RS-485 | 1 |
| Alarm Input | 8-ch |
| Relay Output | 2 |
| TF Card | Up to 32 GB (SD 2.0 or lower) |
| Power Consumption | ≤ 6 W |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | 10% to 90% |
| Dimensions (L × W × H) | 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″) |
