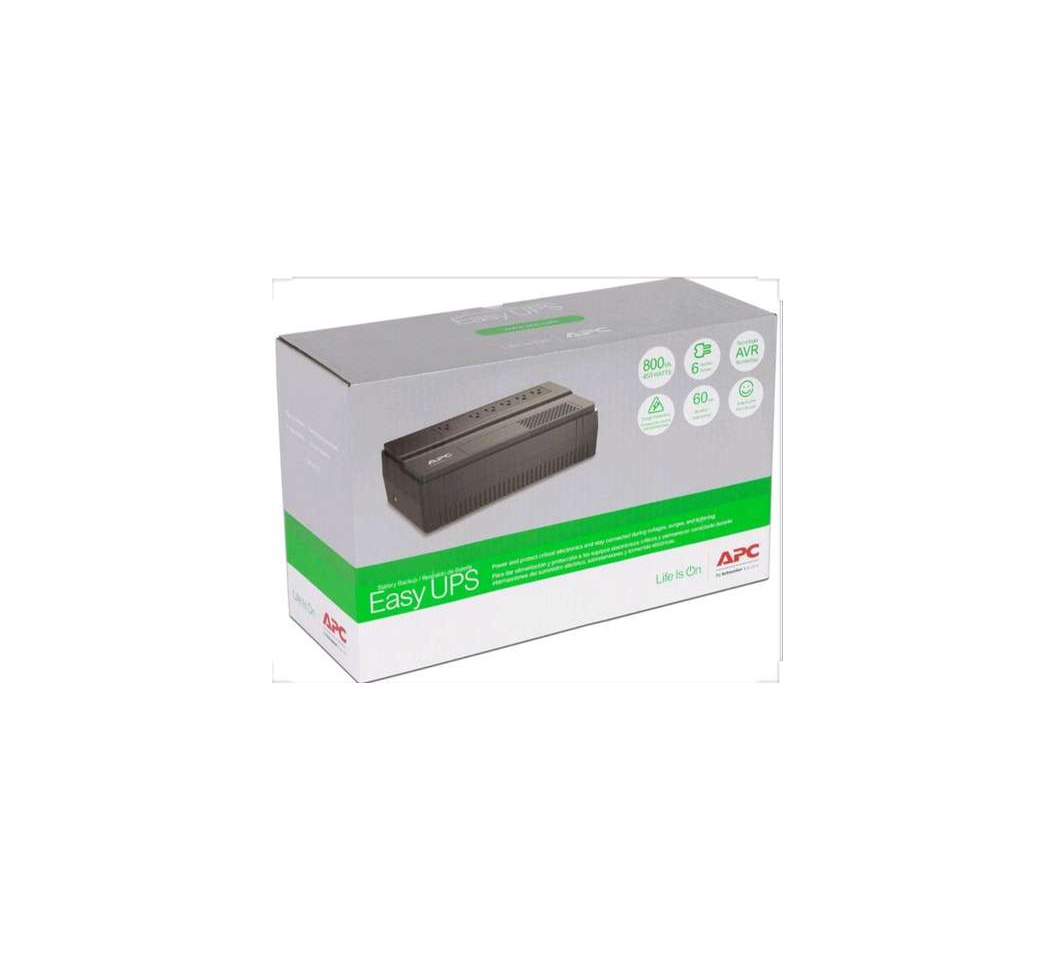

APC 800VA Back-UPS (BV800I-MSX)

The APC Back-UPS BV800I-MSX provides 800VA/450W of essential line-interactive power protection for home offices, personal computers, and small network equipment. This compact UPS combines battery backup with surge protection to safeguard electronics from power outages and voltage spikes. Designed for cost-conscious users seeking reliable basic protection, the BV800I-MSX offers straightforward operation and adequate runtime for orderly system shutdowns.

Technical Specifications

Power Capacity

• Output Power: 450 Watts / 800 VA
• Output Voltage: 230V nominal
• Topology: Line-interactive with AVR
• Waveform: Stepped approximation to sine wave
• Transfer Time: 6-10ms typical

Runtime Performance

• Typical Runtime at Full Load: 2.5 minutes (internal batteries)
• Typical Runtime at Half Load: 8 minutes (internal batteries)
• Battery Type: Maintenance-free sealed lead-acid (VRLA)
• Recharge Time: 8 hours to 90% capacity
• Battery Expandability: Not supported (internal batteries only)

Physical Specifications

• Form Factor: Tower (non-convertible)
• Dimensions: 277mm H × 100mm W × 340mm D
• Weight: 6.5 kg (with internal batteries)
• Operating Temperature: 0°C to 40°C
• Noise Level: <40 dBA at 1 meter

Connectivity & Management

• Output Receptacles: 4× IEC C13 (2 battery backup, 2 surge-only)
• Input Connection: Fixed input power cord with standard plug
• Communication Ports: None (basic model)
• LED Indicators: Power on, battery backup, replace battery
• Audible Alarms: On-battery alarm, low battery warning

Protection Features

• Input Voltage Range: 176-282V (with AVR boost/trim)
• Frequency Regulation: 50/60 Hz auto-sensing
• Surge Energy Rating: 400 joules
• Overload Protection: Circuit breaker protection
• EMI/RFI Noise Filtering: Basic filtering included

Environmental & Compliance

• Certifications: CE, RoHS compliant
• Warranty: 2 years including internal batteries
• Operating Humidity: 0-95% non-condensing
• Replaceable Battery: User-replaceable battery (RBC17)

Use Cases & Applications

Home Office Computing

Desktop Computer Protection: The BV800I-MSX provides essential backup power for home office desktop computers and monitors during utility outages. The 450W capacity supports typical desktop configurations with single monitor. Meanwhile, the 8-minute runtime at half load provides adequate time to save documents and shut down properly.

Work-From-Home Setups: Remote workers benefit from the basic power protection for computers and networking equipment supporting video conferencing and remote access. For instance, the automatic voltage regulation prevents unexpected reboots during online meetings caused by voltage fluctuations. This maintains productivity and prevents work disruption.

Student Computers: Students using desktop computers for online learning, assignments, and research require protection from power interruptions. The compact design fits easily in dormitory rooms or study areas. Additionally, the battery backup prevents loss of unsaved schoolwork during brief power outages.

Home Networking

Router and Modem Protection: Home internet equipment including cable modems, DSL routers, and wireless routers benefit from continuous power during outages. The Back-UPS maintains internet connectivity during brief utility interruptions. This prevents dropped video calls or interrupted file transfers common during power fluctuations.

Smart Home Hubs: Central smart home controllers, home automation hubs, and network-attached storage devices require consistent power for continuous operation. For instance, the battery backup maintains smart home functionality during power events. This ensures security systems, climate controls, and automation routines continue operating.

Gaming Console Networks: Gaming routers, network switches, and streaming devices benefit from surge protection and battery backup. The surge-only outlets protect peripherals while battery outlets prioritize critical networking equipment. This prevents game progress loss or online match disconnections during power interruptions.

Small Business Equipment

Point-of-Sale Terminals: Basic POS computers, receipt printers, and cash drawer controllers in small retail environments need simple power protection. The BV800I-MSX prevents transaction loss during brief power interruptions common in retail spaces. Meanwhile, the compact footprint fits easily in limited counter or under-counter areas.

Reception Desk Computers: Front desk computers, appointment scheduling systems, and visitor management workstations require reliable basic protection. The automatic voltage regulation maintains system stability during building power fluctuations. Additionally, the LED indicators provide at-a-glance status verification for reception staff.

Small Office Workstations: Individual workstations running business applications, email clients, and productivity software benefit from affordable power protection. For instance, the battery backup provides time to save work during power interruptions. This prevents data loss and maintains work continuity in small office environments.

Home Entertainment

Media Center Protection: Home theater PCs, streaming media servers, and entertainment centers benefit from surge protection for expensive electronics. The surge-only outlets protect audio/video equipment while battery outlets prioritize critical components. This prevents equipment damage from power surges without requiring battery backup for all devices.

Gaming Systems: Desktop gaming computers and gaming peripherals require protection from power interruptions that would disconnect online gaming sessions. The stepped approximation waveform provides adequate protection for gaming PC power supplies. Meanwhile, the battery backup prevents progress loss during competitive online matches.

Personal Computing

Desktop Workstations: Personal computers used for content creation, photo editing, or general computing benefit from basic backup protection. The 450W capacity supports typical consumer desktop configurations. Additionally, the automatic voltage regulation protects computer components from voltage fluctuations that could cause hardware damage.

Peripheral Equipment: Printers, scanners, and external storage devices connected to home computers gain surge protection from the Back-UPS. The split receptacle design allows users to prioritize which devices receive battery backup. This optimizes battery runtime for essential equipment while protecting all connected devices from surges.

Educational Institutions

Computer Lab Stations: Individual student workstations in computer labs benefit from affordable per-station power protection. The BV800I-MSX prevents work loss when students are completing assignments or taking online assessments. Meanwhile, the simple LED interface requires no technical expertise for basic operation monitoring.

Teacher Workstations: Classroom computers used for lesson planning, grading, and attendance tracking require basic power protection. For instance, the battery backup provides time to save gradebook data during power interruptions. This prevents loss of student records and maintains administrative workflow continuity.
