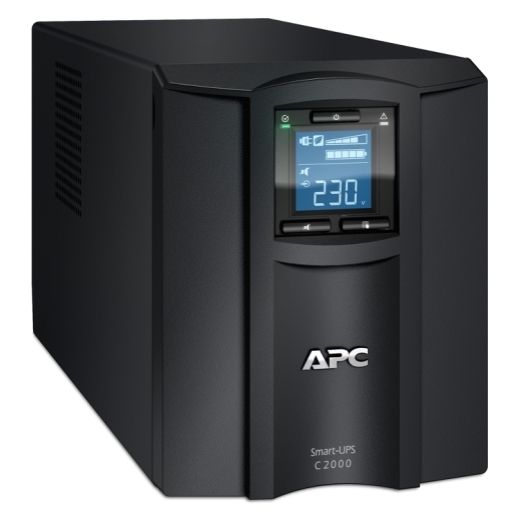

APC 2000VA Smart-UPS (SMC2000I)

The APC Smart-UPS SMC2000I provides 2000VA/1300W of intelligent line-interactive power protection for servers, network equipment, and business-critical workstations. This tower-format UPS combines automatic voltage regulation with smart battery management to deliver reliable backup power. Designed for IT professionals managing distributed infrastructure, the SMC2000I offers comprehensive monitoring capabilities and flexible configuration options.

Technical Specifications

Power Capacity

• Output Power: 1300 Watts / 2000 VA
• Output Voltage: 230V nominal (adjustable ±10%)
• Topology: Line-interactive with AVR boost and trim
• Waveform: Pure sine wave output (simulated on battery)
• Efficiency: Up to 98% in Green Mode, 95% in normal operation

Runtime Performance

• Typical Runtime at Full Load: 4.2 minutes (internal batteries)
• Typical Runtime at Half Load: 14 minutes (internal batteries)
• Battery Type: Maintenance-free sealed lead-acid (VRLA)
• Recharge Time: 3 hours to 90% capacity
• Battery Expandability: Not supported (internal batteries only)

Physical Specifications

• Form Factor: Tower (non-convertible)
• Dimensions: 390mm H × 130mm W × 381mm D
• Weight: 25.9 kg (with internal batteries)
• Operating Temperature: 0°C to 40°C
• Noise Level: <45 dBA at 1 meter

Connectivity & Management

• Output Receptacles: 8× IEC C13 (4 battery backup, 4 surge-only)
• Input Connection: IEC C14 inlet with detachable power cord
• Communication Ports: USB, serial (DB-9), SmartSlot for optional network cards
• Management Software: PowerChute Business Edition included
• Cloud Services: APC SmartConnect compatible (optional activation)

Protection Features

• Input Voltage Range: 160-286V (with AVR boost/trim)
• Frequency Regulation: 50/60 Hz auto-sensing
• Surge Energy Rating: 480 joules
• Overload Protection: Circuit breaker protection
• Cold-Start Capability: Starts up without utility power present

Environmental & Compliance

• Certifications: CE, cUL, TÜV, EAC, RCM
• MTBF: 386,000 hours (proven reliability)
• Warranty: 3 years including internal batteries
• Operating Humidity: 0-95% non-condensing
• Audible Noise Management: Configurable alarm settings

Use Cases & Applications

IT Infrastructure Protection

Small Server Protection: The SMC2000I delivers adequate backup power for single rack-mount servers, tower servers, or workstation-class machines. The 1300W capacity supports typical single-socket server configurations with attached storage. Meanwhile, the battery backup receptacles protect critical components separately from peripherals on surge-only outlets.

Network Closet Infrastructure: IT departments deploy this Smart-UPS to protect switches, routers, and wireless controllers in distributed network closets. Additionally, the split receptacle configuration allows battery protection for core networking gear. Surge-only outlets handle secondary devices like IP cameras or access controllers.

Workstation Power Continuity: Engineering workstations, CAD terminals, and high-performance desktops benefit from clean power delivery and backup protection. However, the pure sine wave output ensures compatibility with active power factor correction (PFC) power supplies found in modern professional workstations.

Business Operations

Retail and Hospitality Systems: Point-of-sale terminals, payment processors, and reservation systems require uninterrupted operation to prevent transaction loss. For instance, the automatic voltage regulation maintains stable power during peak demand periods when building electrical systems experience voltage sag. This prevents unexpected system reboots during critical transactions.

Small Office IT Equipment: Businesses consolidating servers, NAS storage, and network equipment in small IT spaces benefit from the SMC2000I’s compact footprint. The SmartConnect cloud monitoring enables remote oversight across multiple office locations. This eliminates the need for deploying dedicated network management infrastructure.

Communications & Security

Telecommunications Equipment: VoIP phone systems, SIP trunking gateways, and unified communications appliances depend on continuous power availability. The line-interactive topology with AVR provides adequate protection for these moderate-power systems. Meanwhile, the management software enables scheduled shutdowns during extended outages to preserve critical voicemail and configuration data.

Security and Access Control: Network video recorders (NVRs), security server appliances, and access control panels require reliable backup power for processing door locks and camera feeds. The battery backup outlets support recording equipment and control systems. Surge-only outlets protect lower-priority devices like monitors and auxiliary equipment.
