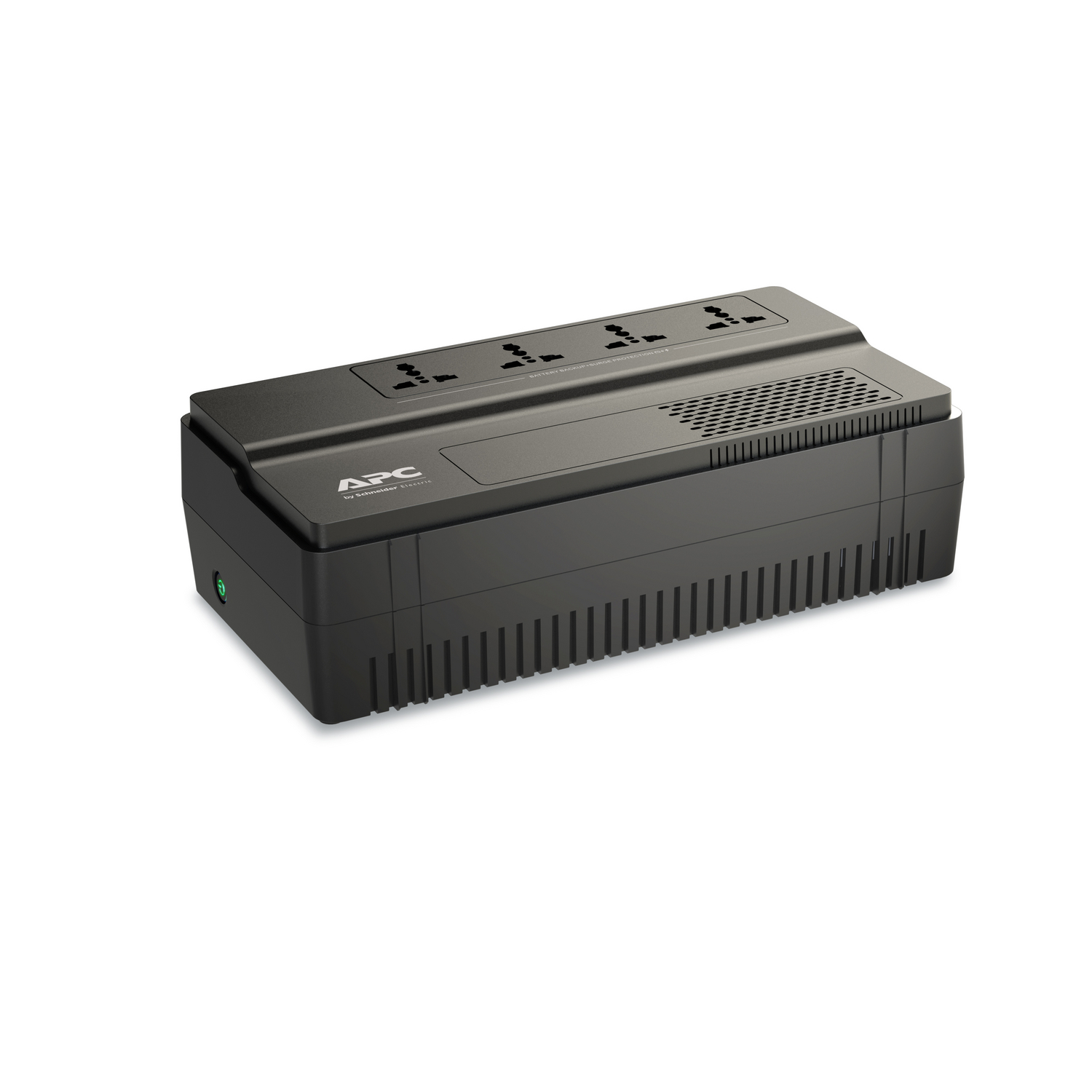

APC 1000VA Back-UPS (BV1000I-MSX)

The APC Back-UPS BV1000I-MSX provides 1000VA/600W of essential line-interactive power protection for home offices, workstations, and small business computers. This compact UPS combines battery backup with surge protection to safeguard electronics from power outages and voltage spikes. Designed for users seeking reliable basic protection with increased capacity, the BV1000I-MSX offers straightforward operation and adequate runtime for multiple devices or higher-power systems.

Technical Specifications

Power Capacity

• Output Power: 600 Watts / 1000 VA
• Output Voltage: 230V nominal
• Topology: Line-interactive with AVR
• Waveform: Stepped approximation to sine wave
• Transfer Time: 6-10ms typical

Runtime Performance

• Typical Runtime at Full Load: 2.8 minutes (internal batteries)
• Typical Runtime at Half Load: 10 minutes (internal batteries)
• Battery Type: Maintenance-free sealed lead-acid (VRLA)
• Recharge Time: 8 hours to 90% capacity
• Battery Expandability: Not supported (internal batteries only)

Physical Specifications

• Form Factor: Tower (non-convertible)
• Dimensions: 305mm H × 100mm W × 340mm D
• Weight: 8.2 kg (with internal batteries)
• Operating Temperature: 0°C to 40°C
• Noise Level: <40 dBA at 1 meter

Connectivity & Management

• Output Receptacles: 4× IEC C13 (2 battery backup, 2 surge-only)
• Input Connection: Fixed input power cord with standard plug
• Communication Ports: None (basic model)
• LED Indicators: Power on, battery backup, replace battery
• Audible Alarms: On-battery alarm, low battery warning

Protection Features

• Input Voltage Range: 176-282V (with AVR boost/trim)
• Frequency Regulation: 50/60 Hz auto-sensing
• Surge Energy Rating: 490 joules
• Overload Protection: Circuit breaker protection
• EMI/RFI Noise Filtering: Basic filtering included

Environmental & Compliance

• Certifications: CE, RoHS compliant
• Warranty: 2 years including internal batteries
• Operating Humidity: 0-95% non-condensing
• Replaceable Battery: User-replaceable battery (RBC110)

Use Cases & Applications

Home Office Computing

Desktop Workstation Protection: The BV1000I-MSX provides essential backup power for home office workstations with multiple monitors and peripherals. The 600W capacity supports typical desktop configurations with dual monitors and external storage. Meanwhile, the 10-minute runtime at half load provides adequate time to save documents and shut down systems properly.

Professional Work-From-Home: Remote workers running business applications, video conferencing software, and productivity tools benefit from reliable power protection. For instance, the automatic voltage regulation prevents unexpected reboots during important client presentations or online meetings. This maintains professional credibility and prevents work disruption.

Content Creator Systems: Desktop computers used for photo editing, video production, or graphic design require protection from power interruptions. The enhanced capacity supports systems with dedicated graphics cards and multiple displays. Additionally, the battery backup prevents loss of unsaved creative work during brief power outages.

Small Business Computing

Office Workstations: Business computers running accounting software, customer management systems, or productivity applications need reliable basic protection. The BV1000I-MSX prevents data loss during power events that could corrupt financial records or client information. Meanwhile, the compact footprint fits easily in standard office desk configurations.

Point-of-Sale Systems: Small retail POS computers, receipt printers, and barcode scanners benefit from enhanced power protection. The 600W capacity supports complete POS terminal configurations including touch screen displays. For instance, the battery backup prevents transaction loss during brief power interruptions in retail environments.

Reception and Front Desk: Front office computers managing appointments, visitor logs, and communication systems require consistent power delivery. The automatic voltage regulation maintains system stability during building power fluctuations. Additionally, the LED indicators provide at-a-glance status verification for administrative staff.

Home Networking & Smart Home

Network Infrastructure: Home routers, cable modems, network switches, and wireless access points benefit from continuous power during outages. The Back-UPS maintains internet connectivity during brief utility interruptions. This prevents dropped video calls, interrupted file transfers, or disconnected smart home devices.

Smart Home Hub Systems: Central smart home controllers, home automation servers, and security system hubs require consistent power for continuous operation. For instance, the battery backup maintains smart home functionality during power events. This ensures security cameras, door locks, and automation routines continue operating without interruption.

Media Server Protection: Network-attached storage devices, media servers, and home cloud storage systems need protection from unexpected shutdowns. The 600W capacity supports NAS devices with multiple hard drives. Meanwhile, the battery backup prevents data corruption during write operations interrupted by power loss.

Gaming & Entertainment

Gaming Computer Systems: High-performance gaming desktops with dedicated graphics cards require adequate power protection during online gaming sessions. The 600W capacity supports mid-range gaming configurations with modern components. Additionally, the battery backup prevents progress loss or rank penalties from disconnections during competitive matches.

Streaming Equipment: Content creators running streaming computers, capture cards, and broadcast equipment benefit from reliable power protection. For instance, the battery backup prevents stream interruptions during live broadcasts. This maintains viewer engagement and prevents loss of live content during power fluctuations.

Home Theater Systems: Media center PCs, gaming consoles, and entertainment servers gain surge protection from the Back-UPS. The split receptacle design allows users to prioritize critical equipment on battery backup. This optimizes battery runtime for essential components while protecting all connected devices from surges.

Educational Use

Student Computer Systems: Students using desktop computers for online learning, research, and assignments require protection from power interruptions. The BV1000I-MSX prevents loss of homework, papers, or research materials during power outages. Meanwhile, the compact design fits easily in dormitory rooms or shared study spaces.

Distance Learning Setups: Remote learning workstations supporting video conferencing, virtual classrooms, and educational software need consistent power delivery. The automatic voltage regulation prevents unexpected reboots that would disconnect students from online classes. Additionally, the battery backup maintains connectivity during critical examinations or presentations.

Professional Services

Accounting Workstations: Desktop computers running financial software, tax preparation applications, or bookkeeping systems require reliable power protection. For instance, the battery backup provides time to save client financial data during power interruptions. This prevents loss of billable work and maintains data integrity for sensitive financial records.

Legal Document Systems: Computers used for legal research, document preparation, or case management benefit from basic power protection. The 600W capacity supports workstations with multiple displays for document review. Meanwhile, the automatic voltage regulation protects against power quality issues that could cause application crashes.

Medical Office Computers: Practice management systems, electronic health records workstations, and billing computers need consistent power delivery. The battery backup prevents data loss during patient record updates or appointment scheduling. Additionally, the surge protection safeguards expensive medical office IT equipment from damage.

Technical & Engineering

CAD Workstation Support: Entry-level engineering workstations running CAD software or technical documentation tools require power protection. The enhanced capacity supports workstations with professional graphics cards. For instance, the battery backup prevents loss of design work during lengthy drawing sessions or rendering operations.

Laboratory Computers: Research computers, data acquisition systems, and laboratory information management workstations benefit from reliable power delivery. The automatic voltage regulation protects sensitive equipment from power quality variations. Meanwhile, the battery backup maintains system operation during brief utility interruptions that could corrupt experimental data.
