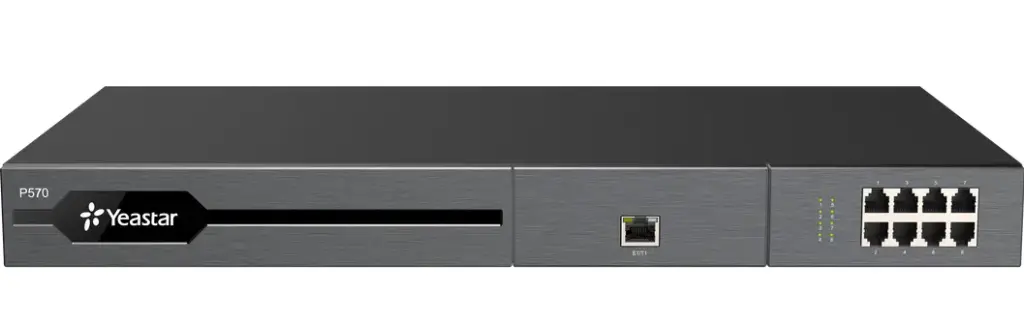

Yeastar P570 IP PBX: High-Capacity Enterprise Communication Platform

The Yeastar P570 IP PBX delivers robust communication infrastructure for large organizations requiring up to 2000 users and 500 concurrent calls. This enterprise-grade phone system combines unified communications, advanced call center capabilities, and multi-site connectivity in high-performance hardware. Large enterprises, contact center operations, and organizations with complex communication requirements will find this system essential for mission-critical telephony management.

Key Features & Benefits

• 2000-User Capacity: Supports up to 2000 extensions with 500 simultaneous calls, providing enterprise-scale communication infrastructure without recurring per-user licensing costs
• Advanced Call Center Platform: Delivers sophisticated queue management, real-time analytics, workforce optimization tools, and omnichannel routing for professional contact center operations
• Enterprise High Availability: Implements active-standby failover with sub-30-second switchover times, ensuring continuous communication during hardware failures or planned maintenance
• Comprehensive Multi-Tenancy: Manages up to 100 independent tenant environments with isolated resources, enabling MSPs to consolidate infrastructure while maintaining complete client separation
• Hardware-Accelerated Processing: Utilizes dedicated DSP resources for transcoding and media processing, maintaining call quality under maximum concurrent call loads

Technical Specifications

System Capacity

• Maximum Users: 2000 extensions
• Concurrent Calls: 500 simultaneous connections
• SIP Trunks: 500 trunk registrations
• Conference Bridges: 64 rooms with 100 participants each
• Call Queues: 200 queues with unlimited agents
• Voicemail Boxes: 2000 individual mailboxes
• Call Recording Storage: Up to 5000 hours (expandable)

Tenant Configuration

• Multi-Tenant Support: Up to 100 independent tenants
• Tenant Isolation: Complete separation of dial plans, trunks, features
• Per-Tenant Resources: Configurable extension limits, concurrent call allocation
• Management Hierarchy: System, tenant, and department administrator roles
• Billing Integration: CDR export for tenant-based billing systems

Network & Connectivity

• Ethernet Ports: 2 × 10/100/1000 Mbps Gigabit (LAN/WAN)
• Network Protocols: SIP, IAX2, TCP/IP, UDP, RTP, SRTP, TLS 1.3
• VPN Support: OpenVPN, IPsec, L2TP for secure connectivity
• QoS Mechanisms: 802.1p/Q VLAN, ToS/DiffServ, bandwidth shaping
• Network Security: Stateful firewall, fail2ban, geographic IP filtering
• IPv6 Support: Full dual-stack IPv4/IPv6 operation
• Network Redundancy: Link aggregation, automatic failover

Voice & Media Processing

• Codec Support: G.711a/μ, G.722, G.726, G.729, Opus, GSM, iLBC, Speex
• Hardware Transcoding: Dedicated DSP for codec conversion
• DTMF Methods: RFC 2833, SIP INFO, in-band detection
• Fax Support: T.38 fax over IP with G.711 passthrough fallback
• Echo Cancellation: ITU-T G.168 hardware DSP with 128ms tail
• Jitter Buffer: Adaptive jitter management up to 200ms
• Music on Hold: Multiple sources, per-tenant customization

Call Center Features

• Queue Distribution: Ring all, round robin, least recent, fewest calls, random, skills-based
• Agent Management: Login/logout, pause codes, wrap-up time, skill assignment
• Real-Time Dashboard: Live queue statistics, agent status, service levels
• Historical Reports: Call volume, abandonment rates, average handle time, agent performance
• Callback Queuing: Virtual queuing with automatic callback
• Supervisor Tools: Whisper, barge, monitor, force logout
• Service Level Targets: Configurable thresholds with alerting
• Recording Compliance: Automatic recording with compliance tagging

Advanced Call Features

• Auto-Attendant: Multi-level IVR with TTS, speech recognition
• Call Recording: Automatic, on-demand, scheduled, compliance modes
• Ring Groups: Hunt groups, simultaneous, sequential, priority routing
• Time Conditions: Advanced schedule-based routing and features
• Paging/Intercom: Multicast paging, one-way/two-way intercom
• Call Parking: Directed and blind parking with BLF indicators
• Hot Desking: Dynamic extension assignment for flexible workspaces
• Call Pickup: Group pickup, directed pickup, extension monitoring

Unified Communications

• Presence Management: Real-time status across extensions and applications
• Video Calling: WebRTC video, SIP video support up to 1080p
• Instant Messaging: Built-in chat with file sharing, group conversations
• Voicemail Features: Voicemail-to-email with transcription, visual voicemail
• Mobile Integration: Linkus mobile client for iOS and Android
• Desktop Softphone: Linkus Desktop for Windows, macOS, Linux
• Collaboration Tools: Screen sharing, document collaboration
• Unified Messaging: Single inbox for voicemail, fax, email

Integration & Development

• API Types: RESTful API, Websocket API, AJAM (Asterisk Manager)
• Webhooks: Real-time event notifications for external systems
• LDAP/AD Integration: Directory sync, single sign-on, authentication
• CRM Connectors: Pre-built integrations for Salesforce, Zoho, Microsoft Dynamics
• Database Access: MySQL/MariaDB backend for reporting and analytics
• Auto-Provisioning: Support for major IP phone manufacturers
• Third-Party Apps: Hotel/Property Management, workforce management
• Custom Development: SDK and documentation for custom applications

Management & Monitoring

• Web Interface: Responsive HTML5-based administration portal
• CLI Access: SSH command-line for advanced configuration
• SNMP Support: v2c and v3 for network management systems
• Syslog Integration: Remote logging to centralized servers
• Email Alerts: Configurable notifications for critical events
• Remote Management: Cloud-based MyPBX portal with secure access
• Audit Logging: Comprehensive activity tracking for compliance
• Performance Monitoring: Real-time system resource utilization

High Availability & Redundancy

• Failover Mode: Active-standby with automatic detection
• Sync Methods: Real-time configuration, CDR, voicemail synchronization
• Switchover Time: <30 seconds automatic failover
• Heartbeat Monitoring: Dual network path health checking
• Manual Failover: Administrator-controlled switchover
• Split-Brain Protection: Automatic resolution of network partitions
• Backup Methods: Automated scheduled backups to local/remote storage

Hardware Platform

• Processor: Intel Xeon E3 quad-core with hyper-threading
• Memory: 16GB DDR4 ECC RAM
• Storage: 1TB enterprise SSD (system and recordings)
• RAID Support: Hardware RAID1 with hot-swap capability
• USB Ports: 4 × USB 3.0 for backup and storage expansion
• Expansion: PCIe slot for future hardware enhancements

Power & Environmental

• Power Supply: Dual redundant hot-swappable 450W PSU
• Power Input: 100-240V AC, 50/60Hz auto-sensing
• Power Consumption: 85W typical, 120W maximum
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Humidity: 10% to 90% non-condensing
• Altitude: Up to 3000m operational
• Noise Level: <38dB at 1 meter

Physical Specifications

• Form Factor: 2U rackmount enterprise chassis
• Dimensions: 482mm × 550mm × 88mm (W × D × H)
• Weight: 12.5kg
• Mounting: Rack-mount rails included, optional desktop placement
• Ventilation: Redundant cooling fans with intelligent control
• Front Panel: LCD display with status indicators

Security & Compliance

• Encryption: TLS 1.3, SRTP, AES-256 for media and signaling
• Authentication: Multi-factor authentication, RADIUS integration
• Access Control: Role-based permissions, IP whitelisting
• Fraud Prevention: Call pattern analysis, geographic restrictions
• Compliance: HIPAA-ready recording, PCI-DSS considerations
• Regulatory: CE, FCC, RoHS compliant

Use Cases & Applications

Large Enterprise Communication

Organizations with 500-2000 employees establish comprehensive communication infrastructure supporting complex hierarchies and distributed operations. The Yeastar P570 IP PBX manages departmental routing, executive communication paths, and company-wide collaboration without performance degradation. Global corporations coordinate across time zones while maintaining unified extension dialing and presence awareness throughout worldwide operations.

Multi-Site Corporate Networks

Enterprises operating dozens of branch locations create seamless communication environments through VPN-connected P570 systems. The system enables free inter-office calling, centralized voicemail management, and consistent feature access regardless of physical location. Manufacturing organizations coordinate supply chain operations across production facilities, warehouses, and administrative centers while maintaining communication cost control through intelligent routing strategies.

Large-Scale Contact Centers

Customer service operations supporting hundreds of agents deploy professional-grade call center platforms without specialized hardware investments. The Yeastar P570 IP PBX provides real-time queue monitoring, agent performance analytics, and quality management tools essential for maintaining service level agreements. Outsourcing firms manage multiple client campaigns simultaneously through isolated queue configurations and tenant-separated reporting while supervisors monitor performance across consolidated dashboards.

Managed Service Provider Infrastructure

MSPs consolidate communication services for numerous business clients within single enterprise platforms. The P570 system allocates dedicated tenant resources, maintains complete operational isolation, and enables per-client customization while reducing infrastructure overhead. Service providers scale efficiently by adding tenants to existing hardware rather than deploying separate systems, improving profitability while maintaining service quality and reliability commitments.

Healthcare System Integration

Hospital networks coordinate communication across multiple facilities including medical centers, specialty clinics, and administrative offices. The Yeastar P570 IP PBX integrates nurse call systems, emergency department workflows, and physician on-call scheduling within comprehensive platforms. Moreover, healthcare organizations maintain HIPAA-compliant call recording for quality assurance while implementing high availability configurations ensuring continuous emergency communication capability.

Financial Institution Networks

Banks and financial service providers require secure, scalable communication platforms supporting branch networks and trading floor operations. The P570 system delivers compliance recording with tamper-evident storage, encrypted communications for sensitive transactions, and high availability ensuring continuous operation during market hours. Furthermore, institutions implement geographic redundancy through paired systems providing disaster recovery capability and business continuity assurance.

Government Agency Deployment

Public sector organizations manage complex communication requirements across departments, field offices, and emergency response teams. The Yeastar P570 IP PBX supports secure inter-agency communication, emergency notification systems, and public information hotlines within unified infrastructure. Consequently, agencies maintain operational security through encrypted signaling while providing citizen services through sophisticated IVR systems and callback queuing during high-volume situations.

Educational Institution Networks

Universities and large school districts coordinate communication across extensive campus environments including academic buildings, residence halls, and administrative facilities. The P570 system manages student services hotlines, faculty collaboration tools, and campus-wide emergency notification capabilities. Additionally, educational institutions implement tenant separation for different colleges or departments while maintaining centralized management and consolidated reporting for administrative oversight.
