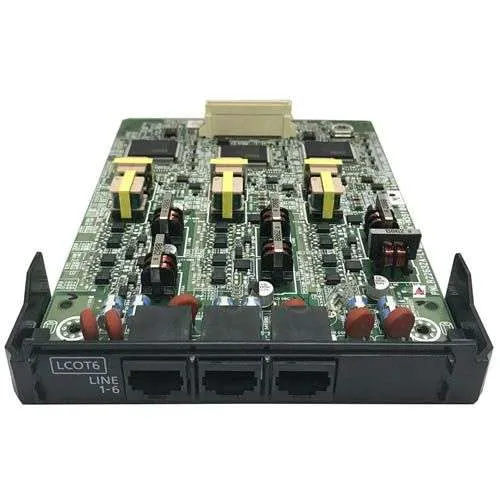

Panasonic KX-NS5180X: 6-Port Analog Trunk Card for NS Series Communication Systems

The Panasonic KX-NS5180X connects traditional analog telephone lines to NS Series IP-PBX systems. This six-port analog trunk card enables businesses to maintain existing PSTN connections while transitioning to modern communication infrastructure. Ideal for organizations requiring backup telephony during internet outages or those operating in areas with limited broadband availability, the KX-NS5180X ensures reliable external call connectivity.

Technical Specifications

System Compatibility

• Compatible Platforms: Panasonic KX-NS500, KX-NS1000
• Card Slot Type: Analog trunk slot (LCOT slot)
• Required System Version: NS Series firmware v2.0 or higher

Port Configuration

• Port Count: 6 analog trunk ports
• Connector Type: RJ-11 modular jacks
• Signaling Types: Loop start, ground start (selectable per port)
• Line Impedance: 600 ohms nominal
• Polarity Reversal Detection: Answer supervision support

Call Features

• Caller ID Protocol: Bellcore FSK Type I and II, ETSI, DTMF-based
• DTMF Detection: Dual-tone multi-frequency recognition for trunk-side signaling
• Disconnect Supervision: Loop current, busy tone, and polarity reversal methods
• Ring Detection: 20 Hz to 60 Hz frequency range

Physical Characteristics

• Form Factor: Single expansion card
• Installation Method: Hot-swappable slot mounting
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity Range: 10% to 90% non-condensing

Power Requirements

• Power Source: Supplied via NS Series main chassis
• Power Consumption: Approximately 10W during operation
• Line Voltage Tolerance: 48V DC ±10% from telephone company

Electrical Specifications

• Ring Voltage: 40V to 130V AC detection range
• Loop Current: 20mA to 120mA operating range
• On-Hook Impedance: Greater than 5 megohms
• Off-Hook Impedance: 600 ohms balanced

Use Cases and Applications

The KX-NS5180X serves businesses requiring reliable PSTN backup connectivity. Organizations can maintain analog trunk lines as failover circuits when primary SIP trunks experience internet disruptions. Moreover, critical services like elevator emergency phones and alarm system dialers benefit from dedicated analog connections that function independently of network infrastructure.

Professional offices in rural or underserved areas utilize this card where broadband quality remains inconsistent. Law firms, medical practices, and accounting offices maintain traditional telephone service alongside emerging IP technologies. Additionally, the ground start signaling supports connections to key systems and older PBX equipment when integrating with legacy infrastructure.

Retail businesses frequently deploy the KX-NS5180X for credit card processing terminals requiring analog connectivity. Point-of-sale systems often mandate traditional telephone lines for payment authorization, making this card essential despite broader IP adoption. Furthermore, fax machines in legal and healthcare environments continue requiring analog lines for document transmission compliance.

Multi-tenant buildings benefit from distributing analog trunk capacity across different business units. Property management companies can allocate specific trunk lines to individual tenants while maintaining centralized system administration. Consequently, each tenant receives dedicated external connectivity without separate telephone system investments.

Manufacturing facilities utilize analog trunks for production equipment monitoring and automated notification systems. Machine controllers and environmental monitoring systems often integrate through analog interfaces, requiring dedicated trunk connections. The automatic line seizure feature ensures critical alerts reach appropriate personnel without manual intervention.

Hospitality properties maintain analog connectivity for guest room phones and administrative functions. Hotels can connect room phones through the NS Series while preserving analog trunk capacity for front desk operations. The caller ID detection enables staff to identify internal versus external calls before answering.

Educational institutions appreciate the hybrid approach during technology transitions. School districts can maintain existing analog service contracts while gradually introducing SIP trunking for administrative buildings. The six-port capacity typically accommodates smaller campus locations or individual school buildings within larger districts.

Emergency services access represents another critical application. Building security systems, fire alarm panels, and emergency call stations often require analog telephone connections per local building codes. The KX-NS5180X ensures code compliance while integrating these connections into modern communication infrastructure.
