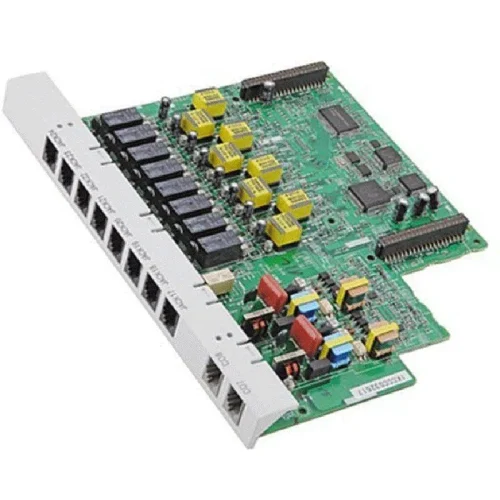

Panasonic KX-TE82480SX: 2/8 Expansion Card for TES Series Communication Systems

The Panasonic KX-TE82480SX delivers flexible capacity expansion for TES Series hybrid telephone systems. This expansion card provides two central office (CO) line ports and eight extension ports, enabling businesses to grow communication infrastructure as operational demands increase. Ideal for small offices and retail locations requiring gradual scalability, the KX-TE82480SX maintains cost-effective telephony expansion without complete system replacement.

Technical Specifications

System Compatibility

• Compatible Platforms: Panasonic KX-TES824, KX-TES Series hybrid systems
• Card Slot Type: Expansion slot (TES Series expansion interface)
• Installation Location: Internal card slot within main unit chassis

Port Configuration

• CO Line Ports: 2 analog central office line connections
• Extension Ports: 8 analog extension connections
• Total Capacity: 10 ports per card (2 CO + 8 EXT)
• Connector Type: RJ-11 modular jacks
• Signaling Type: Loop start (CO lines), proprietary extension signaling

Physical Characteristics

• Form Factor: Single expansion card module
• Mounting Method: Internal card slot installation
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity Range: 10% to 90% non-condensing

Electrical Specifications

• Power Source: Supplied via TES Series main unit backplane
• Power Consumption: Approximately 5W during operation
• Ringing Voltage: 75V AC (standard North American specification)
• Line Impedance: 600 ohms nominal

Use Cases and Applications

The KX-TE82480SX serves growing businesses requiring simultaneous line and extension capacity increases. Small professional offices can add dedicated fax lines and client-facing phone numbers while accommodating new employee workstations. Moreover, dental practices benefit from separating appointment scheduling lines from administrative extensions without installing separate systems.

Retail establishments frequently utilize this card when opening additional checkout stations or expanding back-office operations. A boutique adding two phone lines for credit card processing and customer service can simultaneously connect eight sales floor extensions. Additionally, the mixed port configuration reduces equipment room complexity by consolidating functions within existing infrastructure.

Property management companies appreciate the balanced expansion capability. Adding tenant inquiry lines alongside extension phones for maintenance staff maintains organized communication channels. Furthermore, the analog compatibility allows connecting existing desk phones without purchasing proprietary handsets.

Service-oriented businesses requiring departmental line separation find this card particularly effective. Automotive repair shops can dedicate one CO port to service appointments and another to parts inquiries while distributing extension phones across service bays and customer waiting areas. Consequently, call routing becomes more efficient without manual transfers.

Temporary business locations such as seasonal retail spaces benefit from quick deployment capabilities. The KX-TE82480SX installs rapidly within existing TES824 systems, enabling businesses to scale operations during peak periods. When seasonal demand subsides, the infrastructure remains in place for future expansion cycles without stranded investment.

Medical clinics operating multiple practitioners within shared facilities utilize the card to provide private lines for each provider while maintaining common reception extensions. This configuration supports HIPAA-compliant communication practices by segregating patient communication channels.
