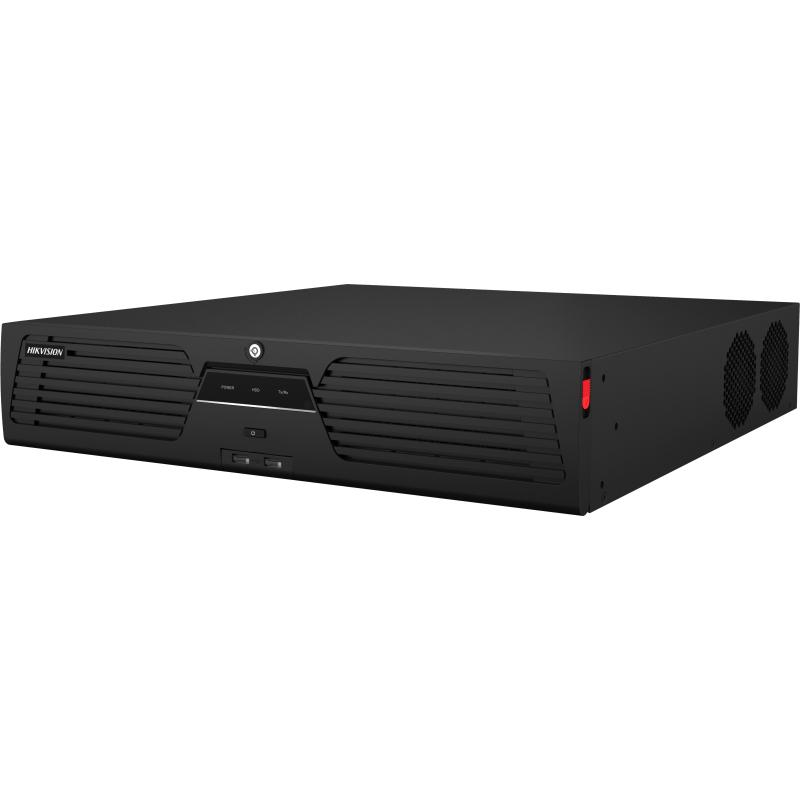

Hikvision DS-9664NXI-I8/S – 64-Channel 2U 4K AcuSense Network Video Recorder
The Hikvision DS-9664NXI-I8/S is a 64-channel 2U NVR built for enterprise sites that need RAID-backed storage alongside deep-learning analytics. Specifically, it accepts up to 64 IP camera inputs at resolutions up to 12 MP, and since it carries no built-in PoE ports, all cameras connect through an external network switch. As a result, installers should plan switch infrastructure and cabling separately from the recorder itself.
In addition, facial recognition and face picture comparison run on this recorder, supporting up to 16 face libraries with up to 10,000 stored faces. Meanwhile, perimeter protection covers up to 4 channels with human and vehicle analysis, which in turn reduces false alarms caused by leaves, shadows, or small animals. Furthermore, eight SATA interfaces accept drives up to 10 TB each, giving up to 80 TB of total capacity, and the recorder supports RAID 0, 1, 5, 6, and 10 for data redundancy. On top of that, built-in POS integration overlays transaction data on live view and playback, while dual HDMI and VGA outputs support flexible local monitoring.
Technical Specifications
Recording & Compression
| Specification | Details |
|---|---|
| Model | DS-9664NXI-I8/S |
| Recorder Type | 64-Channel 2U 4K AcuSense Network Video Recorder |
| IP Video Input | 64 channels, up to 12 MP resolution (32 MP/24 MP on channel 1 with ultra HD mode) |
| Incoming Bandwidth | 320 Mbps (200 Mbps in RAID mode) |
| Outgoing Bandwidth | 256 Mbps (200 Mbps in RAID mode) |
| Decoding Format | H.265+/H.265/H.264+/H.264/MPEG4 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding Capability | 16-ch @ 1080p (30 fps) |
| Synchronous Playback | 16 channels |
| Dual-Stream Recording | Supported |
| Smart Analytics | Facial recognition, perimeter protection (4-ch human/vehicle, up to 12 rules), VCA events, POS integration |
Video & Audio I/O
| Specification | Details |
|---|---|
| HDMI 1 Output | Up to 4K (3840 × 2160)/60 Hz |
| HDMI 2 Output | Up to 1920 × 1080/60 Hz |
| VGA Output | 1 channel, up to 1920 × 1080/60 Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/MP2L2/AAC |
| USB Interface | Front: 2 × USB 2.0; Rear: 1 × USB 3.0 |
| Serial Interface | RS-485 (full-duplex), RS-232, keyboard port |
| Alarm In/Out | 16 inputs / 8 outputs |
Network & Storage
| Specification | Details |
|---|---|
| Network Interfaces | 2 × RJ45 10/100/1000 Mbps self-adaptive Ethernet |
| Remote Connections | Up to 128 |
| Network Protocols | TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Storage Interfaces | 8 × SATA, up to 10 TB per disk (80 TB total); 1 × eSATA |
| RAID Support | RAID 0, 1, 5, 6, 10 |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | ≤ 30 W (without HDD) |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | 10% to 90% |
| Chassis | 2U |
| Dimensions (W × D × H) | 442 mm × 459 mm × 92 mm (17.4″ × 18″ × 3.6″) |
| Weight | ≤ 8.7 kg (without HDD, 19.2 lb.) |
| Certification | CE (EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4), FCC (Part 15 Subpart B, ANSI C63.4-2014), IC |
Who This NVR Suits Best
- Enterprise sites running large camera fleets – 64-channel capacity in one chassis suits shopping malls, campuses, and multi-site businesses managed from a central location.
- Facilities needing high uptime and redundancy – RAID support protects footage against single-drive failure, suiting businesses that can’t afford data loss.
- Large retail chains and supermarkets – POS integration overlays transaction data on footage, letting managers cross-reference sales with camera activity at tills across many locations.
