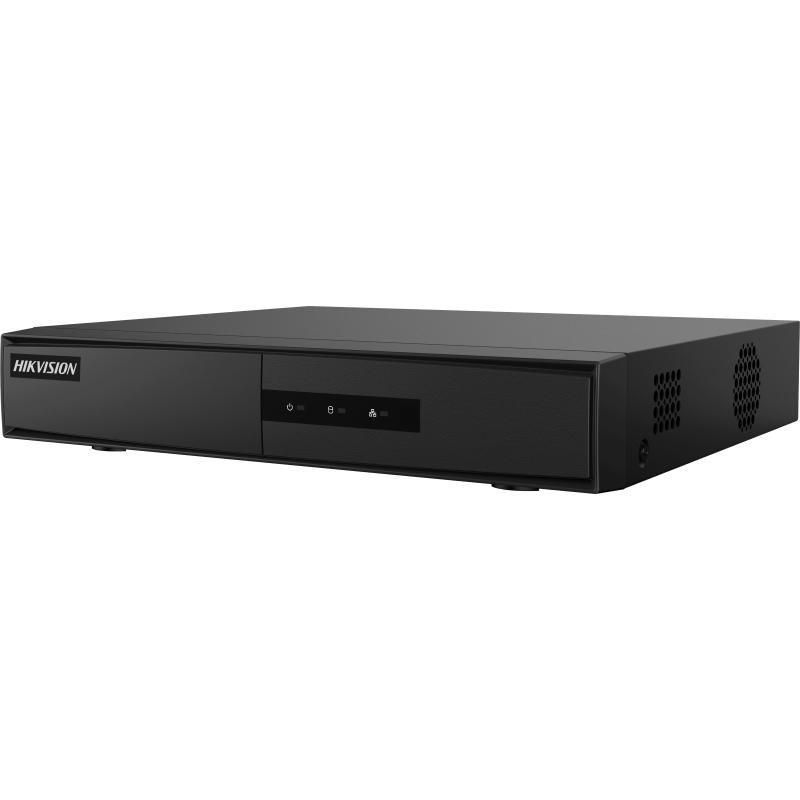

Hikvision DS-7108NI-Q1/8P/M – 8-Channel Mini 1U 8 PoE Network Video Recorder
The Hikvision DS-7108NI-Q1/8P/M is an 8-channel Mini 1U NVR designed for small businesses and homes that need a larger camera count without added networking gear. Specifically, it accepts up to 8 IP camera inputs at resolutions up to 6 MP, and its 8 built-in PoE ports power connected cameras directly over a single Ethernet run per channel. As a result, installers skip the cost and complexity of a separate PoE switch.
In addition, the recorder supports H.265+/H.265/H.264+/H.264 compression, which keeps storage use efficient even with all 8 channels recording. Meanwhile, a single SATA interface accepts drives up to 6 TB, giving enough capacity for continuous multi-camera recording. Furthermore, built-in line crossing and intrusion detection flag movement across defined zones or boundaries automatically. On top of that, simultaneous HDMI and VGA output lets installers connect a monitor for local live view and playback, while Hik-Connect enables remote viewing from a phone or PC over the network.
Technical Specifications
Recording & Compression
| Specification | Details |
|---|---|
| Model | DS-7108NI-Q1/8P/M |
| Recorder Type | 8-Channel Mini 1U 8 PoE Network Video Recorder |
| IP Video Input | 8 channels, up to 6 MP resolution |
| Incoming Bandwidth | 60 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 6 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding Capability | 4-ch @ 1080p (30 fps), or 2-ch @ 4 MP (30 fps), or 1-ch @ 6 MP (30 fps) |
| Synchronous Playback | 4 channels |
| Smart Features | Line crossing detection, intrusion detection, smart search, smart playback |
Video & Audio I/O
| Specification | Details |
|---|---|
| HDMI Output | 1 channel, up to 1920 × 1080p/60Hz |
| VGA Output | 1 channel, up to 1920 × 1080p/60Hz |
| Video Output Mode | HDMI and VGA simultaneous output |
| Stream Type | Video, or Video & Audio |
| USB Interface | 2 × USB 2.0 (rear panel) |
| Alarm In/Out | Not supported |
Network & Storage
| Specification | Details |
|---|---|
| Network Interface | 1 × RJ45 10/100 Mbps self-adaptive Ethernet |
| PoE Interfaces | 8 × RJ45 10/100 Mbps self-adaptive, IEEE 802.3af/at |
| PoE Power Budget | ≤ 75 W total |
| Remote Connections | Up to 16 |
| Network Protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP |
| Storage Interface | 1 × SATA, up to 6 TB per disk |
| Software Clients | iVMS-4200, Hik-Connect |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 48 VDC, 1.8 A |
| Power Consumption | ≤ 10 W (excluding PoE output and HDD) |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | 10% to 90% |
| Dimensions (W × D × H) | 265 mm × 223 mm × 48 mm (10.4″ × 8.8″ × 1.9″) |
| Weight | ≤ 1 kg (2.2 lb) |
| Certification | CE (EN50130-4, EN 61000-3-2, EN 61000-3-3) |
Who This NVR Suits Best
- Growing retail and office setups – the 8-channel PoE design covers multiple entrances, aisles, and stockrooms without needing a second recorder.
- Multi-camera home compounds – since PoE ports power cameras directly, homeowners cover gates, driveways, and boundary walls without running separate power cables.
- Small warehouses and workshops – 8 channels at up to 6 MP give better coverage across loading bays, storage areas, and perimeter fencing on one device.
