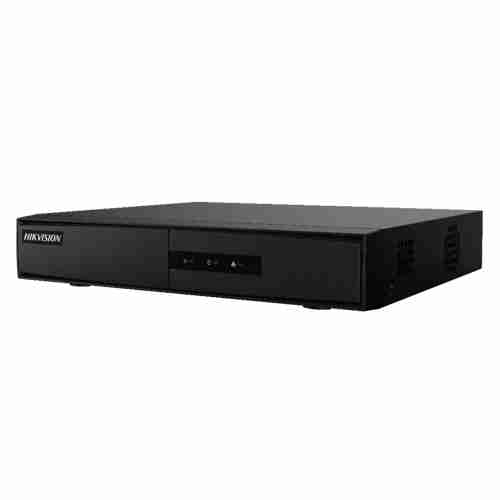

Hikvision DS-7216HGHI-M1 – 16-Channel 720p 1U H.265 DVR

The Hikvision DS-7216HGHI-M1 is a 16-channel analogue DVR built for larger small-business installations that need budget-friendly, reliable recording. Specifically, it accepts HDTVI, AHD, HDCVI, and CVBS signals over BNC, so it works with mixed camera brands without a swap-out. In addition, it supports H.265 Pro+ compression, and as a result storage costs stay lower than older H.264 recorders at the same resolution. Furthermore, up to 16 of its channels can switch to IP camera inputs (up to 18-ch total) at up to 5 MP, so a growing site can scale well beyond the 4- and 8-channel models in this range.

Meanwhile, built-in deep-learning motion detection classifies human and vehicle targets on every analogue channel by default, which in turn cuts down false alarms from leaves, headlights, or shadows. On top of that, the unit takes a single SATA hard drive up to 10 TB, well beyond the 4 TB cap on the smaller models in this family, and its slim 260 × 222 × 45 mm 1U body suits standard rack or shelf mounting. Consequently, this DVR suits larger shops, warehouses, and multi-building sites that need 16-channel coverage in a standard 1U form factor.

Technical Specifications

Recording & Compression

Video & Audio I/O

Network & Storage

Power & Physical

Who This Recorder Suits Best

• Larger shops and warehouses needing 16-camera coverage – for instance, the 16 analogue channels and single-HDD design suit sites too large for an 8-channel recorder but not yet needing a multi-bay system.
• Sites planning to grow toward IP cameras – since up to 18 channels can run as IP input at up to 5 MP, it suits installers who want room to add higher-resolution IP cameras over time without replacing the recorder.
• Rack-mounted installations needing longer retention – because the standard 1U chassis fits conventional racks and the 10 TB storage cap holds far more footage than the smaller models in this range, it suits comms rooms needing weeks of retention across many cameras.
