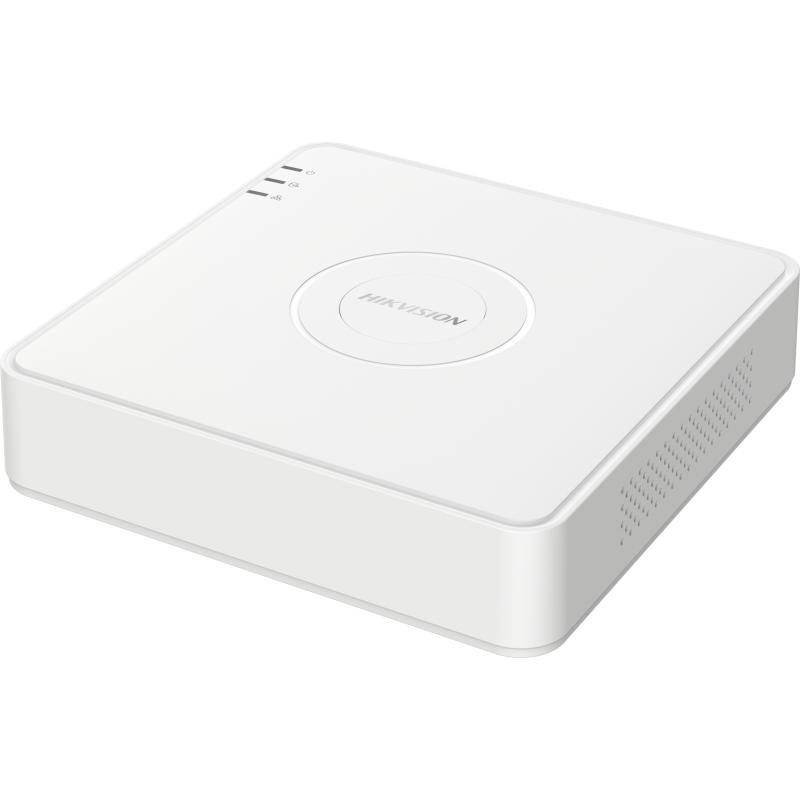

Hikvision DS-7108HGHI-M1 – 8-Channel 720p Mini 1U H.265 DVR

The Hikvision DS-7108HGHI-M1 is an 8-channel analogue DVR built for small-to-medium installations that need budget-friendly, reliable recording. Specifically, it accepts HDTVI, AHD, HDCVI, and CVBS signals over BNC, so it works with mixed camera brands without a swap-out. In addition, it supports H.265 Pro+ compression, and as a result storage costs stay lower than older H.264 recorders at the same resolution. Furthermore, installers can swap up to 8 of its channels for IP camera inputs (up to 10-ch total) at up to 5 MP, so a growing site can add IP cameras well beyond the entry-level 4-channel model in this range.

Meanwhile, built-in deep-learning motion detection classifies human and vehicle targets on every analogue channel by default, which in turn cuts down false alarms from leaves, headlights, or shadows. On top of that, the unit takes a single SATA hard drive up to 4 TB, and its compact 200 × 200 × 45 mm mini 1U body suits tight installation spaces despite the extra channels. Consequently, this DVR suits shops, small offices, and multi-room homes that need 8-channel coverage without the cost or footprint of a full-size recorder.

Technical Specifications

Recording & Compression

Video & Audio I/O

Network & Storage

Power & Physical

Who This Recorder Suits Best

• Shops and small offices needing 8-camera coverage – for instance, the 8 analogue channels and single-HDD design suit sites larger than a single room but still small enough not to need a rack-mounted recorder.
• Sites planning to grow toward IP cameras – since up to 10 channels can run as IP input at up to 5 MP, it suits installers who want room to add higher-resolution IP cameras over time without replacing the recorder.
• Multi-room homes and small compounds – because it supports 8 channels and synchronous 8-channel playback, it suits residential properties with gates, driveways, and multiple building entrances on one recorder.
