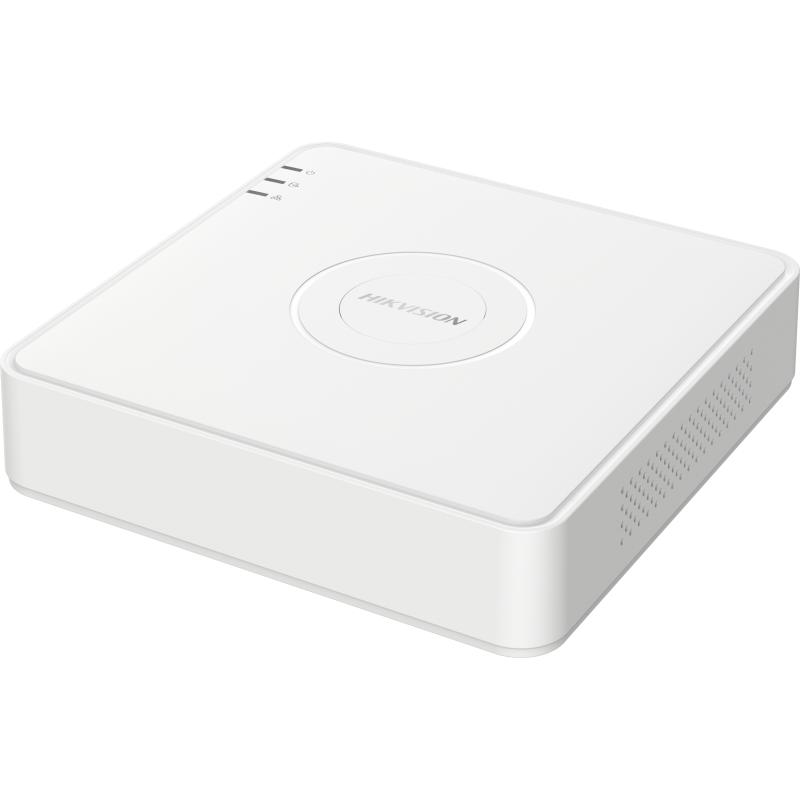

Hikvision DS-7104HGHI-M1 – 4-Channel 720p Mini 1U H.265 DVR

The Hikvision DS-7104HGHI-M1 is a 4-channel analogue DVR built for small installations that need budget-friendly, reliable recording. Specifically, it accepts HDTVI, AHD, HDCVI, and CVBS signals over BNC, so it works with mixed camera brands without a swap-out. In addition, it supports H.265 Pro+ compression, and as a result storage costs stay lower than older H.264 recorders at the same resolution. Furthermore, one analogue channel can be swapped for an IP camera input, up to 5 channels total at up to 2 MP, so a small site can mix analogue and IP cameras on one recorder.

Meanwhile, built-in deep-learning motion detection classifies human and vehicle targets on every analogue channel by default, which in turn cuts down false alarms from leaves, headlights, or shadows. On top of that, the unit takes a single SATA hard drive up to 4 TB, and its compact 200 × 200 × 45 mm mini 1U body suits tight installation spaces. Consequently, this DVR suits small shops, homes, and offices that need straightforward 4-channel coverage without the cost or footprint of a full-size recorder.

Technical Specifications

Recording & Compression

Video & Audio I/O

Network & Storage

Power & Physical

Who This Recorder Suits Best

• Small shops and homes needing straightforward 4-camera coverage – for instance, the 4 analogue channels and single-HDD design suit sites that don’t need a large multi-bay recorder.
• Sites mixing analogue and IP cameras on a budget – since one channel can switch to IP input (up to 5 total), it suits installers adding a single IP camera alongside existing analogue units without replacing the whole system.
• Space-constrained installation points – because the mini 1U body is compact at 200 × 200 × 45 mm, it fits reception desks, small server cabinets, or wall-mounted enclosures where a full-size DVR won’t fit.
