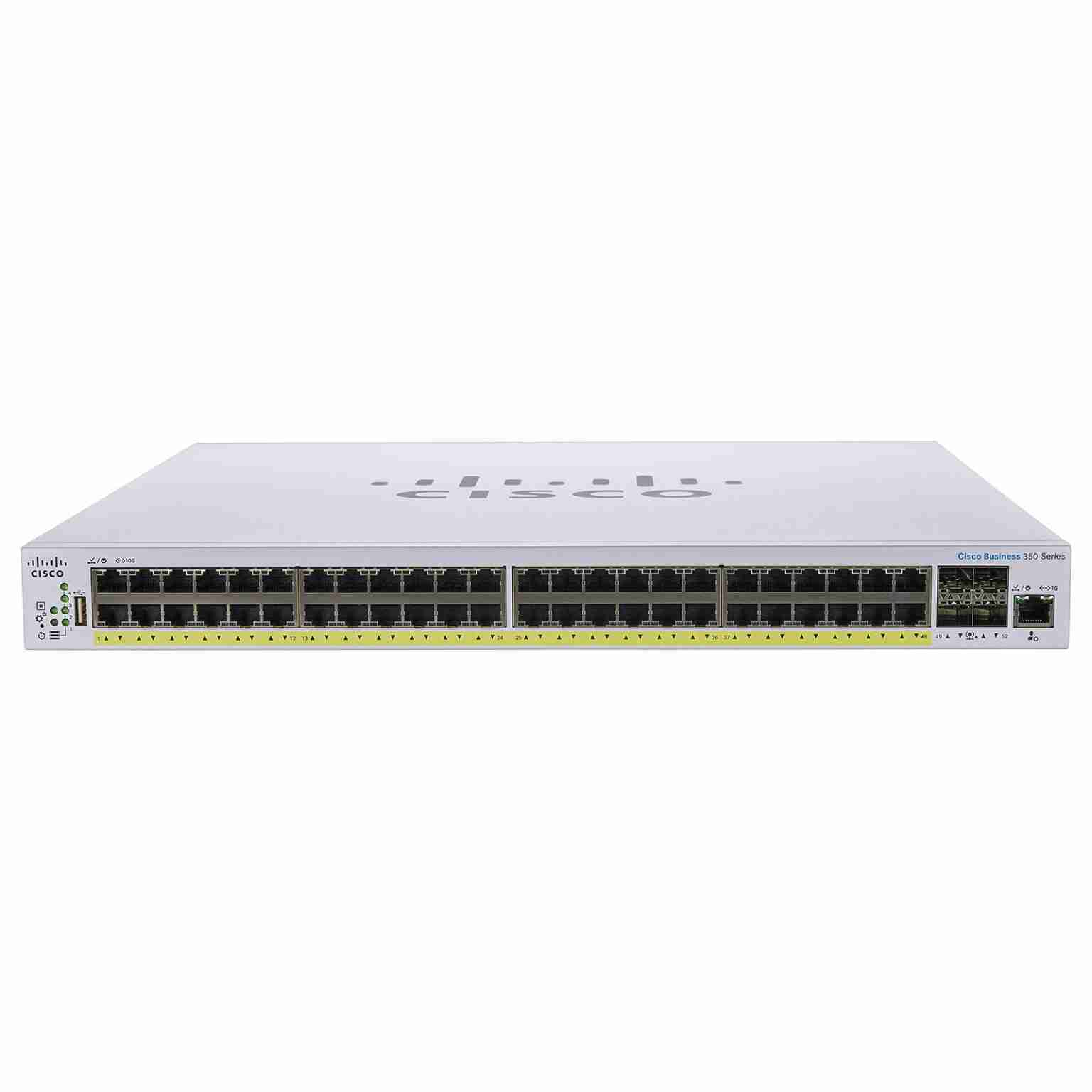

Cisco Business 350 Series Managed Switch CBS350-48P-4G

The Cisco Business 350 CBS350-48P-4G is a 48-port managed switch built for growing businesses that need enterprise-level features without the complexity. It combines full PoE+ support across all ports with Layer 3 static routing capabilities to support sophisticated network designs. This switch delivers the performance and flexibility that medium-sized organizations require as they scale their infrastructure.

Technical Specifications

Port Configuration

• 48x 10/100/1000 Mbps PoE+ ports (IEEE 802.3at/af compliant)
• 4x 1G SFP fiber uplink slots
• Total switching capacity: 104 Gbps
• Forwarding rate: 77.38 Mpps (wire speed)

Power over Ethernet

• Total PoE budget: 375W
• Per-port maximum: 30W (PoE+)
• PoE power management with priority settings
• Supports IEEE 802.3at (PoE+) and 802.3af (PoE)

Physical Specifications

• Dimensions: 440 × 440 × 44 mm (17.3 × 17.3 × 1.7 inches)
• Weight: 5.5 kg (12.1 lbs)
• Mounting: 19-inch rack-mountable (1U height)
• Cooling: Front-to-back airflow with smart fan control
• Power: 100-240V AC, 50-60 Hz (internal power supply)

Layer 2 Features

• MAC address table: 16,000 entries
• VLANs: 4,096 supported (256 active)
• Jumbo frames: Up to 9,216 bytes
• Link aggregation: 802.3ad LACP with up to 8 groups
• Spanning Tree: IEEE 802.1w RSTP and 802.1s MSTP

Layer 3 Features

• Static routing with up to 32 routes
• Inter-VLAN routing (up to 16 interfaces)
• DHCP server and relay
• IPv4 and IPv6 support

Management & Security

• Web-based GUI and CLI management
• SNMP v1/v2c/v3
• 802.1X port-based authentication
• SSH and SSL/TLS encryption
• Access Control Lists (IPv4 and IPv6)
• Port security with MAC address filtering
• RADIUS and TACACS+ authentication

Quality of Service

• 8 hardware queues per port
• Traffic classification and remarking
• Voice VLAN with auto-configuration
• Bandwidth control per port

Environmental & Compliance

• Operating temperature: 0°C to 45°C (32°F to 113°F)
• Storage temperature: -20°C to 70°C (-4°F to 158°F)
• Humidity: 10% to 90% non-condensing
• MTBF: 286,693 hours
• Noise level: 39.5 dBA at 25°C

Use Cases & Applications

Multi-Floor Office Buildings: The CBS350-48P-4G serves as an ideal distribution switch for offices spanning multiple floors. Connect it to a core switch via fiber uplinks while powering all desk phones, access points, and security cameras on a single floor. The Layer 3 routing capability enables you to create separate subnets per floor without additional routing hardware.

Hotels and Hospitality: Deploy the switch to power guest room access points, corridor cameras, and digital signage throughout an entire hotel floor. Additionally, the Voice VLAN feature automatically prioritizes front desk phone traffic while guest WiFi traffic remains on a separate, lower-priority network segment.

Healthcare Clinics: Medical facilities benefit from the CBS350-48P-4G’s ability to segment patient WiFi, staff networks, and medical device traffic into isolated VLANs. The 802.1X authentication ensures only authorized devices connect to sensitive patient data systems.

Education Campuses: Schools can connect classrooms, administrative offices, and common areas through this switch while maintaining network separation. For instance, student devices access restricted networks while teacher workstations and administrative systems operate on secure VLANs with full access to school resources.

Retail Chain Stores: Support point-of-sale systems, IP security cameras, wireless access points, and digital menu boards from a central switch location. The QoS features ensure payment processing remains fast even during peak shopping hours when customer WiFi usage is high.

Why Choose the CBS350-48P-4G

The CBS350-48P-4G bridges the gap between basic plug-and-play switches and complex enterprise equipment. Unlike unmanaged switches, it offers granular control over network traffic and security. However, it maintains simpler configuration options compared to Catalyst enterprise switches, making it accessible for small IT teams.

The 375W PoE budget supports approximately 12 high-power devices at maximum draw or up to 48 standard IP phones simultaneously. This makes the switch particularly cost-effective for businesses deploying modern WiFi 6 access points that require 25-30W each.

Additional Resources

• Download the complete datasheet
• Access configuration guides and documentation
• Compare Business 350 Series models
• Watch video tutorials

---

Compatible with: Cisco IP phones (6800/7800/8800 series), Cisco wireless access points (Business 100/200/300 series), standard PoE-powered devices (cameras, access control, LED lighting), and 1G SFP modules for fiber connectivity.
