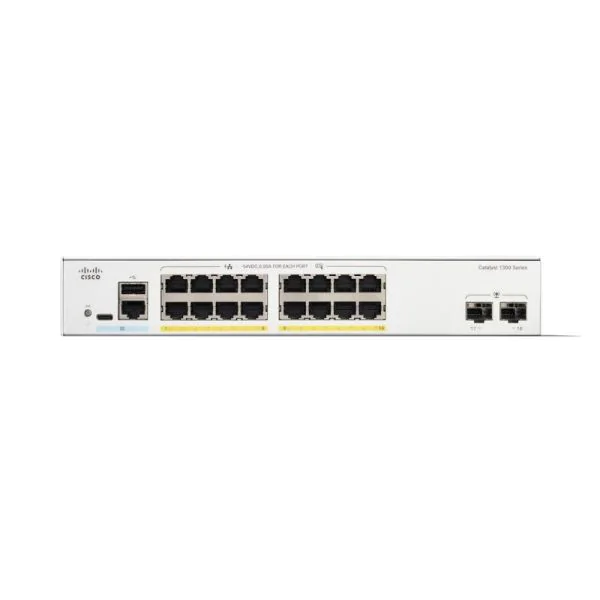

Cisco Catalyst 1300-16P-2G Switch

The Cisco Catalyst 1300-16P-2G is a compact enterprise-grade Layer 3 managed switch engineered for small to medium-sized businesses and branch offices. This 16-port PoE+ switch delivers 120W of power budget through a fanless, silent design ideal for deployment in open workspaces. Featuring two Gigabit SFP fiber uplinks and comprehensive security capabilities, this SMB network switch provides enterprise-class functionality without ongoing subscription costs or complex management overhead.

Technical Specifications

Port Configuration

• Ethernet Ports: 16 x 10/100/1000 Mbps PoE+ (RJ-45)
• Uplink Ports: 2 x Gigabit SFP (fiber)
• Total System Bandwidth: 18 ports
• Console: RJ-45 + USB Type-C

Performance

• Switching Capacity: 36 Gbps (wire-speed, non-blocking)
• Forwarding Rate: 26.78 Mpps (64-byte packets)
• MAC Address Table: 16,000 entries
• Packet Buffer: 1.5 MB (dynamically shared)
• Latency: Wire-speed forwarding

Power over Ethernet

• PoE Standard: IEEE 802.3af/at (PoE/PoE+)
• Total PoE Budget: 120W
• PoE-Capable Ports: All 16 ports
• Max Power per Port: 30W (PoE+)
• PoE Management: Time-based PoE scheduling, per-port power control, PoE auto-detection

Layer 3 Capabilities

• Routing Protocols: Static routing, RIPv2
• IP Interfaces: Up to 128
• Static Routes: Up to 990
• IPv4/IPv6: Dual-stack support
• Inter-VLAN Routing: Hardware-accelerated
• VLANs: Up to 4,093 simultaneous VLANs

Security Features

• Authentication: IEEE 802.1X, RADIUS, TACACS+, web-based authentication
• Access Control: 1,024 ACL rules, port security, MAC address limiting
• Threat Protection: DHCP snooping, Dynamic ARP Inspection, IP Source Guard
• Advanced Defense: IP/MAC/port binding (IPMB), IPv6 First Hop Security
• Encryption: SSH v1/v2, SSL/HTTPS
• Network Segmentation: Private VLANs, guest VLANs, voice VLANs

Management & Monitoring

• Management Interface: Cisco Business Dashboard, web GUI, CLI, SNMP v1/v2c/v3
• Mobile App: iOS/Android Cisco Business mobile app
• Automation: Cisco Network Plug and Play, Auto Smartports
• Monitoring: RMON (4 groups), sFlow, port mirroring, RSPAN, syslog
• File Management: USB Type-C port for configuration backup and firmware updates

Stacking

• Maximum Stack Size: 8 switches
• Stack Management: Single IP address, unified data and control plane
• Stack Technology: Front Panel Stacking
• Stack Features: Cross-stack QoS, VLANs, Link Aggregation, port mirroring

Quality of Service

• Priority Queues: 8 hardware queues per port
• Classification: 802.1p CoS, DSCP, IP precedence, ACL-based
• Scheduling: Strict priority, Weighted Round-Robin (WRR)
• Rate Limiting: Ingress policing, egress shaping per port/VLAN/flow
• Voice Support: Voice VLAN with automatic assignment

Physical Specifications

• Dimensions: 268 × 272 × 44 mm (10.56″ × 10.69″ × 1.73″)
• Weight: 2.38 kg (5.25 lb)
• Mounting: Desktop or 19-inch rack-mountable with optional bracket
• Cooling: Fanless (completely silent operation)
• Acoustic Noise: 0 dBA (no fan noise)

Power Requirements

• Input Voltage: 100-240V AC, 50-60 Hz (internal auto-ranging)
• Power Supply: Internal universal power supply
• Power Consumption: 18.3W idle (110VAC), 152.7W maximum with full PoE load
• Energy Efficiency: IEEE 802.3az compliant, automatic port power-down

Environmental

• Operating Temperature: -5°C to 50°C (23°F to 122°F)
• Storage Temperature: -25°C to 70°C (-13°F to 158°F)
• Humidity: 10% to 90% relative (non-condensing)
• MTBF: 412,959 hours at 25°C (approximately 47 years)
• Heat Dissipation: 521 BTU/hr maximum

Standards Compliance

• Ethernet: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x
• PoE: IEEE 802.3af, 802.3at
• Spanning Tree: IEEE 802.1D, 802.1w (RSTP), 802.1s (MSTP)
• Security: IEEE 802.1X port-based authentication
• Energy: IEEE 802.3az Energy Efficient Ethernet
• QoS: IEEE 802.1p
• VLAN: IEEE 802.1Q
• Regulatory: UL, CSA, CE, FCC Part 15 Class A, RoHS compliant

Warranty & Support

• Hardware Warranty: Limited lifetime with return-to-factory replacement
• Technical Support: Complimentary 1-year access to Small Business Support Center
• Software Updates: Included at no cost (no subscription required)

Use Cases & Applications

Small Business Office Networks

The Catalyst 1300-16P-2G provides complete network infrastructure for offices with 10-20 employees seeking professional-grade connectivity. Typically, a deployment powers VoIP desk phones, one or two wireless access points for laptops and mobile devices, and connects network printers and file servers. Moreover, the 120W PoE budget supports simultaneous operation of multiple devices without requiring wall power at each location. Additionally, the fanless design operates silently beside reception desks or in open-plan workspaces where fan noise would create an unpleasant environment. As a result, businesses achieve enterprise networking capabilities without compromising workspace comfort or requiring dedicated equipment rooms.

Retail Store Deployments

Retail environments leverage this compact PoE switch to connect point-of-sale terminals, barcode scanners, receipt printers, IP security cameras, and customer WiFi access points. Notably, the SFP fiber uplinks enable connection to back-office servers or headquarters networks over long distances that exceed copper cable limitations. Furthermore, Guest VLAN functionality isolates customer WiFi from payment processing systems, helping maintain PCI DSS compliance without complex network segmentation. Store managers appreciate the plug-and-play setup through the mobile app, which requires no networking expertise and enables same-day deployment. Meanwhile, corporate IT maintains centralized visibility through the Cisco Business Dashboard, ensuring consistent security policies across multiple locations.

Branch Office Connectivity

Companies with satellite offices or remote work sites use this managed Gigabit switch to extend enterprise network capabilities to distributed locations. The SFP uplinks prove particularly valuable for connecting branch offices to headquarters over dedicated fiber links, providing secure, high-speed connectivity for business applications. Additionally, the Cisco Business Dashboard enables remote configuration and monitoring, thereby reducing the need for on-site technical visits and minimizing travel expenses. Network administrators can troubleshoot connectivity issues and update firmware from headquarters, significantly reducing response times to network problems. Furthermore, the switch’s high MTBF rating ensures reliable operation in remote locations where immediate service would be challenging.

Educational Classrooms

Individual classrooms and computer labs benefit from dedicated network infrastructure supporting teacher workstations, interactive whiteboards, IP phones, wireless access points, and networked projectors. Importantly, the fanless operation ensures students aren’t distracted by equipment noise during instruction, maintaining a conducive learning environment. Teachers can connect multiple PoE-powered devices without worrying about available power outlets or cable management challenges. Additionally, 802.1X authentication ensures only authorized devices access the school network, thereby protecting student data from unauthorized access and meeting educational privacy requirements. Network administrators value the time-based PoE scheduling, which automatically powers down classroom equipment overnight to conserve energy and reduce operating costs.

Healthcare Exam Rooms

Medical facilities install these silent network switches in exam rooms to support IP phones, wireless access points for EMR tablets, patient monitoring devices, and networked medical equipment. Specifically, the fanless operation maintains a calm patient environment without mechanical noise that could cause anxiety or disrupt consultations. Meanwhile, VLAN segmentation keeps medical records traffic separate from guest WiFi, meeting HIPAA privacy requirements and protecting patient information. The switch’s compact dimensions fit in small equipment closets or mounted behind registration desks where space is limited. In addition, the switch’s exceptional reliability minimizes downtime that could impact patient care quality.

Hospitality Guest Services

Hotels and conference centers deploy this PoE switch to power IP phones in guest rooms, wireless access points in common areas, digital signage displays, and security cameras throughout the facility. The 120W PoE budget supports typical floor-level installations with phones, access points, and cameras without requiring multiple switches per floor. Moreover, guest VLAN functionality provides secure internet access for visitors while isolating their traffic from property management systems and payment processing. Property managers benefit from the intuitive management interface, which simplifies network monitoring without requiring dedicated IT staff. Furthermore, the limited lifetime warranty provides long-term investment protection for infrastructure that often remains in service for decades.

Installation & Compatibility

What’s Included in the Box

This Cisco small business switch includes mounting hardware for both desktop and rack installation in the package. The compact dimensions allow flexible placement on desktops, in shallow equipment racks, or mounted behind reception areas. Additionally, the universal internal power supply accepts 100-240V input, making it suitable for international deployments without external adapters or voltage converters.

Compatible with Cisco SFP Modules

The two SFP uplink ports provide flexibility for backbone connections—install fiber transceivers for long-distance links or use copper Gigabit SFP modules when appropriate. Common fiber modules include GLC-LH-SMD for 10km single-mode connections and MGBSX1 for 550m multimode links. Moreover, supported modules include GLC-SX-MMD, MGBLX1, MGBLH1, MGBT1, GLC-BX-U, GLC-BX-D, and GLC-TE, providing comprehensive connectivity options for various deployment scenarios.

Works with Cisco Business Dashboard

Initial configuration requires connecting to the console port via USB Type-C cable (included) or traditional RJ-45 console cable. Furthermore, the switch supports zero-touch deployment through Cisco Network Plug and Play when connected to networks with DHCP and internet access. Moreover, configuration files are text-editable, enabling rapid deployment across multiple locations by copying and modifying settings. This enterprise-class access switch integrates seamlessly with existing Cisco infrastructure while providing professional-grade features at an affordable price point ideal for growing businesses seeking reliable network infrastructure.
