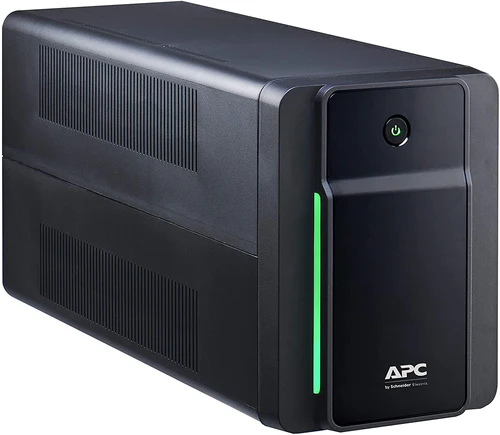

APC 1600VA Back-UPS (BX1600MI)

The APC 1600VA Back-UPS (BX1600MI) delivers reliable power protection for home offices, small businesses, and workstation environments with 1600VA/900W capacity. This standby UPS system provides battery backup and surge protection for desktop computers, monitors, networking equipment, and peripheral devices during power outages and electrical disturbances. Designed for cost-effective protection, it combines essential backup power features with user-friendly operation in a compact tower design.

Technical Specifications

Power Output

• Rated Capacity: 1600VA / 900W
• Topology: Standby (Offline) with Automatic Voltage Regulation
• Output Waveform: Stepped Approximation to Sine Wave
• Input Voltage: 230V AC (nominal)
• Input Voltage Range: 160-278V AC (with AVR)
• Output Voltage: 230V AC ±10% (on battery)

Battery Performance

• Battery Type: Maintenance-free sealed lead-acid (VRLA)
• Typical Runtime: 5-10 minutes at full load, extended duration at partial loads
• Recharge Time: 8 hours to 90% capacity after complete discharge
• Battery Life Expectancy: 3-5 years under normal operating conditions
• User Replaceable Battery: Field-serviceable without tools or shutdown requirement

Physical Design

• Form Factor: Vertical tower design for floor or desk placement
• Dimensions: 101mm (W) x 288mm (H) x 328mm (D)
• Unit Weight: Approximately 10 kg including battery
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 0-95% relative humidity, non-condensing
• Cooling: Passive convection (fanless operation for silent performance)

Connectivity Features

• Battery Backup Outlets: 4x IEC 320 C13 receptacles with backup and surge protection
• Surge-Only Outlets: 4x IEC 320 C13 receptacles with surge protection only
• USB Communication Port: Type B connector for computer connectivity
• Software Included: PowerChute Personal Edition for Windows and macOS
• LED Indicators: Multi-color status display for power conditions and battery level

Protection Characteristics

• Surge Protection: Integrated MOV-based surge suppression on all outlets
• Surge Energy Rating: Multi-joule capacity for transient overvoltage absorption
• Noise Filtering: EMI/RFI filtration reduces electrical interference
• Transfer Time: 4-8ms typical (suitable for modern power supplies)
• Overload Protection: Automatic circuit breaker prevents damage from excessive loads

Standards Compliance

• Safety Certifications: IEC/EN 62040-1 approved
• EMC Standards: IEC/EN 62040-2 compliant
• Connected Equipment Protection: Equipment damage coverage through APC protection policy
• Warranty: Standard 2-year manufacturer warranty

Use Cases & Applications

Home Office Workstations

Remote workers and freelancers rely on the BX1600MI to protect desktop computers, monitors, and internet modems from unexpected power loss during critical work sessions. The automatic shutdown capability prevents data loss when working away from the desk, ensuring documents and projects remain safe during unattended outages.

Small Business Desktops

Companies equip employee workstations with this UPS to maintain productivity during brief power interruptions common in commercial buildings. The battery backup provides time to complete current transactions, save work in progress, and communicate with IT staff before shutting down.

Point-of-Sale Terminals

Retail environments use the Back-UPS to protect checkout computers, receipt printers, and payment terminals from sudden power loss that could interrupt transactions or corrupt sales data. The compact footprint fits easily beneath counters without consuming valuable retail space.

Gaming and Entertainment Systems

Enthusiast gamers protect high-performance PCs and gaming consoles from power-related shutdowns that cause game progress loss or system file corruption. Additionally, the stepped sine wave output works reliably with modern switching power supplies found in contemporary gaming hardware.

Network Equipment Protection

Home and small office networks benefit from UPS backup for cable modems, DSL routers, wireless access points, and network switches. Maintaining internet connectivity during brief outages enables continued access to cloud services, VoIP communications, and remote monitoring systems.

Creative Workstations

Content creators working with video editing, graphic design, or audio production software need protection from power interruptions that corrupt project files or cause render failures. The BX1600MI provides sufficient runtime to save large files and properly close resource-intensive applications during power events.
