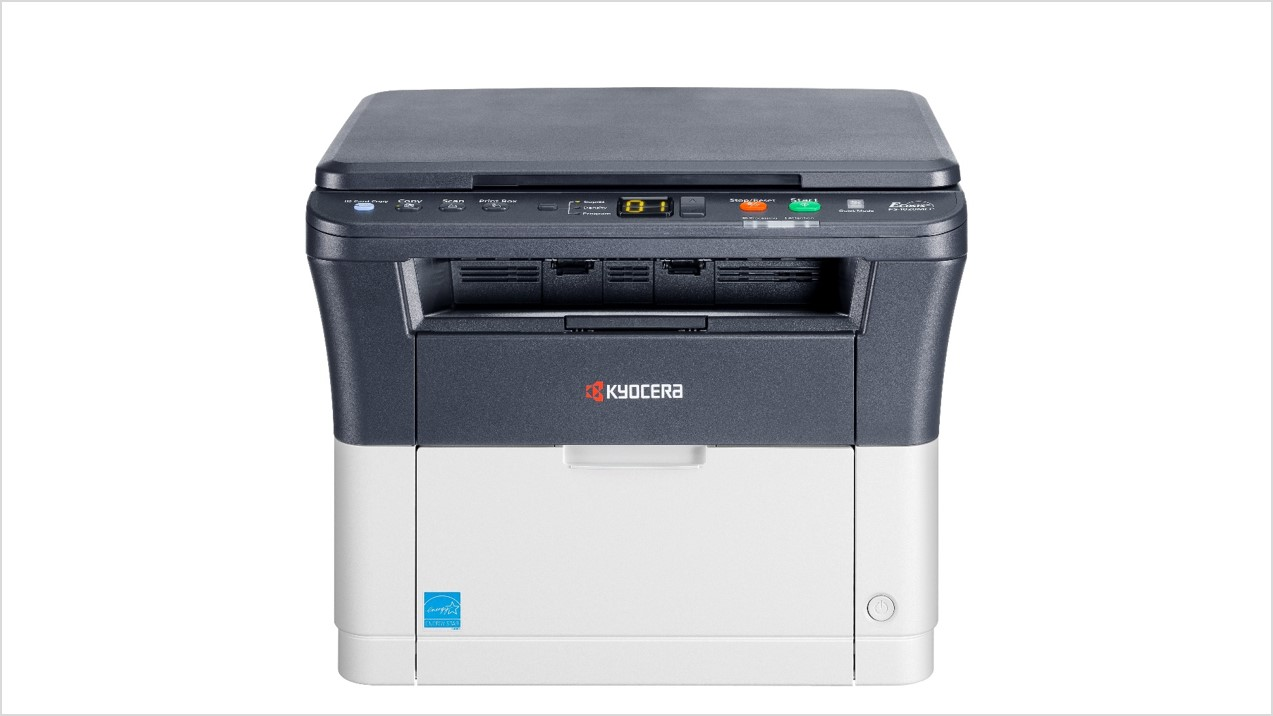

Kyocera ECOSYS FS-1025MFP Mono Laser Multifunction Printer
The Kyocera ECOSYS FS-1025MFP is an A4 monochrome laser multifunction printer that combines printing, copying, and colour scanning in one compact desktop unit. It targets small-to-medium workgroups that need reliable, shared document output at a low running cost. Additionally, wired network connectivity as standard means the device integrates into an existing office network without extra hardware.
Technical Specifications
General
| Attribute | Detail |
|---|---|
| Type | A4 Monochrome Laser MFP |
| Functions | Print, Copy, Colour Scan |
| Control Panel | 2-line LED display |
| CPU | ARM 390 MHz |
| Memory | 64 MB standard |
| Monthly Duty Cycle | Up to 20,000 pages |
| Warm-up Time | Approx. 23 seconds or less |
| First Page Out (Print) | Approx. 7.5 seconds or less |
| First Page Out (Copy) | Approx. 13 seconds |
Print Performance
| Attribute | Detail |
|---|---|
| Engine Speed | Up to 25 ppm (A4, black) |
| Print Resolution | 1,800 × 600 dpi (1,200 dpi quality) |
| Controller Language | Host-based |
| Features | Print Box |
Copy Functions
| Attribute | Detail |
|---|---|
| Max. Original Size | A4 / Legal |
| Continuous Copying | 1–99 copies |
| Zoom Range | 25–400% in 1% steps |
| Preset Ratios | 4 reductions / 4 enlargements |
| Image Modes | Text + Photo, Text, Photo |
| Copy Features | Scan-once-copy-many, electronic sort, 2-in-1, 4-in-1, ID card copy, program, density control |
Colour Scan Functions
| Attribute | Detail |
|---|---|
| Scan Interface | TWAIN (USB), WIA |
| Scan Speed | 18 ipm (300 dpi, A4, B/W); 6 ipm (300 dpi, A4, colour) |
| Scan Resolution | 200, 300, 400, 600 dpi (256 greyscales per channel) |
| Max. Scan Size | A4, Legal |
| File Formats | BMP, TIFF, JPG, PDF, PNG |
| Compression | MMR |
Paper Handling
| Attribute | Detail |
|---|---|
| Main Input Cassette | 250 sheets; 60–220 g/m²; A4, A5, A6, B5, Letter, Legal, Custom (70×148–216×356 mm) |
| Manual Feed Tray | 1 sheet; same size and weight range |
| Max. Input (with options) | 251 sheets |
| Output Capacity | 100 sheets face-down |
| Duplex | Automatic; 60–120 g/m²; A4, Letter, Legal |
| Document Processor | 40-sheet ARDF; up to 216×356 mm |
| Platen Glass | Up to 216×297 mm |
Connectivity
| Attribute | Detail |
|---|---|
| USB | USB 2.0 Hi-Speed |
| Network | Fast Ethernet 10/100BaseTX |
| Wireless | Not supported |
Power & Acoustics
| Attribute | Detail |
|---|---|
| Power Source | AC 220–240 V, 50/60 Hz |
| Copying/Printing | 342 W (copy) / 348 W (print) |
| Ready Mode | 7 W |
| Sleep Mode | 3 W |
| Noise — Normal Mode | 50 dB(A) |
| Noise — Quiet Mode | 49 dB(A) |
| Standby (Ready) | 29 dB(A) |
Physical
| Attribute | Detail |
|---|---|
| Dimensions (W × D × H) | 390 × 361 × 362 mm |
| Weight | Approx. 10 kg |
| Safety Standards | CE |
Consumables
| Item | Yield |
|---|---|
| TK-1120 Toner (standard) | Up to 3,000 pages A4 |
| Starter Toner (included) | Approx. 1,000 pages A4 |
OS Compatibility
Windows XP, Vista, 7, 8, Server 2003, Server 2008, Server 2008 R2
Warranty
1 year as standard
