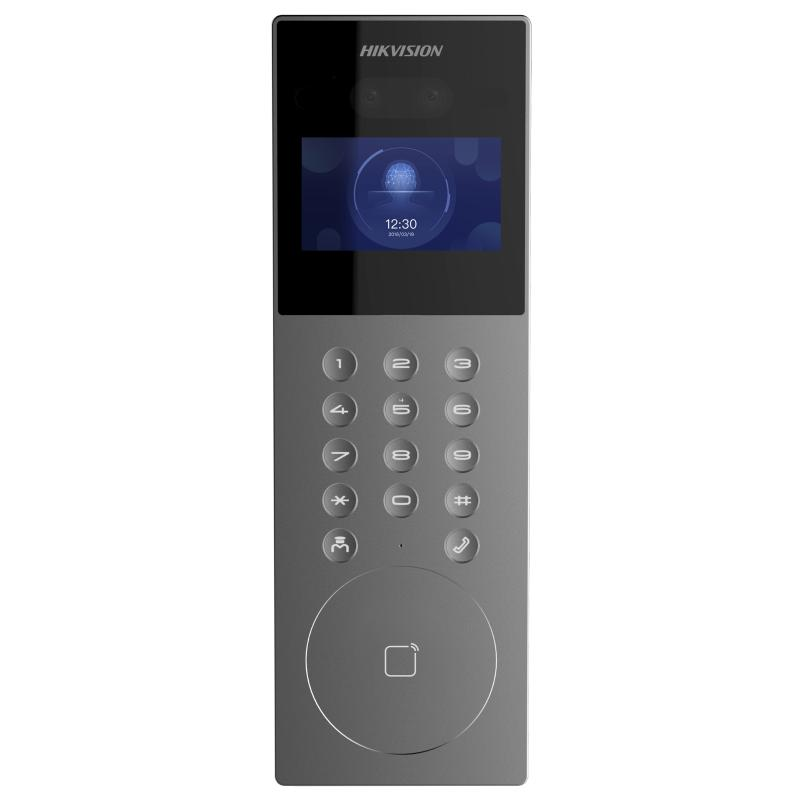

Hikvision DS-KD9203-E6 – Face Recognition Door Station with 4.3-inch Screen
The Hikvision DS-KD9203-E6 Kenya listing covers an apartment-style IP door station that adds face recognition to video intercom. Specifically, residents walk up and the panel opens the door once it recognises their face. As a result, they no longer need to carry a card or remember a PIN at the main entrance.
Meanwhile, the panel stores 5,000 faces, 50,000 cards, and 10,000 users. In addition, residents who prefer another method can tap an M1 card or enter a PIN code. A 4.3-inch colour LCD (800 × 480) guides visitors as they call a flat.
Furthermore, two 2 MP wide-angle lenses capture each caller, while 120 dB digital WDR and IR light up to 3 m keep faces clear against bright skies and at night. The panel connects over a Gigabit Ethernet port and supports remote configuration through a web browser. For instance, a property manager can update settings without visiting the gate.
Notably, the station runs on 12 VDC / 1.5 A and installs flush in the wall. Its IP65 housing works outdoors from -30°C to 60°C. A lock relay (30 VDC, 2 A) releases the entrance door directly. For indoor stations, power supplies, and locks to pair with it, browse our full Hikvision catalogue.
Technical Specifications
System & Display
| Specification | Details |
|---|---|
| Model | DS-KD9203-E6 |
| Product Type | Face Recognition Door Station with 4.3-inch Screen |
| Operating System | Linux |
| ROM / RAM | 1 GB / 4 GB (as listed in datasheet) |
| Processor | Embedded high-performance processor |
| Screen Size | 4.3-inch |
| Display Type | Colour LCD |
| Resolution | 800 × 480 |
Video & Audio
| Specification | Details |
|---|---|
| Camera | 2 × 2 MP wide-angle HD lenses |
| Main Stream | 1080p@30fps, 720p@30fps |
| Sub Stream | VGA@25fps, VGA@30fps |
| WDR | Digital WDR, 120 dB |
| Supplement Light | IR, up to 3 m |
| Video Compression | H.264 |
| Audio Input / Output | 1 built-in omnidirectional microphone / 1 built-in loudspeaker |
| Audio Compression | G.711U, G.711A; 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume | Adjustable |
Authentication & Capacity
| Specification | Details |
|---|---|
| Unlock Methods | Face, card, PIN code |
| Card Reader | Built-in M1 card reading module |
| User Capacity | 10,000 |
| Face Capacity | 5,000 |
| Card Capacity | 50,000 |
Network & Interfaces
| Specification | Details |
|---|---|
| Network Protocols | TCP/IP, RTSP |
| Network Interface | 1 × RJ-45, 10/100/1000 Mbps self-adaptive |
| Wi-Fi / Bluetooth / 3G/4G | Not supported |
| Configuration | Remote web configuration |
| Lock Control | 1 relay, max. 30 VDC 2 A |
| Exit Button | 1 |
| Door Contact Input | 1 |
| Alarm Input | 4 |
| RS-485 | 2 (half duplex) |
| Wiegand | Listed in key features; not listed in the interface table |
| Tamper | 1 |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 12 VDC / 1.5 A |
| Power Consumption | ≤ 13 W |
| Working Temperature | -30°C to 60°C (-22°F to 140°F) |
| Working Humidity | 10% to 90% (non-condensing) |
| Protective Level | IP65 |
| Application Environment | Outdoor |
| Installation | Flush mounting |
| Dimensions (W × H × D) | 373 mm × 124 mm × 43.7 mm (14.69″ × 4.88″ × 1.72″) |
| Net Weight | 0.995 kg |
| Gross Weight | 1.592 kg |
| Languages | English, Traditional Chinese, Arabic, Portuguese (Brazil), Russian, Spanish, Turkish, Vietnamese |
| Optional Accessories | DS-KAW50-1, DS-KAW50-1N 50 W 12 V power adapters |
