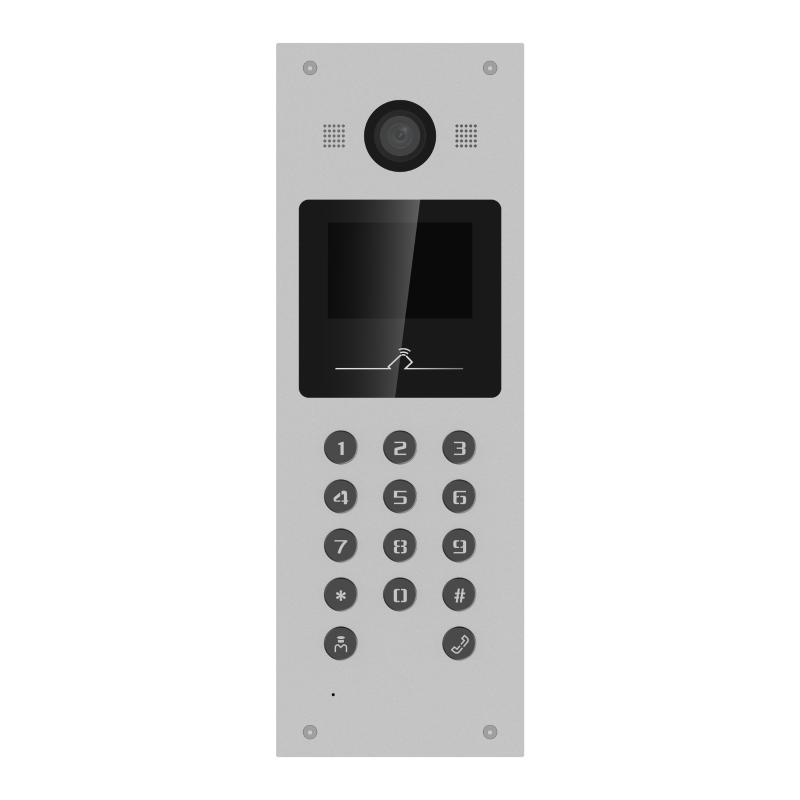

Hikvision DS-KD3003-E6 – 3.5-inch IP Apartment Door Station
The Hikvision DS-KD3003-E6 Kenya listing covers an IP video intercom door station with a 3.5-inch colour LCD and a physical-button keypad. Specifically, visitors dial a flat number on the keypad, and the panel calls that unit’s indoor station. As a result, one entrance panel can serve up to 500 indoor stations.
Meanwhile, a 2 MP HD camera with a 132° diagonal view shows each caller clearly, even when they stand to one side. In addition, WDR and low-light IR illumination keep faces visible against bright sky and after dark. Residents can also skip the call and enter with a card or PIN code, with storage for 10,000 users.
Furthermore, the panel connects over a Gigabit Ethernet port and supports remote configuration through a web browser. It drives two locks, so a single panel can release both a pedestrian gate and a lobby door. It also offers 6 alarm inputs, 2 alarm outputs, 2 RS-485 ports, and Wiegand for wider security systems.
Notably, the station runs on 12 VDC and installs flush in the wall. Its IP65-rated housing works outdoors from -40°C to 55°C. For indoor stations, power supplies, and locks to pair with it, browse our full Hikvision catalogue.
Technical Specifications
System & Display
| Specification | Details |
|---|---|
| Model | DS-KD3003-E6 |
| Product Type | Video Intercom Door Station with 3.5-inch Screen |
| Operating System | Embedded Linux |
| Flash / RAM | 4 GB / 512 MB |
| Processor | Embedded processor |
| Screen Size | 3.5-inch |
| Display Type | Colour LCD |
| Resolution | 480 × 320 |
| Operation Method | Display screen and physical buttons |
Video & Audio
| Specification | Details |
|---|---|
| Camera | 2 MP HD |
| Field of View | Horizontal 70°, vertical 118°, diagonal 132° |
| WDR | Supported |
| Supplement Light | Low-illumination and IR |
| Main Stream | 1920 × 1080 (1080p), 720p |
| Sub Stream | 640 × 480 |
| Video Compression | H.264 |
| Audio Input / Output | Built-in omnidirectional microphone / built-in loudspeaker |
| Audio Compression | G.711U, G.711A; 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume | Adjustable |
Authentication & Capacity
| Specification | Details |
|---|---|
| Unlock Methods | Card, PIN code |
| User Capacity | 10,000 |
| Linked Indoor Station Capacity | 500 |
Network & Interfaces
| Specification | Details |
|---|---|
| Network Protocols | TCP/IP, RTSP |
| Wired Network | 1 × RJ-45, 10/100/1000 Mbps self-adaptive |
| Configuration | Remote web configuration |
| Lock Control | 2 |
| Exit Button | 2 |
| Door Contact Input | 2 |
| Alarm Input | 6 |
| Alarm Output | 2 |
| RS-485 | 2 |
| Wiegand | 1 |
| Tamper | 1 |
| Power Interface | 1 |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 12 VDC |
| Power Consumption | ≤ 10 W |
| Working Temperature | -40°C to 55°C (-40°F to 135°F) |
| Working Humidity | 10% to 95% |
| Protective Level | IP65 |
| Application Environment | Outdoor |
| Installation | Flush mounting |
| Dimensions | 357.3 mm × 124.3 mm × 55.3 mm (14.07″ × 4.89″ × 2.18″) |
| Net Weight | 1.05 kg (per datasheet – confirm with supplier) |
| Gross Weight | 2.166 kg (per datasheet – confirm with supplier) |
