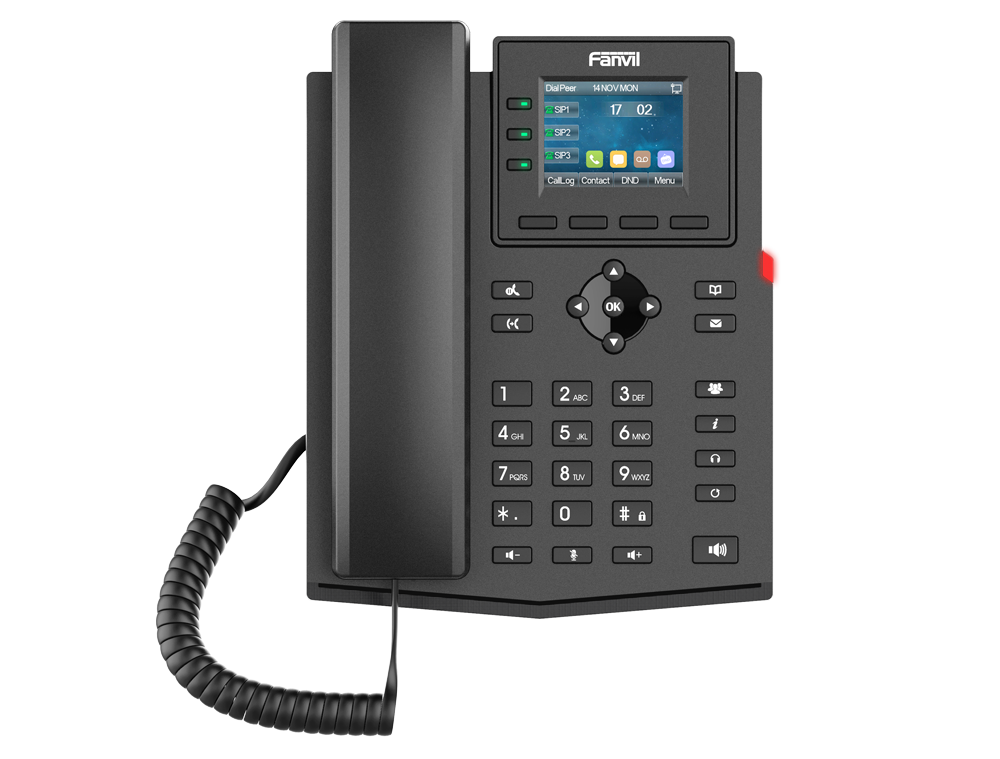

Fanvil x303w WiFi Phone

Display & Interface

• Screen: 2.4-inch color LCD (320x240 pixels)
• Keypad: 36 keys total
  • 4 soft keys
  • 3 programmable line keys with LED indicators
  • 9 function keys (Hold, Transfer, Voice message, Conference, Phonebook, MWI, Headset, Redial, Hands-free)
  • 4 navigation keys + 1 OK key
  • 12 standard phone digit keys
  • 3 volume control keys (Up/Down/Mute)
• Status Indicator: 1 red LED

WiFi Specifications

• 2.4GHz: 802.11 b/g/n
• 5GHz: 802.11 a/n/ac
• Encryption: WPA/WPA2-PSK/802.1X EAP

SIP & Telephony

• SIP Lines: 4 simultaneous accounts
• Protocols: SIP 2.0 over UDP/TCP/TLS
• Conferencing: 6-way local audio conference

Audio Codecs

Narrowband: G.711a/u, G.723.1, G.726, G.729A/B, iLBC Wideband: G.722, Opus Audio Processing:

• Wideband ADC/DAC with 16KHz sampling
• HD Voice (0-7KHz frequency response)
• Full-duplex Acoustic Echo Cancellation (AEC)
• Voice Activity Detection (VAD)
• Comfort Noise Generation (CNG)
• Background Noise Estimation (BNE)
• Noise Reduction (NR)
• Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• VQM voice quality monitoring

Network & Connectivity

• Ethernet: Dual 10/100 Mbps ports (1 for network, 1 bridged for PC)
• PoE: IEEE 802.3af supported
• IP Mode: IPv4/IPv6 dual-stack
• IP Configuration: Static IP, DHCP, PPPoE
• VPN: L2TP, OpenVPN
• VLAN: 802.1p/Q supported
• QoS: Supported
• Network Access: 802.1x authentication
• LLDP: Supported
• Security: SRTP, TLS, AES128 & AES256

Ports & Connections

• 2x RJ9 ports (1 for handset, 1 for headset)
• 2x RJ45 Ethernet ports (network + PC passthrough)
• 1x DC power input (5V/1A)
• 1x Security slot (Kensington lock)

Power Consumption

• With Adapter: 1.218~2.39W
• With PoE: 2.12~3.49W
• Power Input: DC 5V / 1A

Phonebook & Storage

• Local Phonebook: 1,000 entries
• Remote Phonebook: XML/LDAP, 1,000 entries
• Call Logs: 600 entries (In/Out/Missed)
• Blocked/Allowed Lists: Supported

Headset Support

• Plantronics wireless headsets (via APD-80 EHS cable)
• Jabra wireless headsets (via Fanvil EHS20 EHS cable)
• Wired headsets via RJ9 port

Provisioning & Management

• Auto-provisioning: FTP/TFTP/HTTP/HTTPS/DHCP Option 66/SIP PNP/TR-069
• Web management portal
• Web-based packet dump
• Configuration export/import
• Phonebook import/export
• Remote firmware upgrade
• Syslog support

Physical Dimensions

• Desktop Stand (45°): 169 x 201.1 x 177.4 mm
• Desktop Stand (50°): 169 x 191.9 x 185.8 mm
• Wall Mounted: 169 x 120.1 x 213.7 mm
• Gift Box: 250 x 220 x 55 mm
• Outer Carton: 460 x 300 x 270 mm (10 units)
• Net Weight/Carton: 8.98 kg
• Gross Weight/Carton: 9.69 kg

Environmental

• Operating Temperature: 0~45°C
• Operating Humidity: 10~95%

Package Contents

• X303W phone unit
• Handset with RJ9 cable
• 1.5m Cat5e Ethernet cable
• Desktop stand
• Power adapter (5V/1A)
• Quick installation guide

Color

• Black
