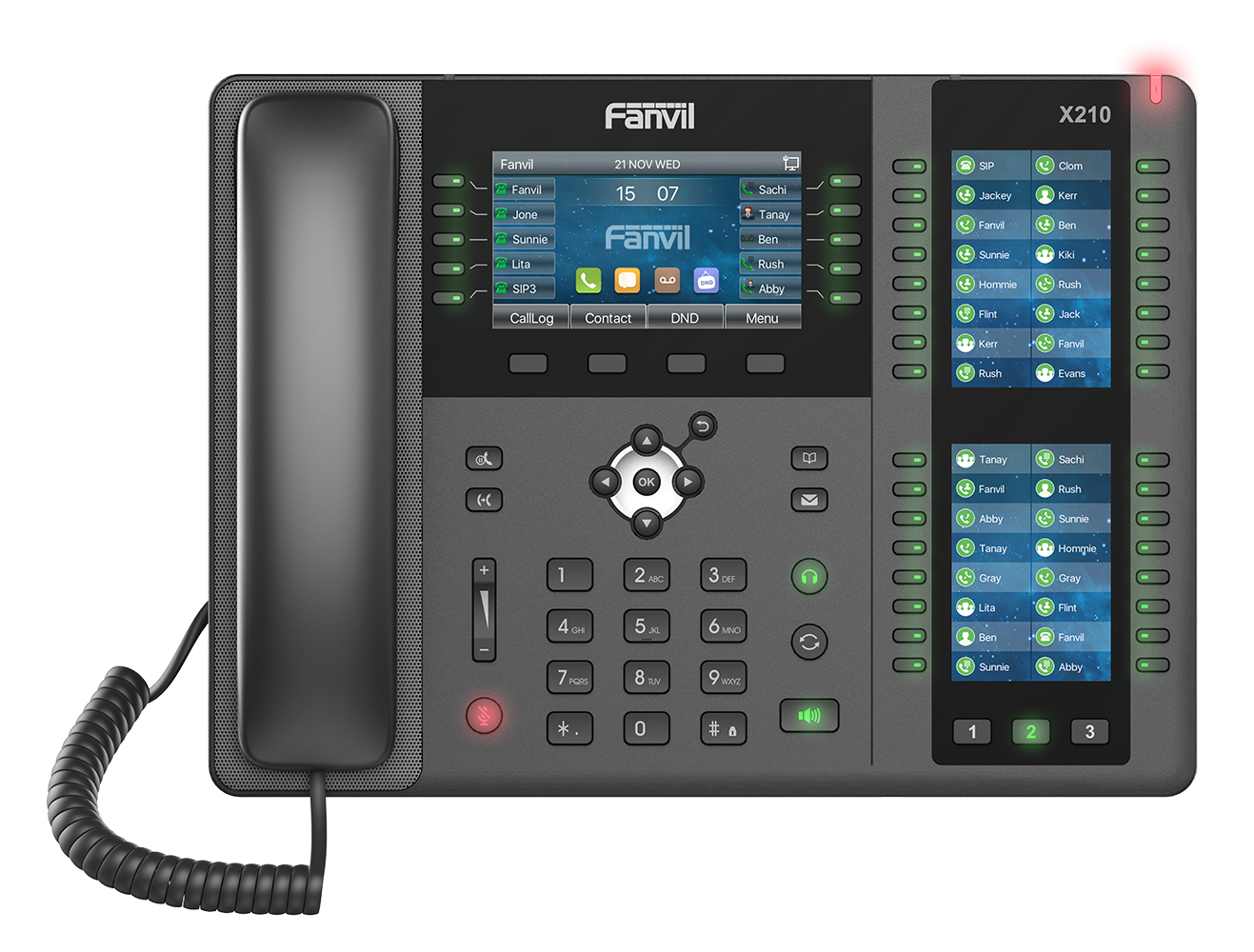

FANVIL X210 IP PHONE

The Fanvil X210 is a sophisticated enterprise IP phone designed for business managers, executives, and professionals who handle medium to high call volumes. This advanced communication device combines powerful functionality with an intuitive interface, making it ideal for reception areas, call centers, and executive offices.

Display System

The X210 features a comprehensive triple-display configuration. The primary 4.3-inch color touchscreen (480 x 272 resolution) serves as the main interface, while two additional 3.5-inch side displays (320 x 480 resolution each) are dedicated to DSS key management. This design provides exceptional visibility and intuitive access to all functions, with screen saver support included.

Programmable DSS Keys

The phone offers up to 106 programmable DSS keys in total—10 on the main display with LED indicators, and 42 physical tri-color LED keys on the side displays. Through 3-page switching, users can access 96 additional DSS keys. These can be customized for BLF monitoring, speed dial, group broadcasting, and other productivity shortcuts.

Keypad & Controls

The 77-key layout includes 4 soft keys, 6 function keys (Hold, Call Forward, Phonebook, MWI, Headset, Redial), 4 navigation keys, 12 digit keys, 3 volume control keys, plus dedicated OK, Return, and hands-free keys.

SIP & Call Features

Supporting 20 SIP lines simultaneously, the X210 includes 3-way conferencing, call waiting, call forwarding (Always/Busy/No Answer), call transfer (attended/unattended), call parking/pickup, caller ID, intercom, Do-Not-Disturb, auto-answering, speed dial, and hot desking. The hotspot function allows it to operate as a mini PBX for small office solutions.

Audio Technology

The phone delivers HD Voice (0-7 kHz frequency response) through HAC-certified handset and hands-free modes. It features a premium Harman speaker with enhanced low-frequency response, full-duplex acoustic echo cancellation, and advanced audio processing including VAD, CNG, BNE, noise reduction, packet loss concealment, and dynamic adaptive jitter buffer up to 300ms.

Audio Codecs

Narrowband codecs include G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, and iLBC. Wideband codecs include G.722, AMR-WB, and Opus for superior voice quality.

Video Integration

H.264 codec support enables receiving video calls at QCIF/CIF/VGA resolutions. The phone integrates with IP cameras and SIP video door phones, allowing two-way video conversations, security monitoring, and remote door unlocking directly from the desk phone.

Connectivity

Dual Gigabit Ethernet ports (10/100/1000 Mbps) with PC bridging, integrated PoE 802.3at, built-in Bluetooth 4.2, and Wi-Fi capability via optional USB dongle (WF20). One USB 2.0 Type A port supports Wi-Fi dongles, flash drives, or other accessories.

Ports & Interfaces

Two RJ9 ports (handset and headset), two RJ45 ports (network and PC bridge), one USB 2.0 port, and DC power input (5V/2A).

Network Protocols

SIP 2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, IPv4/IPv6 support, Static/DHCP/PPPoE configuration, VPN (L2TP/OpenVPN), VLAN, LLDP, QoS, 802.1x, STUN, RTCP-XR, SNTP, FTP/TFTP, HTTP/HTTPS, and TR-069.

Headset Compatibility

Built-in Bluetooth 4.2 for wireless headsets, EHS support for Plantronics (via APD-80 cable) and Jabra (via EHS20 cable) wireless headsets, plus standard RJ9 wired headset port.

Contact Management

Local phonebook stores 2,000 entries, remote phonebook (XML/LDAP) supports 2,000 entries, and call logs maintain 1,000 records. Black/white list call filtering and phonebook import/export included.

Additional Features

VMWI (Visual Message Waiting Indication), network time synchronization, call recording (via flash drive or server), Action URL/Active URI, and uaCSTA support for computer-telephony integration.

Power Specifications

PoE 802.3at (2.6-9W consumption) or optional 5V/2A DC adapter (2.4-8W consumption, not included).

Physical Specifications

Dark gray finish with adjustable stand (40° and 50° angles). Dimensions: 309 x 214 x 187 mm (angle 1) or 309 x 226 x 167 mm (angle 2). Operating temperature: 0-45°C. Operating humidity: 10-95%.

Deployment & Management

Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP Option 66/SIP PNP/TR-069, web management portal, packet dump, configuration export/import, firmware upgrade, and syslog support.

Package Contents

X210 IP phone, HD handset, RJ9 handset cord, 1.5m CAT5 Ethernet cable, desktop stand, and quick installation guide (power adapter optional, not included).

Platform Compatibility

Compatible with 3CX, Asterisk, Broadsoft, Metaswitch, Avaya, Elastix, and other major SIP-based platforms.

Applications

Ideal for business executives, receptionists, call center supervisors, security monitoring centers, and small office PBX solutions requiring advanced features and extensive line management capabilities.
