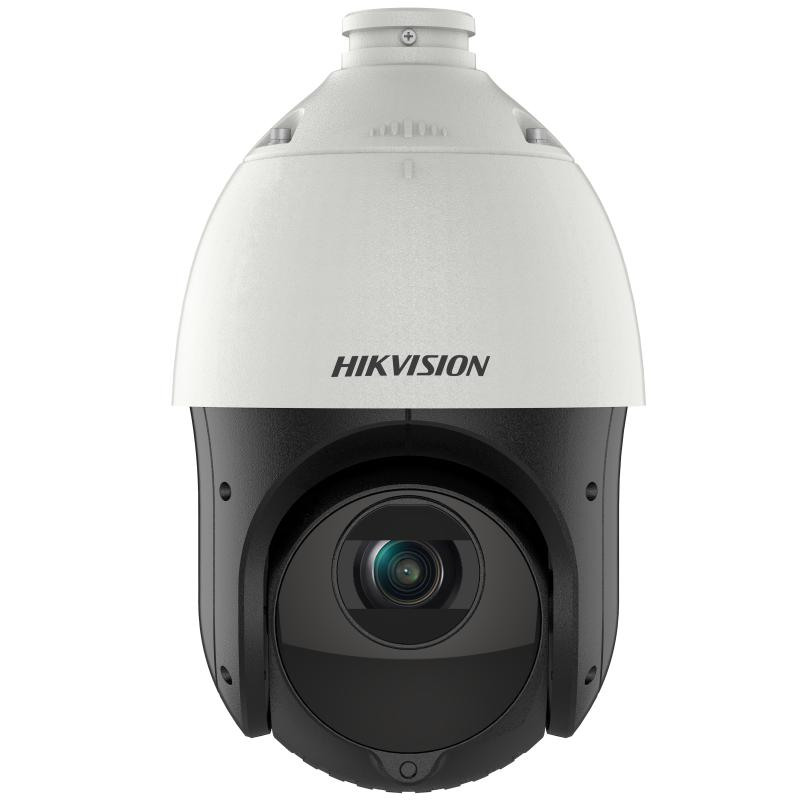

Hikvision DS-2DE4425IW-DE(O-STD)(S6) – 4-Inch 4 MP 25X Powered by DarkFighter IR Network Speed Dome
The Hikvision DS-2DE4425IW-DE(O-STD)(S6) is a 4-inch 4 MP PTZ speed dome built to cover expansive, open sites from a single mounting point. Specifically, it uses a 1/2.8″ progressive scan CMOS sensor paired with a 25× optical zoom lens (4.8–120 mm), so operators pull in detail across long distances instead of installing several fixed cameras. In addition, DarkFighter low-light technology keeps footage clear after dark, and up to 100 m of IR illumination extends that reach further. As a result, this dome suits rivers, roads, and other wide-area sites where reach matters more than close-in coverage.
Meanwhile, the PTZ head pans a full 360° and tilts -15° to 90° with auto-flip, at speeds up to 80°/s. Furthermore, it stores up to 300 presets with 8 patrol scans and 4 pattern scans, so it can sweep multiple points automatically on a schedule. On top of that, the housing carries an IP66 rating with 6000V lightning protection and surge protection, and runs on either 12 VDC or PoE (802.3at). Note that this “no specific protection” model has no anti-corrosion coating, so it isn’t suited to coastal or high-salinity sites without an additional protective variant.
Technical Specifications
Camera & Optics
| Specification | Details |
|---|---|
| Model | DS-2DE4425IW-DE(O-STD)(S6) |
| Camera Type | 4-Inch 4 MP 25X Powered by DarkFighter IR Network Speed Dome |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max Resolution | 2560 × 1440 (4 MP) |
| Lens | 4.8 mm to 120 mm, 25× optical zoom, F1.6 |
| Zoom | 25× optical, 16× digital, approx. 3.6 s zoom speed |
| Field of View | 55° to 2.4° (H, wide-tele); 33° to 1.4° (V); 61.5° to 2.8° (D) |
| Pan Range | 360° continuous, configurable 0.1°–80°/s, preset speed 80°/s |
| Tilt Range | -15° to 90° (auto flip), configurable 0.1°–80°/s |
| DORI Range (Tele) | Detect 2400 m / Observe 952.4 m / Recognise 480 m / Identify 240 m |
| Minimum Illumination | Colour: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON); 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s, slow shutter supported |
| Day/Night | ICR switch, Day/Night/Auto/Scheduled |
| Wide Dynamic Range | 120 dB WDR |
| Signal-to-Noise Ratio | > 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR, defog, regional exposure, regional focus |
| Smart Features | Face detection, intrusion detection, line crossing, region entrance/exiting, unattended baggage, object removal, audio exception detection |
| Privacy Mask | Up to 24 masks, configurable colour |
| IR Distance | Up to 100 m |
| Presets / Patrol / Pattern | 300 presets; 8 patrol scans (up to 32 presets each); 4 pattern scans |
Video & Audio
| Specification | Details |
|---|---|
| Video Compression | H.265+, H.265, H.264, MJPEG; H.264 Baseline/Main/High profile; H.265 Main profile; SVC supported |
| Bit Rate | 32 Kbps to 16,384 Kbps |
| Frame Rate | 50 Hz: 25 fps; 60 Hz: 30 fps, at 2560 × 1440, 1920 × 1080, 1280 × 960, or 1280 × 720 |
| Streams | Main, sub, and third stream; 8 fixed ROI areas per stream |
| Audio | G.711alaw/ulaw, G.722.1, G.726, MP2L2, PCM; 1 audio input, 1 audio output; environment noise filtering |
Network & Storage
| Specification | Details |
|---|---|
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, ISUP |
| API/ONVIF | ISAPI, Hikvision SDK, Open Network Video Interface, CGI, ISUP |
| Ethernet | 1 RJ45 10M/100M self-adaptive port |
| Simultaneous Live View | Up to 20 channels; up to 32 users |
| Software Clients | iVMS-4200, Hik-Connect |
| Security | Authenticated username/password, MAC address binding, HTTPS encryption, 802.1X, IP address filter |
| Network Storage | Built-in microSD/microSDHC/microSDXC slot, up to 256 GB; NAS (NFS, SMB/CIFS) with ANR |
| Alarm I/O | 1 alarm input, 1 alarm output |
| Events | Motion detection, video tampering, smart events listed above; linkage to microSD/NAS recording, alarm output, email, surveillance centre notification, FTP upload |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 12 VDC, or PoE (802.3at) |
| Power Consumption | Max. 18 W, including up to 1.6 W for the heater and 9 W for IR |
| Ingress Protection | IP66, 6000V lightning protection, surge and voltage transient protection — datasheet notes no specific anti-corrosion protection, so avoid coastal or high-salinity sites without an alternate variant |
| Operating Conditions | -30°C to 65°C; humidity below 90% RH |
| Material | ADC12 (die-cast aluminium alloy) |
| Dimensions | Ø 164.5 mm × 290 mm |
| Weight | Approx. 2 kg |
Who This Camera Suits Best
- Long, open perimeters needing sharper detail – for instance, riverbanks, highways, and railway corridors benefit from the 25× zoom, 4MP resolution, and 100 m IR reach, since identification detail holds up further out than on the 2MP variant.
- Sites needing 360° coverage from one pole or mast – because the head pans a full circle with auto-flip, it suits roundabouts, large yards, and open squares where a target can approach from any direction.
- Scheduled patrol across multiple checkpoints – with 300 presets and 8 patrol scans, it suits car parks, industrial estates, and large compounds where the dome should sweep several fixed points without an operator at the controls.
