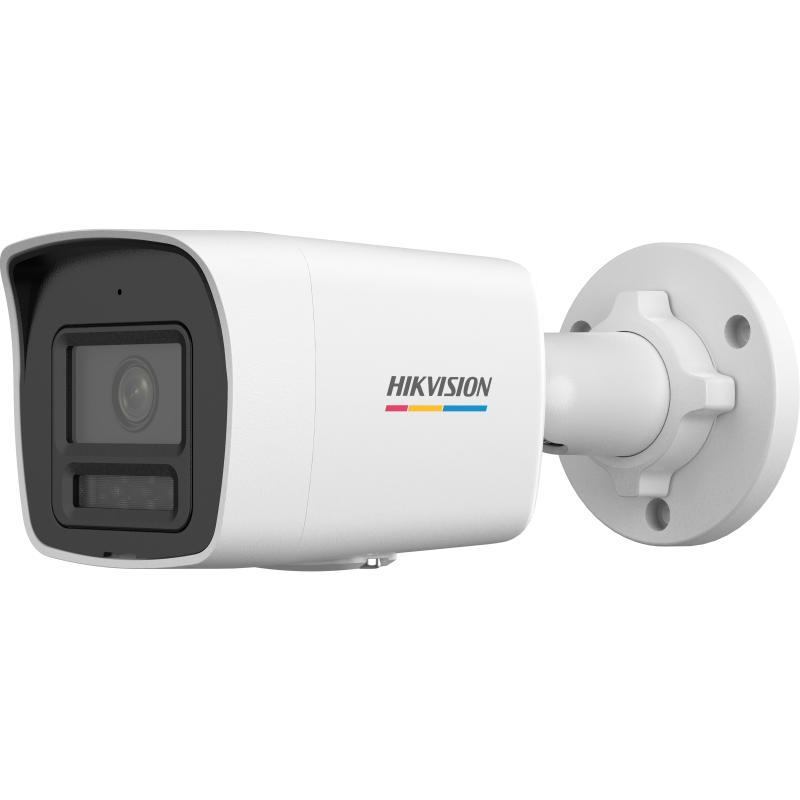

Hikvision DS-2CD1067G2H-LIU(2.8MM) – 6 MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera
The Hikvision DS-2CD1067G2H-LIU is a 6 MP fixed bullet network camera that combines ColorVu imaging with Smart Hybrid Light illumination. Specifically, it uses a 1/2.4″ progressive scan CMOS sensor paired with an F1.0 aperture lens, which keeps colour visible at just 0.001 Lux. As a result, footage stays in full colour after dark, instead of dropping to grainy black-and-white. In addition, the built-in IR and white-light illuminator extends supplementary lighting up to 30 m, so operators get usable detail deep into the night.
Meanwhile, onboard human and vehicle detection classifies motion events rather than triggering on every moving object; consequently, false alerts from leaves, shadows, and small animals drop significantly. Furthermore, the bullet housing carries an IP67 rating for dust and water resistance and operates across a wide -30°C to 60°C range, which suits Kenya’s outdoor conditions year-round. On top of that, either a 12 VDC supply or PoE (IEEE 802.3af) powers the unit, making installation flexible for both new sites and existing PoE networks.
Important note: this is the LIU variant, not LIUF. Therefore, it has no microSD card slot and no reset key, so it depends on an NVR or VMS for recording rather than storing footage locally. Buyers who need on-board storage should instead look at the LIUF version.
Technical Specifications
Camera & Optics
| Specification | Details |
|---|---|
| Model | DS-2CD1067G2H-LIU(2.8mm) |
| Camera Type | 6 MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera |
| Image Sensor | 1/2.4″ Progressive Scan CMOS |
| Max Resolution | 3200 × 1800 (6 MP) |
| Lens | Fixed focal, 2.8 mm, F1.0, M12 mount |
| Field of View | 115° (horizontal), 60° (vertical), 143° (diagonal) |
| Detection / Observation Range (DORI) | Detect: 64 m; Observe: 25 m; Recognize: 12 m; Identify: 6 m |
| Minimum Illumination | Colour: 0.001 Lux @ (F1.0, AGC ON); 0 Lux with supplement light on |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day/Night | IR cut filter with auto switch |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–90°; Rotate: 0°–360° |
Video & Audio
| Specification | Details |
|---|---|
| Wide Dynamic Range | 120 dB WDR |
| Signal-to-Noise Ratio | ≥ 52 dB |
| Smart Features | Human and vehicle detection, motion detection with target-type filtering, video tampering alarm |
| Illumination Type | Smart Hybrid Light – IR (850 nm) and white light |
| Supplement Light Range | Up to 30 m |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG |
| Bit Rate | 32 Kbps to 16 Mbps |
| Frame Rate | 20 fps @ 3200 × 1800 |
| Image Enhancement | BLC, HLC, 3D DNR, up to 4 programmable polygon privacy masks |
| Audio | Built-in microphone, mono sound, 8/16 kHz sampling, G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
Network & Storage
| Specification | Details |
|---|---|
| Network Storage | None on-board — no microSD slot on the LIU variant; requires an NVR/VMS for recording |
| Reset Key | Not fitted (LIU variant) |
| Simultaneous Live View | Up to 6 channels; up to 32 users |
| Network Protocols | IPv4, IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP |
| Security | Password protection, complicated password, watermark, basic and digest authentication, security audit log |
| Software Clients | iVMS-4200, Hik-Connect |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 12 VDC ± 25%, 0.55 A, max. 6.6 W; or PoE (IEEE 802.3af, Class 3, max. 8 W) |
| Ingress Protection | IP67 (dust and water resistant) |
| Operating Conditions | -30°C to 60°C (-22°F to 140°F); humidity 95% or less |
| Material | Front cover: metal; body and bracket: plastic |
| Dimensions | 67.9 mm × 69.8 mm × 172.9 mm (2.7″ × 2.7″ × 6.8″) |
| Weight | Approx. 550 g (1.2 lb.) |
Who This Camera Suits Best
- Retail shops and storefronts needing colour night footage – for instance, ColorVu keeps faces and clothing colours visible after dark, which helps identify shoplifters or visitors at entry points.
- Homes and small offices upgrading to a networked NVR system – since it has no local storage, it fits naturally into sites already running or planning an NVR, meanwhile keeping camera cost down.
- Perimeter and driveway monitoring in variable weather – the IP67-rated bullet housing withstands rain and dust, so it suits outdoor mounting at compound walls, gates, and driveways.
