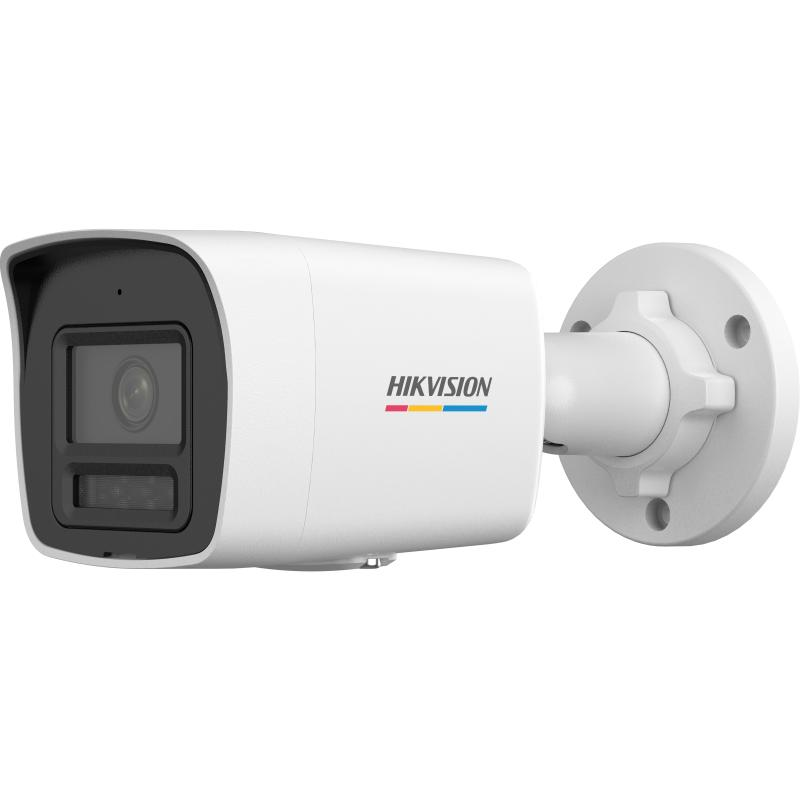

Hikvision DS-2CD1027G2H-LIU(4MM)(O-STD) – 2 MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera
The Hikvision DS-2CD1027G2H-LIU(4MM)(O-STD) is a 2 MP ColorVu fixed bullet network camera built for outdoor and general-purpose surveillance. Specifically, it uses a 1/2.8″ progressive scan CMOS sensor paired with a fixed 4 mm lens, giving a 94° horizontal field of view. As a result, it suits medium-range coverage of gates, walkways, and building perimeters. In addition, its Smart Hybrid Light system combines infrared and white-light illumination, extending supplementary lighting to up to 30 m. Because of this, footage stays usable in colour and black-and-white modes after dark.
Meanwhile, onboard human and vehicle detection classifies motion events instead of triggering on every moving object. This, in turn, cuts down on false alerts from leaves, shadows, or small animals. Furthermore, the housing carries an IP67 rating for dust and water resistance and operates across a -30°C to 60°C range. Either 12 VDC or PoE (IEEE 802.3af) powers it.
Notably, this is the base LIU variant, not the LIUF version. Consequently, it has no microSD card slot and no reset key, so it depends on an NVR or VMS for recording rather than storing footage locally. Buyers who need standalone on-board storage should instead look at the LIUF(4mm) model.
Technical Specifications
Camera & Optics
| Specification | Details |
|---|---|
| Model | DS-2CD1027G2H-LIU(4MM)(O-STD) |
| Camera Type | 2 MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max Resolution | 1920 × 1080 (2 MP) |
| Lens | Fixed focal, 4 mm, F1.0, M12 mount |
| Field of View | 94° (horizontal), 50° (vertical), 110° (diagonal) |
| Detection / Observation Range (DORI) | Detect 77 m / Observe 30 m / Recognize 15 m / Identify 7 m |
| Minimum Illumination | Colour: 0.001 Lux @ (F1.0, AGC ON); 0 Lux with supplement light on |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day/Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360° |
| Wide Dynamic Range | Digital WDR |
| Signal-to-Noise Ratio | ≥ 52 dB |
| Smart Features | Human and vehicle detection, motion detection with target-type filtering, video tampering alarm |
| Illumination Type | Smart Hybrid Light – IR (850 nm) and white light |
| Supplement Light Range | Up to 30 m |
Video & Audio
| Specification | Details |
|---|---|
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG |
| Bit Rate | 32 Kbps to 8 Mbps |
| Frame Rate | Up to 30 fps @ 1920 × 1080 (60 Hz) |
| Image Enhancement | BLC, HLC, 3D DNR, up to 4 programmable polygon privacy masks |
| Audio | Built-in microphone, mono sound, 8/16 kHz sampling, G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
Network & Storage
| Specification | Details |
|---|---|
| On-Board Storage | None (base LIU variant) – recording depends on NVR/VMS; the LIUF(4mm) model adds a microSD slot up to 512 GB |
| Simultaneous Live View | Up to 6 channels; up to 32 users |
| Network Protocols | IPv4, IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP |
| Security | Password protection, complicated password, watermark, basic and digest authentication, security audit log |
| Software Clients | iVMS-4200, Hik-Connect |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 12 VDC ± 25%, 0.45 A, max. 5.4 W; or PoE (IEEE 802.3af, Class 3, max. 6.5 W) |
| Ingress Protection | IP67 (dust and water resistant) |
| Operating Conditions | -30°C to 60°C (-22°F to 140°F); humidity 95% or less |
| Material | Front cover: metal; body and bracket: plastic |
| Dimensions | 172.9 mm × 69.8 mm × 67.9 mm |
| Weight | Approx. 550 g (1.2 lb.) |
Who This Camera Suits Best
- Small business entrances and storefronts – its vehicle and human detection at the 4 mm lens’s medium range suits shop fronts, gates, and customer entry points.
- Residential perimeter and gate monitoring – for instance, the 94° field of view and 30 m supplement light range cover typical home boundaries and compound entrances after dark.
- NVR-based upgrade projects – since it has no on-board storage, it fits sites that already run an NVR or VMS and simply need additional ColorVu camera channels.
