Detailed Specifications

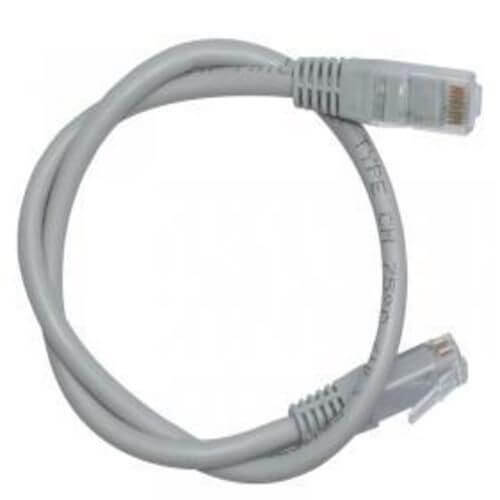

Cable Construction

• Type: 4-pair Unshielded Twisted Pair (UTP)
• Conductor: 24 AWG Bare Copper (solid copper, not CCA)
• Insulation: HD-PE (High-Density Polyethylene)
• Jacket: PVC UL94V-0 (flame-retardant)
• Heat Resistance: 60°C minimum
• Flame Rating: VW-1 (UL) / FT-1 (CSA) standards

RJ-45 Connector Quality

• Plating: 30μ" Gold plated (excellent corrosion resistance)
• Contact Material: Phosphor Bronze
• Housing: Polycarbonate (PC) UL94-V-0
• Temperature Range: -10°C to 80°C
• Dielectric Withstanding: 500V AC
• Insulation Resistance: 35M Ohm max
• Durability: 750 matching cycles
• Tensile Strength: 20 lbs (89N) minimum
• Rating: 250V AC, 2A max

Applications Supported

✓ 10BASE-T / 100BASE-TX / 1000BASE-T (Gigabit Ethernet) ✓ 100VG-AnyLAN (IEEE 802.12) ✓ 550 MHz Broadband Video ✓ Voice, T1, ISDN ✓ 155/622 Mbps ATM ✓ Power over Ethernet (PoE) - Perfect for your U6+ AP!

Certifications & Compliance

• UL 444 (Copper conductor)
• UL 758 / Style 2835
• UL 1581 (Test standard)
• TIA/EIA-568C.2 compliant (verified by ETL)
• CUL listed
• RoHS compliant (environmentally friendly)
