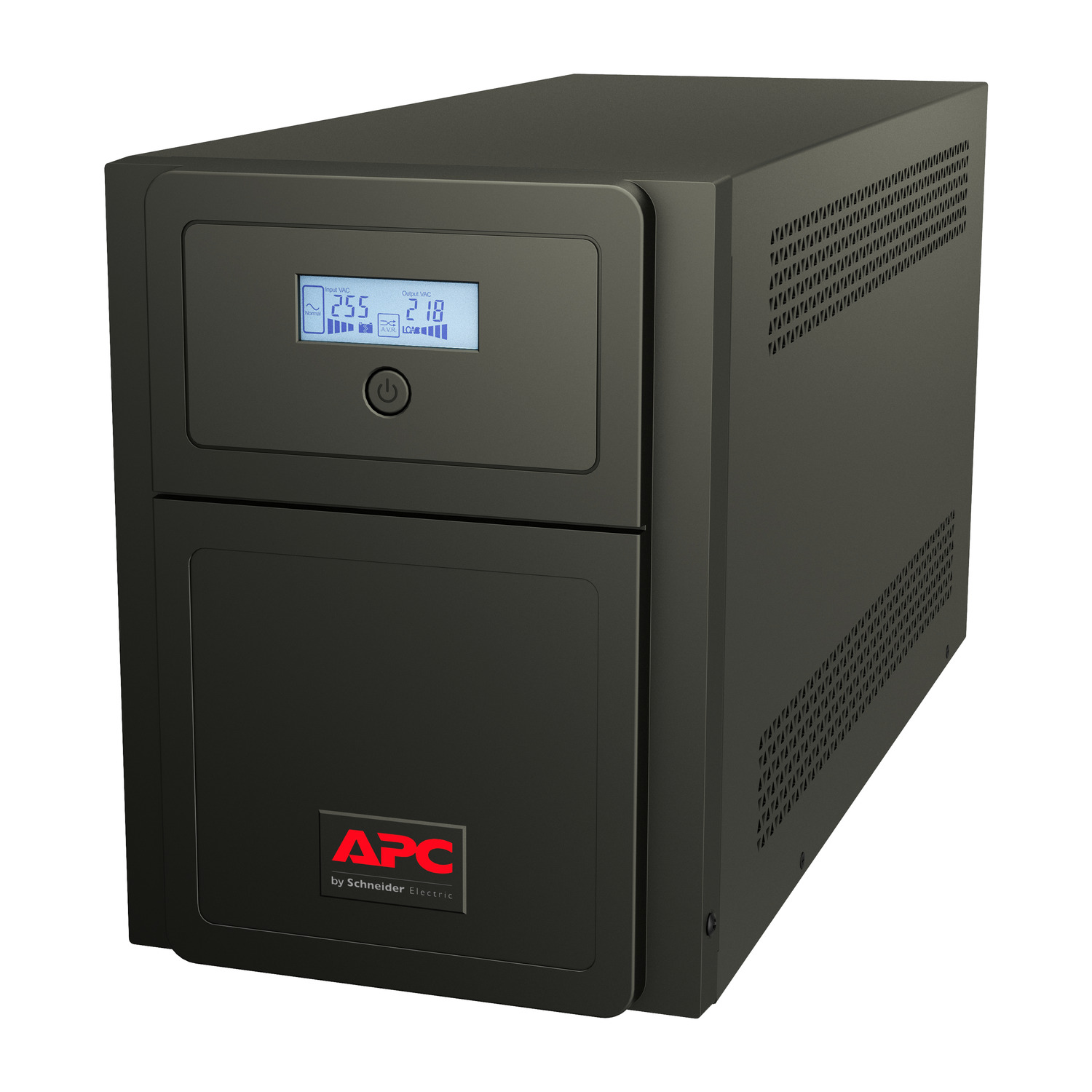

APC 2000VA Easy UPS (SMV2000AI MS)

The APC 2000VA Easy UPS (SMV2000AI MS) provides robust power protection for servers, workstations, and network infrastructure with 2000VA/1400W capacity in a versatile tower design. This line-interactive UPS system features pure sine wave output and automatic voltage regulation to safeguard critical business equipment from power outages, voltage fluctuations, and electrical disturbances. Engineered for small to medium businesses and IT departments, it delivers enterprise-class reliability with user-friendly management capabilities.

Technical Specifications

Power Performance

• Output Capacity: 2000VA / 1400W
• Technology Type: Line-Interactive with Automatic Voltage Regulation
• Output Waveform: Pure Sine Wave (battery mode)
• Input Voltage: 230V AC nominal (single phase)
• Input Voltage Range: 160-286V AC with AVR boost/trim
• Output Voltage: 230V AC ±3% (on battery operation)
• Output Frequency: 50/60 Hz auto-sensing (±0.5 Hz on battery)
• Efficiency Rating: Up to 95% in normal mode

Battery Specifications

• Battery Type: Sealed lead-acid, valve-regulated, maintenance-free
• Typical Runtime: 15-20 minutes at 50% load, 5-8 minutes at full load
• Recharge Duration: 3 hours to 90% capacity following complete discharge
• Battery Life Expectancy: 3-5 years under normal operating conditions
• Hot-Swappable Battery: User-replaceable during operation without shutdown
• Battery Self-Test: Automatic health verification with manual test capability
• Temperature Compensation: Charging adjustment prevents over/undercharging

Physical Design

• Form Factor: Vertical tower suitable for floor or equipment rack placement
• Dimensions: 100mm (W) x 350mm (H) x 310mm (D)
• Unit Weight: Approximately 15 kg with batteries installed
• Operating Temperature: 0°C to 40°C for full rated capacity
• Storage Temperature: -15°C to 45°C without degradation
• Humidity Range: 0-95% relative humidity, non-condensing
• Acoustic Level: Less than 45 dBA at 1 meter distance
• Cooling Method: Forced air with temperature-controlled fan operation

Connectivity and Outlets

• Battery Backup Outlets: 6x universal outlets with full backup and surge protection
• Surge-Only Outlets: 2x universal outlets with surge protection only
• Total Outlets: 8 outlets for comprehensive equipment connectivity
• Communication Port: USB interface for local computer management
• LCD Display: Multi-line backlit display with navigation buttons
• Software Support: PowerChute Personal Edition for automated operations
• SNMP Option: Optional network management card slot for remote monitoring

Protection Systems

• Surge Suppression: High-energy metal oxide varistor protection
• Surge Energy Rating: Multi-thousand joule capacity for robust protection
• EMI/RFI Filtering: Attenuates electrical noise and interference
• Input Protection: Resettable circuit breaker prevents overload damage
• Transfer Time: 2-4ms typical switching speed (imperceptible to equipment)
• Voltage Regulation: ±15% correction range without battery drain
• Overload Protection: Automatic load limiting with audible warnings

Compliance Standards

• Safety Certifications: IEC 62040-1, EN 62040-1 certified
• EMC Standards: IEC 62040-2, EN 62040-2 compliant
• Energy Efficiency: Meets international efficiency standards
• Environmental: RoHS compliant, recyclable components
• Warranty: 2-year standard manufacturer warranty with support services

Use Cases & Applications

Server Room Deployments

The SMV2000AI MS protects tower and small rack-mount servers running business-critical applications including database servers, email systems, ERP software, and virtualization platforms. The 1400W capacity accommodates servers with multiple processors and high-performance components, while the pure sine wave output ensures stable operation of modern server power supplies with active power factor correction.

Network Operations Centers

IT departments rely on this UPS to maintain continuous operation of network infrastructure including core switches, managed switches, routers, firewalls, wireless controllers, and VPN gateways. The advanced LCD interface enables quick assessment of power conditions during troubleshooting, while configurable outlet groups allow prioritized shutdown sequencing for critical versus non-critical network components.

Engineering Workstations

Design professionals working with CAD applications, finite element analysis, computational fluid dynamics, or 3D modeling software need protection from power interruptions that corrupt complex calculations or large assembly files. The extended runtime at partial loads provides adequate time to complete rendering operations or save project files properly during unexpected outages.

Medical Practice Systems

Healthcare facilities protect electronic health record servers, medical imaging workstations, practice management systems, and telemedicine equipment with this UPS to ensure patient data integrity and continuity of care. However, the intelligent battery management extends service intervals between battery replacements, reducing maintenance costs in busy medical environments where downtime impacts patient services.

Financial Services Equipment

Accounting firms, financial advisors, and bookkeeping services deploy the Easy UPS to protect servers running QuickBooks, tax preparation software, financial planning applications, and client data management systems. The pure sine wave output prevents data corruption issues that occur with stepped approximation waveforms, while the extended runtime enables proper transaction completion and database closure during outages.

E-Commerce Operations

Online retailers protect web servers, payment gateway systems, inventory management platforms, and order processing equipment to maintain business continuity during power events. The configurable management features allow customization of shutdown priorities, ensuring customer-facing systems remain operational longest while back-office functions shut down first to extend runtime.

Video Production Workstations

Content creators working with video editing suites, color grading stations, motion graphics systems, and rendering farms require protection from power interruptions that corrupt timeline files or cause render failures. Additionally, the high wattage capacity supports workstations with multiple graphics cards, high-speed storage arrays, and color-calibrated reference monitors that draw substantial power.
