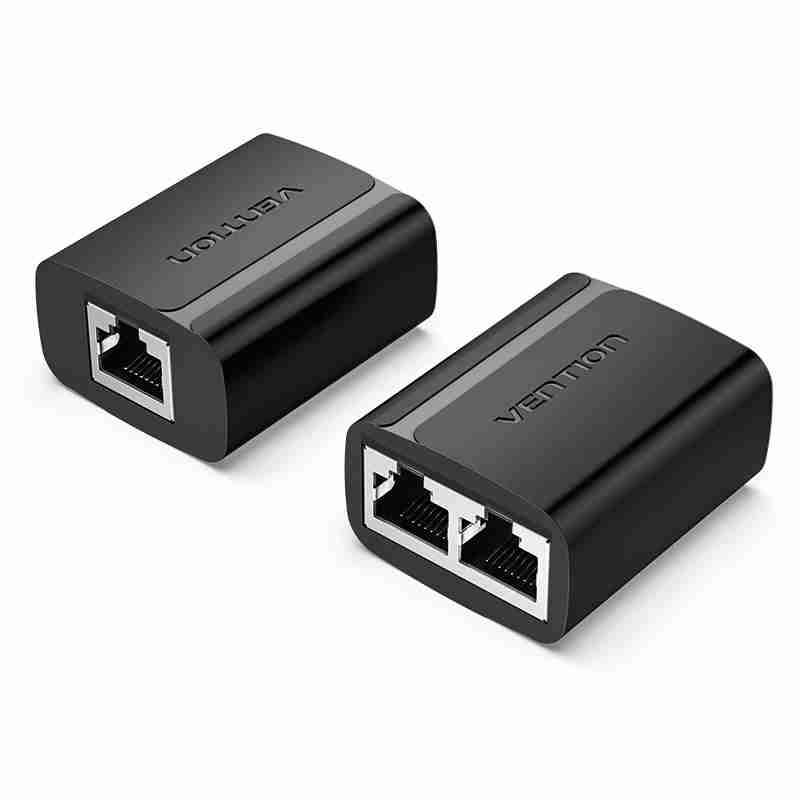

Vention RJ45 Splitter Adapter (IPTB0)

The Vention RJ45 Splitter Adapter enables a single ethernet port to connect two separate network devices through one cable run. This compact adapter splits one RJ45 connection into two distinct ports, allowing simultaneous connections for devices like IP phones, computers, or security cameras. Network administrators, small business owners, and home users deploy this solution when adding network drops without running additional cables through walls or ceilings.

Technical Specifications

Physical Characteristics

• Input Port: 1x RJ45 female (8P8C)
• Output Ports: 2x RJ45 female (8P8C)
• Housing Material: High-impact ABS plastic
• Contact Plating: Gold-plated connectors
• Dimensions: Compact inline design

Performance Standards

• Pin Configuration: Standard T568A/T568B wiring
• Compatible Standards: IEEE 802.3 ethernet
• Maximum Cable Length: Follows standard ethernet distance limitations (100 meters total run)
• Cable Compatibility: Cat.5e, Cat.6, Cat.6a ethernet cables

Connectivity

• Connection Method: RJ45 male to dual RJ45 female
• Wiring Type: Passive splitter (non-powered)
• Installation: Tool-free plug-in connection

Use Cases & Applications

Office environments commonly deploy the Vention IPTB0 splitter adapter when workstations require both computer and VoIP phone connections but only one ethernet cable exists at the desk location. Rather than fishing additional cables through walls or ceiling spaces, IT departments install splitters at both ends of the existing cable run. This approach proves particularly cost-effective during office expansions or desk relocations where infrastructure changes would otherwise require professional cabling services.

However, users should note important limitations: this splitter operates as a passive device that shares wire pairs between two connections. Consequently, both connections cannot simultaneously operate at gigabit speeds. The adapter works best when connecting devices with modest bandwidth requirements, such as pairing a VoIP phone (typically requiring 100 Mbps) with a computer, or connecting two IP cameras that don’t require full gigabit throughput.

Retail environments use these adapters when adding point-of-sale terminals or payment processing equipment to existing network infrastructure. The compact design fits behind counters or registers without occupying valuable workspace. Similarly, hospitality venues deploy splitters in guest rooms or conference areas where limited wall plates exist but multiple devices require wired connections.

Home users find the Vention RJ45 Splitter Adapter valuable when connecting smart home devices, streaming boxes, or gaming consoles in rooms with single ethernet wall jacks. The plug-and-play functionality eliminates configuration complexity, making this an accessible solution for non-technical users expanding their home network capabilities.

For temporary installations like trade shows, pop-up offices, or event spaces, this adapter provides quick network expansion without permanent infrastructure modifications or the expense of managed network switches.
