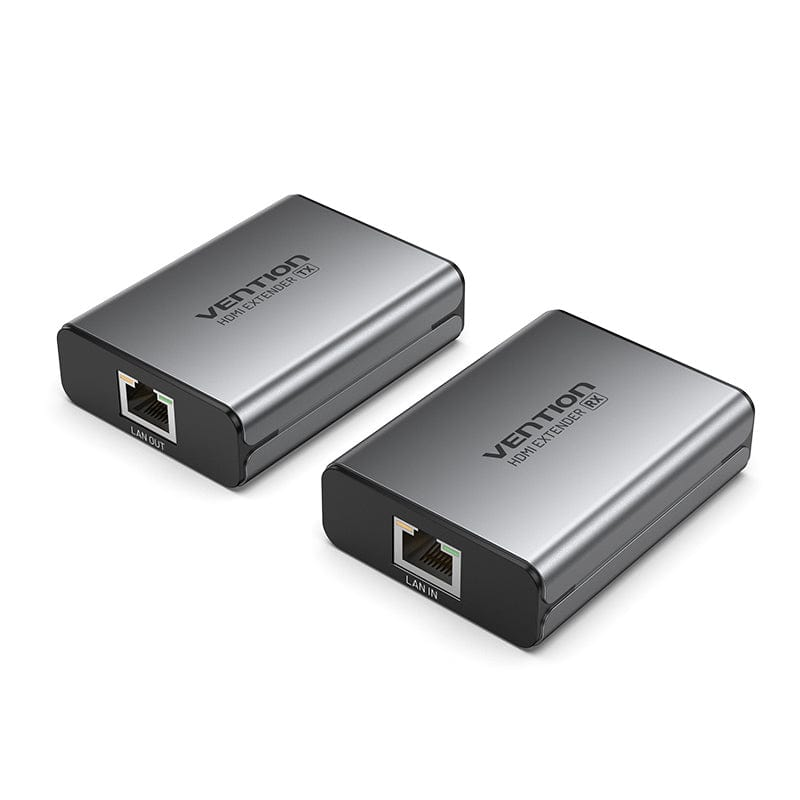

Vention HDMI Network Cable Extender 60M (AKGH0)

The Vention AKGH0 is an HDMI over Ethernet extender system that transmits high-definition video and audio signals up to 60 meters using standard Cat5e/Cat6 network cables. This two-unit solution includes a transmitter and receiver that convert HDMI signals for long-distance transmission, making it ideal for conference rooms, digital signage installations, and home theater setups where displays are located far from source devices. The extender supports 1080p Full HD resolution while eliminating the cost and bulk of expensive long HDMI cables.

Technical Specifications

Video Performance

• Maximum Resolution: 1080p@60Hz (1920×1080)
• Color Depth: 24-bit RGB
• HDCP Support: HDCP 1.4 compliant for protected content
• Transmission Distance: Up to 60 meters (197 feet)
• Cable Type Required: Cat5e, Cat6, or Cat6a (not included)

Connectivity

• Transmitter Input: 1x HDMI Type A (female)
• Receiver Output: 1x HDMI Type A (female)
• Network Connection: RJ45 Ethernet port on both units
• IR Ports: 1x IR transmitter jack, 1x IR receiver jack
• Audio Support: Embedded HDMI audio transmission

Power Specifications

• Transmitter Power: 5V/1A via DC adapter (included)
• Receiver Power: 5V/1A via DC adapter (included)
• Power Consumption: Maximum 5W per unit
• Power Supply Type: Universal input 100-240V AC

Physical Specifications

• Transmitter Dimensions: 68mm x 60mm x 22mm (L x W x H)
• Receiver Dimensions: 68mm x 60mm x 22mm (L x W x H)
• Unit Weight: 110 grams each
• Housing Material: Metal alloy with ventilation slots for heat dissipation
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -20°C to 60°C
• Humidity Range: 20% to 90% non-condensing

Compatibility

• Source Devices: Compatible with computers, media players, cable boxes, gaming consoles, Blu-ray players, cameras
• Display Types: Works with HDTVs, projectors, computer monitors, digital signage displays with HDMI input
• Audio Formats: PCM, Dolby Digital, DTS pass-through
• Control Systems: Compatible with standard IR remote controls

Use Cases and Applications

Corporate Conference Rooms

The Vention AKGH0 solves the common challenge of connecting presentation sources to ceiling-mounted projectors or wall-mounted displays in large meeting spaces. Running a single Cat6 cable through ceiling tiles or conduit is significantly easier than routing bulky HDMI cables, and the included IR extension allows presenters to control laptops or media players from the podium area. This setup proves particularly valuable in boardrooms where equipment closets are located away from display areas for aesthetic or security reasons.

Educational Environments

Schools and universities benefit from the AKGH0’s ability to connect classroom computers to projectors across long distances without signal loss. Teachers can position source equipment near their teaching stations while projectors remain ceiling-mounted at optimal viewing distances. The IR control feature enables instructors to manage playback devices from the front of the classroom rather than returning to equipment cabinets, maintaining lesson flow and student engagement.

Digital Signage Networks

Retail stores, airports, and hospitality venues use this HDMI extender system to position media players in secure equipment rooms while displays remain in public areas. The 60-meter range accommodates most commercial floor plans, and the metal housing withstands the demands of continuous commercial operation. Installation teams appreciate the flexibility of routing network cables through existing infrastructure instead of pulling dedicated HDMI runs.

Home Theater Installations

Home entertainment systems with equipment racks located in basements or closets can send signals to displays throughout the house using the AKGH0. This configuration keeps noisy components away from living spaces while maintaining full HD quality at the screen. The IR extension lets family members control Blu-ray players, streaming boxes, and receivers from their viewing locations without installing additional control systems.

Security and Surveillance

Security operations centers monitoring camera systems can position NVR equipment in locked server rooms while extending live feeds to monitoring stations across the facility. The extender maintains video quality critical for identifying details in surveillance footage, and the point-to-point connection provides a dedicated link that doesn’t consume network bandwidth like IP-based video distribution systems.
