Vention HDMI Cable 20M for Engineering (AAMBQ)

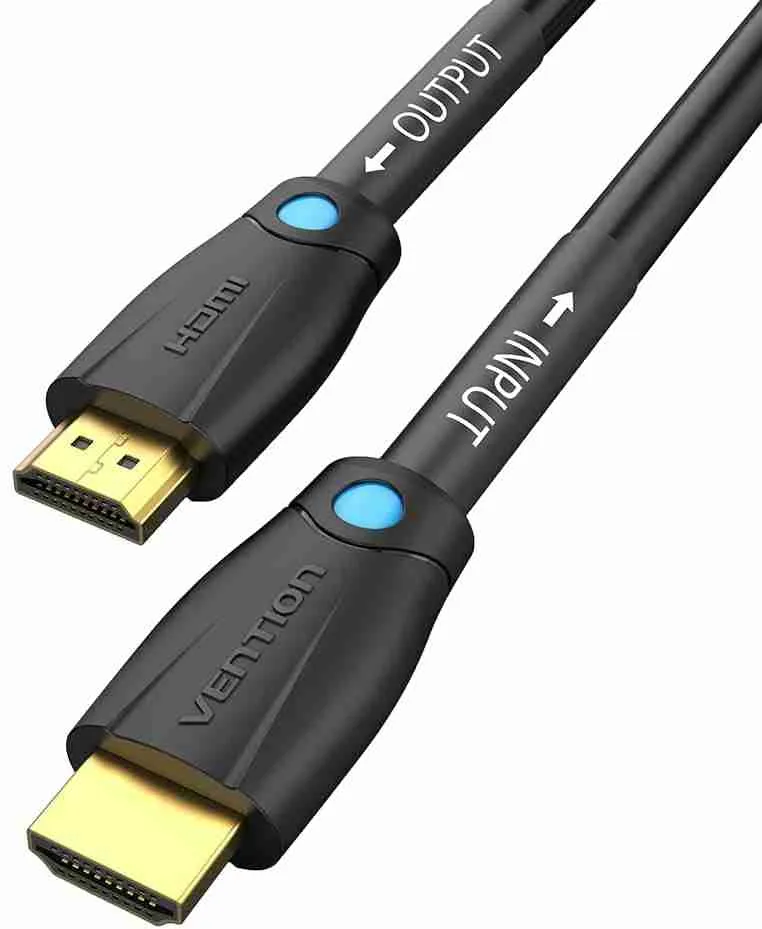

The Vention AAMBQ is a 20-meter HDMI cable engineered for medium-distance professional installations requiring stable 4K video transmission. This active cable incorporates signal amplification technology to maintain video quality across the extended length without external repeaters. It serves as an optimal solution for conference facilities, control rooms, and engineering environments where display connections exceed standard cable limitations.



Technical Specifications

Cable Specifications

• Length: 20 meters (65.6 feet)
• Cable Type: Active HDMI with integrated signal amplifier
• HDMI Version: 2.0 standard compliant
• Conductor Material: Oxygen-free copper (OFC) core with active electronics
• Outer Jacket: Durable PVC with enhanced flexibility for routing

Performance Characteristics

• Maximum Resolution: 4K (3840×2160) at 60Hz
• Alternate Resolution: 1080p Full HD at 120Hz for gaming applications
• Bandwidth: 18 Gbps data transfer rate
• Color Depth: Supports up to 48-bit Deep Color
• Audio Support: High-bitrate audio including Dolby TrueHD, DTS-HD Master Audio, and uncompressed PCM

Physical Design

• Connector Type: HDMI Type A male (directional configuration)
• Source Connector: Features micro-USB port for optional external power
• Connector Plating: 24K gold-plated contacts
• Cable Diameter: Approximately 9mm
• Cable Weight: ~600g for installation planning

Power & Operation

• Primary Power: Bus-powered via HDMI source device
• Auxiliary Power: Micro-USB input (5V DC) if source power insufficient
• Power Indicator: LED on source connector confirms active operation
• Power Consumption: <300mW during transmission
• Operating Temperature: -10°C to 55°C (14°F to 131°F)

Compatibility & Standards

• Device Compatibility: Compatible with workstations, laptops, video switchers, projectors, monitors, TVs, and gaming consoles
• Content Protection: HDCP 2.2 compliant for protected content
• HDR Support: HDR10 and Dolby Vision pass-through capable
• Compliance: RoHS certified, CE marked for safety standards

Use Cases & Applications

Engineering Workstation Installations

Design teams connect CAD workstations to large-format displays positioned across engineering labs. The Vention AAMBQ maintains the visual clarity essential for reviewing technical drawings and 3D models. The 20-meter span accommodates lab layouts where computers remain in climate-controlled areas while displays mount near collaborative workspaces.

Corporate Conference Rooms

Meeting spaces use this cable to connect presentation systems to projectors or LED displays without visible cable runs. AV integrators can route the Vention AAMBQ through ceiling spaces or under raised floors for clean installations. The 4K@60Hz support ensures presentations, video conferences, and screen sharing appear crisp on large displays.

Medical Imaging Review Stations

Healthcare facilities employ the cable to connect imaging workstations to diagnostic displays in reading rooms. Radiologists require accurate color reproduction and detail that the 48-bit color depth provides. Additionally, the 20-meter length allows workstations to remain outside patient areas while displays position in clinical review spaces.

Broadcast & Production Facilities

Video production environments connect cameras, video mixers, and recording equipment using the Vention AAMBQ for preview monitoring. The cable handles the bandwidth requirements of live production workflows. Producers can position monitoring displays away from noisy equipment without compromising video quality during recording sessions.

Training & Simulation Centers

Educational facilities and corporate training centers link simulation computers to immersive display systems. Flight simulators, medical training systems, and industrial equipment simulators benefit from the low-latency video transmission. The cable’s 60Hz refresh rate maintains the smooth motion critical for realistic simulation experiences.

Retail & Hospitality Digital Displays

Hotels and retail stores connect media players to digital signage displays positioned across lobbies and showrooms. Marketing teams can update content from centralized media servers while displays mount in customer-facing locations. The Vention AAMBQ simplifies installations where aesthetic considerations require hidden equipment placement.

Installation Considerations

Correct Directional Connection

This active HDMI cable operates in one direction only. Connect the end labeled “Source” or “Input” to your video source device (computer, media player, camera). Connect the opposite end labeled “Display” or “Output” to your monitor, projector, or television. Incorrect orientation will result in no signal transmission.

Power Supply Options

The Vention AAMBQ typically draws sufficient power from the HDMI source port for normal operation. The LED indicator near the source connector illuminates when receiving adequate power. If experiencing intermittent signal or no display, connect a 5V USB power adapter to the micro-USB port on the source connector. This is occasionally necessary with older equipment or devices with limited HDMI power output.

Cable Management Guidelines

Support the cable every 1.5 to 2 meters along horizontal runs to prevent excessive sagging. Use cable ties or velcro straps rather than tight zip ties that could damage the jacket. Maintain a minimum bend radius of 45mm during installation to protect the internal conductors. When routing through walls or conduits, avoid running parallel to electrical lines for more than 1 meter.

Environmental Considerations

While the Vention AAMBQ features durable construction, avoid installations in areas with extreme temperature fluctuations or high humidity. For outdoor or harsh environment applications, use weatherproof conduit protection. The cable performs optimally in controlled indoor environments typical of office and commercial spaces.
