UniFi Dream Machine Special Edition (UDM-SE)

The UniFi Dream Machine Special Edition (UDM-SE) is an all-in-one enterprise-grade networking and security appliance designed by Ubiquiti for high-performance deployments. Here’s a comprehensive product description:

Overview

Key Specifications

• 1.7 GHz quad-core ARM Cortex-A57 processor
• 4 GB DDR4 RAM
• 128 GB SSD storage (for UniFi Protect NVR functionality)

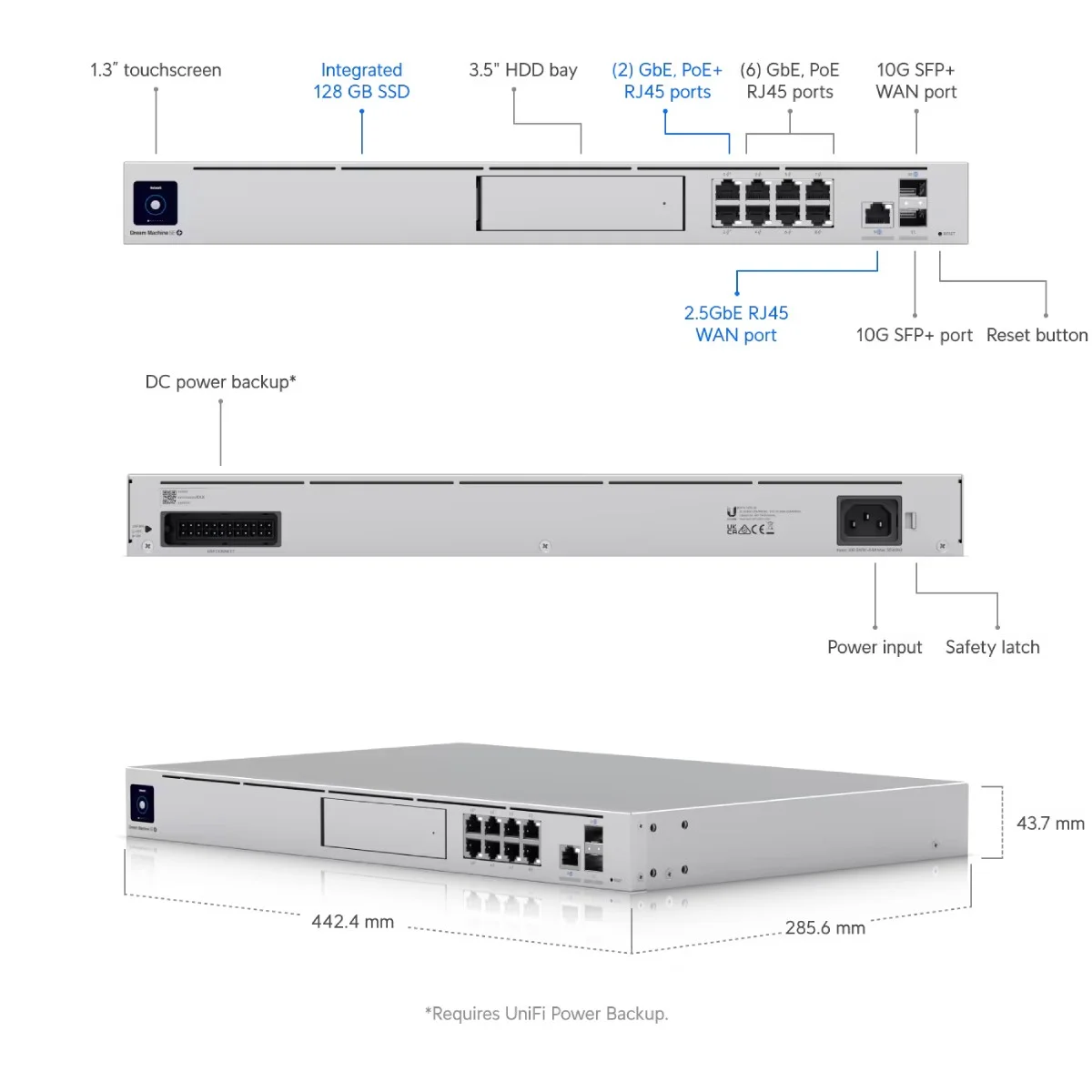

• 1U rack-mountable chassis with integrated display

• WAN Ports: 1x 2.5GbE RJ45 and 1x 10G SFP+
• LAN Ports: 8x GbE RJ45 (with PoE+ support on all ports, 130W total budget)
• Additional: 1x 10G SFP+ LAN port

Core Features

• Advanced firewall with deep packet inspection (DPI)
• Intrusion Detection System (IDS) and Intrusion Prevention System (IPS) with up to 3.5 Gbps throughput
• VLAN support and advanced routing capabilities
• Site-to-site and client-to-site VPN support (OpenVPN, IPsec, WireGuard)

• Built-in controller software for managing UniFi access points, switches, and other network devices
• Zero-touch provisioning for remote deployments
• Detailed traffic analytics and client insights
• RF optimization and auto-channel selection for wireless networks

• Pre-installed 128GB SSD for local video storage (expandable via external USB or network storage)
• Supports up to 20+ UniFi Protect cameras (depending on resolution and frame rate)
• Real-time video monitoring through integrated display or mobile app
• AI-powered event detection (person, vehicle, package detection with compatible cameras)

• 8 PoE+ ports delivering up to 30W per port
• Total PoE budget of 130W, sufficient for powering access points, cameras, and VoIP phones
• Eliminates need for separate power injectors

Management & Interface

• Integrated 1.3″ touchscreen for real-time system status, network statistics, and basic configuration
• Displays WAN/LAN connectivity, device count, and alerts

• Unified operating system hosting Network, Protect, Access, and Talk applications
• Single sign-on (SSO) and multi-site management capabilities
• Role-based administrative access
• Automatic firmware updates and security patches

Performance Capabilities

• Firewall Throughput: 10 Gbps (without IPS/IDS enabled)
• IPS/IDS Throughput: 3.5 Gbps
• VPN Throughput: Up to 3 Gbps (site-to-site IPsec)
• Recommended Clients: 500+ connected devices
• Camera Support: 20+ UniFi Protect cameras (1080p @ 30fps baseline)

Use Cases

• Small to medium businesses requiring unified networking and security
• Retail environments with PoE cameras and access points
• Corporate branch offices needing centralized management
• Professional home labs and tech enthusiasts
• Educational institutions and hospitality venues

Differentiation from Standard UDM

• Rack-mountable 1U form factor (vs. desktop cylinder design)
• Integrated PoE+ switch (8 ports vs. 4 non-PoE on UDM)
• 10G SFP+ connectivity (vs. 1G only on UDM)
• 128GB internal SSD for NVR (vs. no storage on base UDM)
• 2.5GbE WAN port for multi-gig internet support
