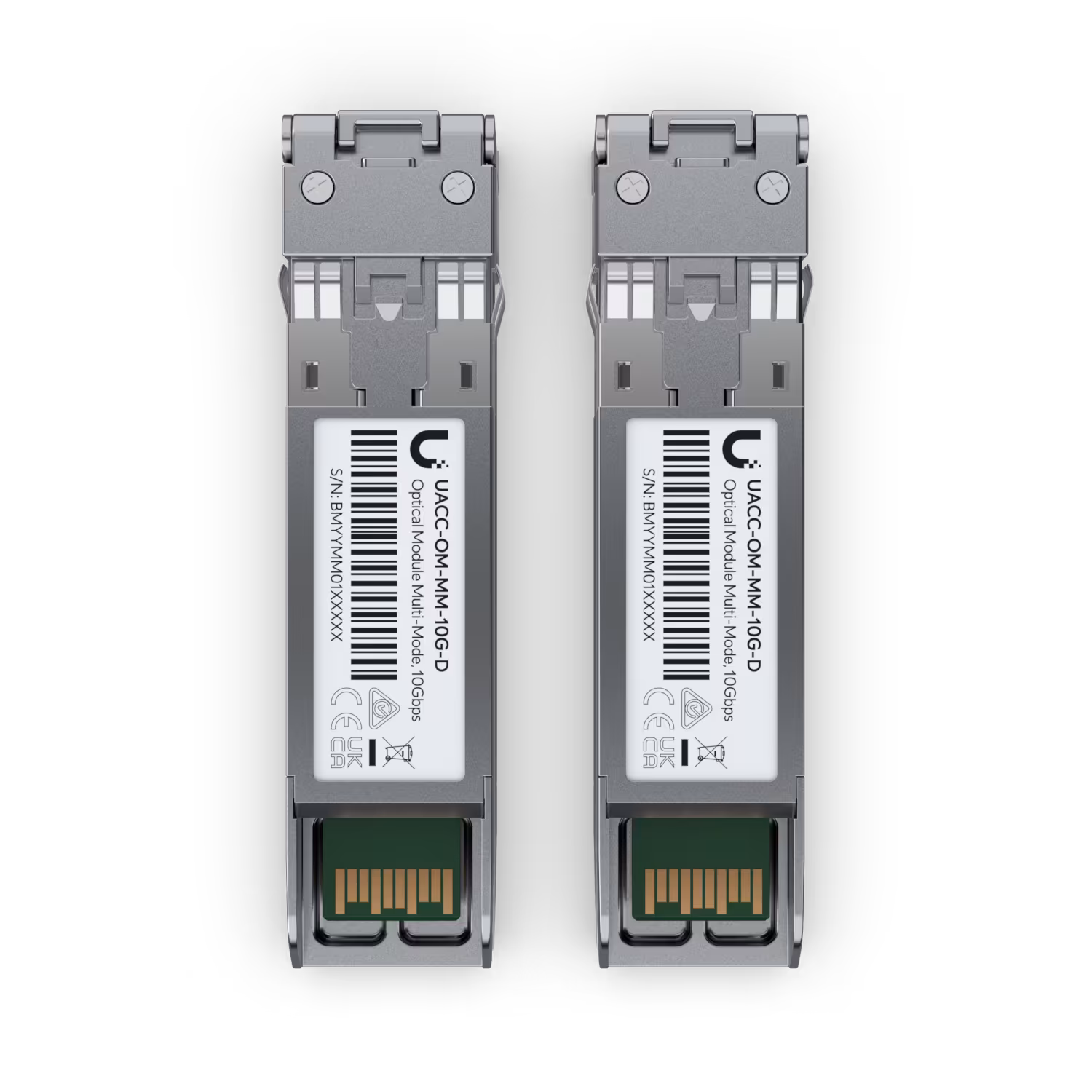

Ubiquiti Multi-Mode Transceiver Module 10Gbps, 850nm, 2-Pack (UACC-OM-MM-10G-D-2)
Overview
The Ubiquiti Multi-Mode Transceiver Module 10Gbps (UACC-OM-MM-10G-D-2) delivers high-speed fiber connectivity for short-range deployments. Specifically, this 2-pack provides duplex transceivers for multi-mode fiber runs up to 300 meters. Furthermore, the 850 nm wavelength ensures efficient operation over OM3 fiber. Consequently, it is ideal for data centers, campus buildings, and indoor high-density networking.
High-Speed Performance
10Gbps Throughput
This Ubiquiti Multi-Mode Transceiver Module 10Gbps delivers up to 10 Gbps line rate. Moreover, it supports both 1 Gbps and 10 Gbps data rates for flexible deployment. Therefore, bandwidth-intensive applications run smoothly without bottlenecks. Additionally, backward compatibility ensures seamless integration with existing infrastructure.
Short-Range Efficiency
Multi-mode fiber connections extend up to 300 meters (984 feet). Furthermore, this range suits data center interconnects and campus building links. As a result, organizations achieve high-speed connectivity without expensive single-mode infrastructure.
Reliable Connectivity
Duplex Fiber Operation
The module uses standard duplex LC UPC connectors. Specifically, it transmits and receives at 850 nm wavelength on separate fiber strands. Moreover, this proven VCSEL laser technology ensures reliable performance. Consequently, integration with switches, routers, and media converters is seamless.
Low Power Design
Maximum power consumption is only 0.8W per module. Additionally, efficient operation reduces heat generation. Therefore, reliability improves in dense switch configurations and rack environments.
Physical Specifications
Compact SFP+ Form Factor
The module fits standard SFP+ slots. Furthermore, hot-swappable design enables maintenance without service interruption. As a result, network upgrades proceed quickly with minimal downtime. Moreover, SFP backward compatibility adds deployment flexibility.
Durable Construction
Operating temperature ranges from 0 to 70°C (32 to 158°F). Additionally, robust construction withstands data center conditions. Consequently, these modules perform reliably in climate-controlled environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Data Rate | 1 / 10 Gbps |
| Supported Media | Multi-Mode Fiber (OM3/OM4) |
| Connector Type | Duplex LC UPC |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Supported Distance | 300 m (984 ft) |
| Max. Power Consumption | 0.8 W |
| Interface | SFP+ (backward compatible to SFP) |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Packaging | 2-Pack |
| Laser Class | Class 1 (IEC/EN 60825-1:2014) |
Deployment Scenarios
Data Center Interconnects
Server rooms and colocation facilities connect at high speeds. Furthermore, the 300m range covers most intra-building links. Consequently, 10Gbps backbone capacity scales affordably.
Campus Fiber Links
Universities and enterprises link nearby buildings with high throughput. Moreover, multi-mode fiber costs less than single-mode alternatives. As a result, budget-conscious expansions proceed faster.
High-Density Switching
Aggregation switches receive 10Gbps uplinks efficiently. Additionally, the compact form factor maximizes port density. Therefore, infrastructure costs remain controlled.
Package Contents
-
2 × Ubiquiti Multi-Mode Transceiver Module 10Gbps transceivers
-
Quick start guide
Note: Fiber cable is not included.
Safety Warning
CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014. Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Summary: The UACC-OM-MM-10G-D-2 combines 10Gbps performance with 300m multi-mode reach in an efficient duplex design. Ultimately, it delivers enterprise-grade fiber connectivity at exceptional value for short-range applications. Therefore, it is the smart choice for network engineers building high-capacity data center and campus links.
