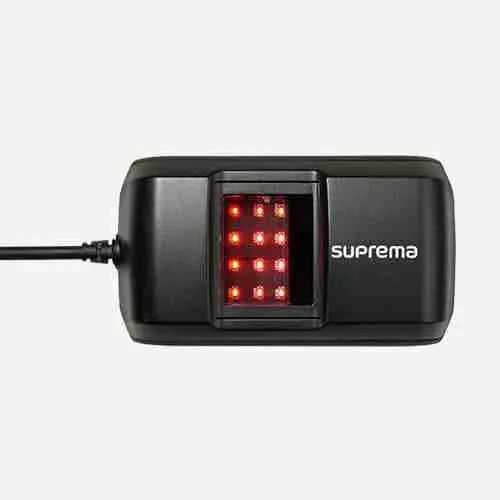

Suprema BioMini Slim 3: Ultra-slim FAP30 Fingerprint Scanner for Federal Authentication

The Suprema BioMini Slim 3 is an FBI-certified FAP30 fingerprint scanner that delivers professional-grade biometric authentication for government agencies, financial institutions, and enterprise deployments. This ultra-compact device features an enlarged capture area compared to FAP20 scanners, enabling faster enrollment and more accurate identity verification in high-security environments. Organizations requiring FIPS 201 compliance for access control and identity management programs will find the Suprema BioMini Slim 3 meets stringent federal authentication standards.

Technical Specifications

Biometric Performance

• Sensor Type: Optical fingerprint sensor
• Certification: FBI FAP30, FIPS 201 compliant
• Image Resolution: 500 DPI
• Capture Area: 20.3mm × 25.4mm (0.8″ × 1.0″) – FAP30 standard
• False Accept Rate (FAR): <0.001%
• False Reject Rate (FRR): <0.1%
• Authentication Speed: <1 second matching time
• Image Quality: NFIQ 2.0 compliant

Physical Design

• Dimensions: 80mm (W) × 65mm (D) × 9.8mm (H)
• Weight: 85 grams
• Form Factor: Ultra-slim portable design
• Environmental Rating: IP65 (dust-tight and water-resistant)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 20% to 80% RH (non-condensing)

Connectivity & Interface

• Connection: USB 2.0 Full Speed
• Power Supply: USB bus-powered (no external adapter required)
• Power Consumption: 250mA @ 5V DC (typical operation)
• Cable Length: 1.5 meters standard USB cable
• Interface Protocol: TWAIN, WBF (Windows Biometric Framework)

Security Features

• Live Finger Detection (LFD): Advanced anti-spoofing technology
• Encryption: Template data encryption support
• Secure Communication: Encrypted data transmission
• Compliance: FIPS 201, PIV-compliant for federal applications

Software Compatibility

• Operating Systems: Windows 7/8/10/11, Linux (Ubuntu, CentOS), Android 5.0 or higher
• SDK Availability: C/C++, C#, Java, Python development kits included
• Standards Support: ANSI 378, ISO 19794-2, WSQ template formats
• API Integration: RESTful API support for web applications

Use Cases & Applications

Federal Identity Verification Programs: The Suprema BioMini Slim 3 serves government agencies requiring FAP30-certified fingerprint capture for PIV card enrollment and credentialing programs. The larger capture area reduces enrollment time while maintaining the image quality standards necessary for FBI background checks and national security clearances.

Financial Services Compliance: Banks and credit unions deploy this scanner for Know Your Customer (KYC) verification and fraud prevention during account opening processes. The device’s anti-spoofing technology prevents identity theft while the FAP30 certification ensures biometric data meets regulatory requirements for financial transaction authentication.

Mobile Enrollment and Registration: Field teams conducting voter registration, refugee processing, or benefits enrollment benefit from the scanner’s portable design and rugged IP65 construction. Additionally, the USB bus-powered operation eliminates the need for external power sources during remote deployment scenarios.

Healthcare Patient Safety: Hospitals and medical facilities use the Suprema BioMini Slim 3 to prevent medical identity theft and ensure accurate patient identification at admission and medication dispensing. HIPAA-compliant deployments leverage the device’s template encryption to protect sensitive health information while maintaining fast authentication speeds that don’t disrupt clinical workflows.

Enterprise Access Control Systems: Corporate security teams integrate this fingerprint scanner into physical access management and workstation authentication systems. The comprehensive SDK support and cross-platform compatibility enable IT departments to deploy unified biometric authentication across Windows desktops, Linux servers, and Android mobile devices without developing separate integration code for each platform.

Border Control and Immigration: Customs and immigration agencies utilize the larger FAP30 capture area for passport verification and visa application processing. The scanner’s NFIQ 2.0 compliance ensures captured fingerprints meet international biometric quality standards for cross-border identity verification programs.
