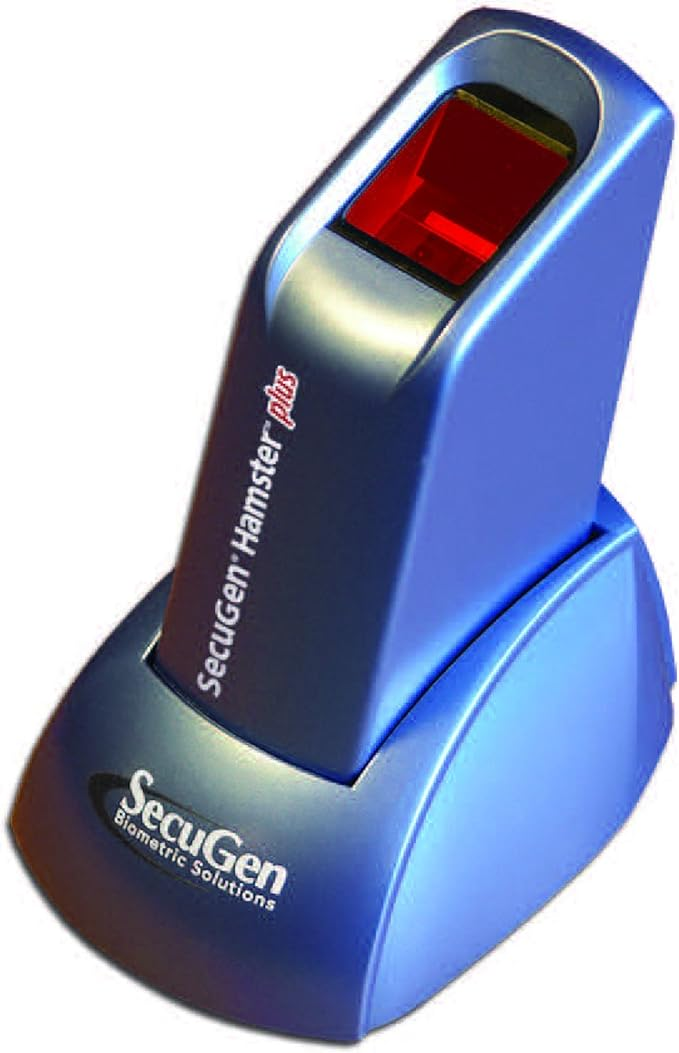

SecuGen Hamster PLUS Fingerprint Reader (USB)

The SecuGen Hamster PLUS is a compact USB fingerprint scanner designed for desktop authentication, access control, and identity verification applications. This optical sensor captures high-quality fingerprint images with 500 dpi resolution, making it suitable for biometric enrollment, time attendance systems, and secure login applications. Organizations and individuals choose this reader for reliable fingerprint recognition at an affordable price point with broad software compatibility.

Technical Specifications

Sensor Technology

• Sensor Type: Optical CMOS sensor
• Resolution: 500 dpi (dots per inch)
• Image Area: 12.8mm × 18mm
• Image Size: 260 × 300 pixels
• Grayscale: 256 levels (8-bit)
• Scan Speed: Less than 1 second per capture

Performance Characteristics

• Auto-On Detection: Automatic finger placement detection
• Platen Material: Scratch-resistant optical surface
• Sensor Durability: Rated for millions of fingerprint captures
• False Acceptance Rate (FAR): < 0.001% (depending on matching algorithm)
• False Rejection Rate (FRR): < 0.1% (depending on matching algorithm)
• Template Size: Typically 256-1200 bytes (depending on extraction algorithm)

Physical Specifications

• Form Factor: Compact desktop unit
• Dimensions: Approximately 82mm (L) × 59mm (W) × 50mm (H)
• Weight: Approximately 140g
• Cable Length: 1.2 meters standard USB cable
• Color: Light gray housing with transparent platen window
• Mounting Options: Desktop placement or optional mounting bracket

Connectivity & Power

• Interface: USB 2.0 (backward compatible with USB 1.1)
• Power Supply: Bus-powered via USB (no external adapter required)
• Power Consumption: Less than 500mA during operation
• Connector Type: Standard USB Type-A connector

Environmental Specifications

• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• Humidity: 20% to 80% non-condensing
• ESD Protection: 15kV air discharge, 8kV contact discharge

Software & Compatibility

• Operating Systems: Windows 7/8/10/11, Windows Server, Linux
• SDK Support: C, C++, C#, Java, VB.NET, Delphi
• API Standards: ANSI 378, ISO 19794-2, WSQ compression
• Driver Support: TWAIN, WBF (Windows Biometric Framework)
• Development Tools: Comprehensive SDK with sample applications and documentation

Certifications & Standards

• FBI Certification: Meets FBI Image Quality Specifications (IQS)
• FCC: FCC Class B certified
• CE: CE marked for European compliance
• RoHS: RoHS compliant (lead-free)
• WHQL: Windows Hardware Quality Labs certified drivers

Use Cases & Applications

Time and Attendance Systems

The SecuGen Hamster PLUS integrates with workforce management software to eliminate buddy punching and time card fraud. Employees simply place their finger on the scanner when clocking in or out, creating accurate time records linked to verified identities. The durable optical sensor withstands heavy daily use in manufacturing facilities, warehouses, and retail environments where hundreds of employees clock in throughout multiple shifts.

Desktop Authentication and Login

Organizations implement fingerprint-based Windows login to replace or supplement password authentication on workstations. Users enroll their fingerprints once, then access their computers with a simple finger scan instead of remembering complex passwords. This approach enhances security while improving user convenience, particularly for healthcare environments where staff frequently log in and out throughout shifts.

Access Control Integration

Physical security systems incorporate the Hamster PLUS for biometric door access, replacing or augmenting proximity cards and PIN codes. The reader connects to access control panels or dedicated workstations running access management software. Schools, corporate offices, and data centers benefit from audit trails that definitively identify who accessed restricted areas rather than relying on potentially shared credentials.

Point-of-Sale Identity Verification

Retail and hospitality environments use fingerprint scanners to verify cashier identities during POS transactions, preventing unauthorized access to cash drawers and transaction voids. The compact size fits easily beside cash registers without consuming valuable counter space. Furthermore, the FBI-certified image quality ensures reliable recognition even when employees have worn or damaged fingerprints from repetitive tasks.

Healthcare Patient Identification

Medical facilities deploy fingerprint scanners at registration desks and nursing stations to verify patient identities before administering medications or accessing medical records. This biometric verification reduces medical errors caused by patient misidentification and helps maintain HIPAA compliance through definitive identity confirmation. The plug-and-play USB connectivity simplifies deployment across multiple workstations.

Banking and Financial Services

Financial institutions use the Hamster PLUS for customer identity verification during account opening, loan applications, and high-value transactions. Bank branches position scanners at teller stations and customer service desks to capture fingerprints for Know Your Customer (KYC) compliance. The FBI certification meets regulatory requirements for identity verification in financial services applications.

Educational Institution Management

Schools and universities implement fingerprint authentication for library checkouts, computer lab access, and dormitory entry systems. Students and faculty enroll once at the beginning of the academic year, then use their fingerprints throughout campus facilities. The scratch-resistant platen withstands constant use by students who may not handle equipment carefully.

Government and Civil Applications

Government agencies utilize FBI-certified fingerprint scanners for background checks, licensing applications, and civil identification programs. The 500 dpi resolution meets standards for law enforcement databases and national identification systems. Social service departments, motor vehicle agencies, and immigration offices rely on standardized image quality for interoperability with government databases.
