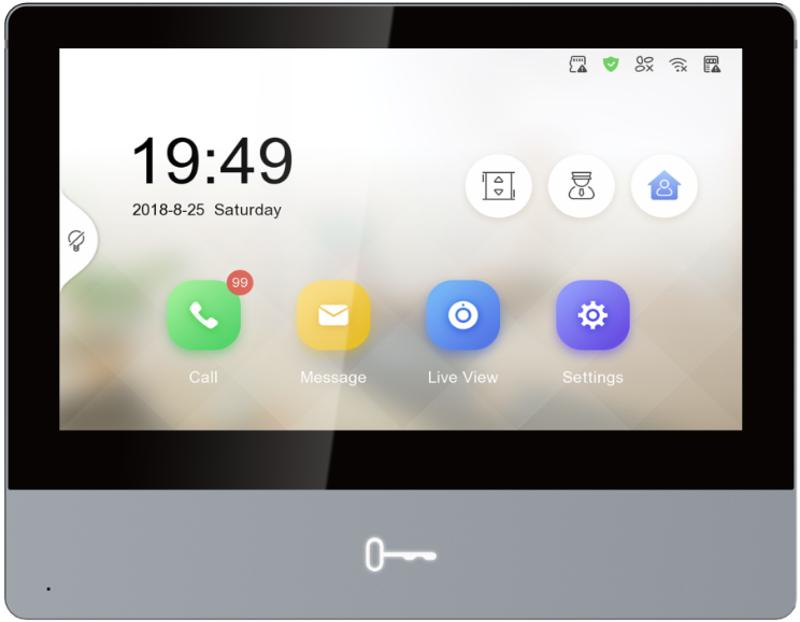

Hikvision DS-KH8350-WTE1 – KH8 Series Video Intercom Indoor Station
The Hikvision DS-KH8350-WTE1 Kenya listing covers a KH8 series video intercom indoor station with a 7-inch IPS capacitive touchscreen. Specifically, the IPS panel shows door-station video at 1024 × 600. As a result, residents see each visitor on a full-colour screen before opening the door.
Meanwhile, installers can set up the whole system from the touchscreen, using a guided wizard with no PC required. In addition, the station links to up to 17 door stations, 16 indoor extensions, and 16 network cameras. For instance, one unit can view the gate, the lobby, and a public-area camera from the same screen.
Furthermore, the Hik-Connect app lets owners take calls, open doors, and watch live video from their phone. When nobody answers, visitors can leave a voice message. The station also receives alarms from 8 alarm inputs and supports elevator access control in multi-storey buildings.
Notably, it connects by Ethernet or 2.4 GHz Wi-Fi and runs on standard PoE (IEEE 802.3af) or 12 VDC, drawing 8 W or less. A TF slot up to 128 GB adds local storage. For door stations, PoE switches, and cameras to pair with it, browse our full Hikvision catalogue.
Technical Specifications
System & Display
| Specification | Details |
|---|---|
| Model | DS-KH8350-WTE1 |
| Product Type | KH8 Series Video Intercom Indoor Station |
| Operating System | Linux |
| ROM / RAM | 32 MB / 128 MB |
| Processor | Embedded high-performance processor |
| Screen | 7-inch colour IPS, capacitive touch |
| Resolution | 1024 × 600 |
| Physical Buttons | 1 |
Audio
| Specification | Details |
|---|---|
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Output | 1 built-in loudspeaker |
| Audio Compression | G.711U, G.711A; 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume | Adjustable |
Capacity
| Specification | Details |
|---|---|
| Notices | 200 |
| Linked Indoor Extensions | 16 |
| Linked Door Stations | 17 |
| Linked Network Cameras | 16 |
Network & Interfaces
| Specification | Details |
|---|---|
| Network Protocols | TCP/IP, SIP, RTSP |
| Wi-Fi | 2.4 GHz, IEEE 802.11b/g/n |
| Network Interface | 1 × RJ-45, 10/100 Mbps auto-sensing |
| Alarm Input | 8 |
| Alarm Output | 2 |
| RS-485 | 1 (half duplex) |
| Lock Control | 2 relays, high/low level (3.3 V / 0 V) |
| TF Card | Up to 128 GB |
Functions
| Specification | Details |
|---|---|
| Mobile Control | Hik-Connect: answer calls, open doors, live view |
| Setup | PC-free guided wizard; full system configuration from the screen |
| Live View | Door stations and public-area cameras |
| Voice Messages | Left by visitors when calls go unanswered |
| Alarm | Receives alarms from internal alarm terminals |
| Elevator Control | Supported |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 12 VDC / 1 A, or standard PoE (IEEE 802.3af) |
| Power Consumption | ≤ 8 W |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | 10% to 90% (non-condensing) |
| Application Environment | Indoor |
| Installation | Surface mounting |
| Dimensions (W × H × D) | 180 mm × 140 mm × 22.4 mm (7.09″ × 5.51″ × 0.88″) |
| Net Weight | 355 g (0.8 lb) |
| Gross Weight | 899 g (2.0 lb) |
| Languages | 33 languages, including English, German, French, Spanish, Russian, and Arabic |
| Optional Accessories | DS-KAW50-1 / DS-KAW50-1N 50 W 12 V power adapters; DS-KABH8350-T table bracket |
