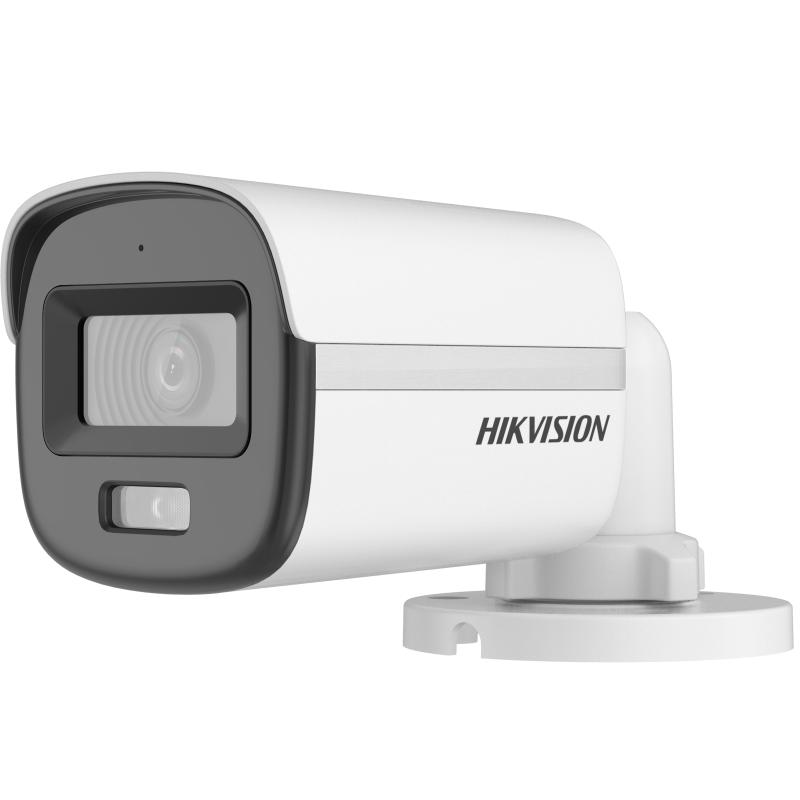

Hikvision DS-2CE10KF0T-LPFS(3.6mm) – 3K ColorVu Smart Hybrid Light Fixed Mini Bullet Camera
The Hikvision DS-2CE10KF0T-LPFS (3.6mm) is a 3K resolution analog bullet camera built around ColorVu Smart Hybrid Light technology, which combines infrared and white-light illumination to keep footage in full color both day and night. It captures video at 2960 × 1665 resolution through an F1.0 aperture lens, allowing it to gather more light than standard security cameras and produce clearer, more usable footage in dim conditions. The camera supports four switchable video outputs (TVI, AHD, CVI, CVBS), so it fits into most existing analog DVR systems without needing new infrastructure. It also includes a built-in microphone for synchronized audio, and an IP67-rated weatherproof housing that allows outdoor mounting on gates, compound walls, verandas, and building exteriors. However, buyers should note this is an analog (Turbo HD) camera, not an IP/network camera, so it requires a compatible DVR rather than an NVR.
Key Features
- 3K CMOS sensor delivering 2960 × 1665 resolution for sharp, detailed footage
- F1.0 aperture with Smart Hybrid Light for 24/7 full-color imaging, switching automatically between IR and white light
- 3.6mm fixed lens with 80° horizontal field of view, suited for focused, medium-range coverage
- Built-in microphone capturing audio within a 5-meter radius over coaxial cable
- IP67 weatherproof rating for reliable outdoor performance in dust, rain, and heat
Technical Specifications
| Specification | Details |
|---|---|
| Model | DS-2CE10KF0T-LPFS(3.6mm) |
| Camera Type | 3K ColorVu Smart Hybrid Light Fixed Mini Bullet Camera |
| Image Sensor | 3K CMOS |
| Max. Resolution | 2960 (H) × 1665 (V) |
| Frame Rate | TVI: 3K @20fps, 4MP @25/30fps, 1080p @25/30fps; AHD: 5MP @20fps, 4MP @25/30fps; CVI: 4MP @25/30fps; CVBS: PAL/NTSC |
| Lens | 3.6mm fixed focal |
| Field of View | Horizontal: 80°, Vertical: 50°, Diagonal: 112° |
| Lens Mount | M12 |
| Aperture | F1.0 |
| Min. Illumination | 0.001 Lux @(F1.0, AGC ON); 0 Lux with white light |
| Day/Night Mode | ICR (Auto/Color) with Smart Hybrid Light |
| Supplement Light | IR up to 20m, White Light up to 20m |
| WDR | Digital WDR |
| Shutter Time | PAL: 1/25s–1/50,000s; NTSC: 1/30s–1/50,000s |
| Signal System | PAL/NTSC |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Audio | Built-in microphone, pickup radius up to 5m |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
| Ingress Protection | IP67 (dust and water resistant) |
| Power Supply | 12 VDC ±25%, max. 3.9 W |
| Operating Conditions | -40°C to 60°C, humidity 90% or less (non-condensing) |
| Weight | Approx. 230g |
Best Suited For
- Homeowners securing compound entrances and perimeters — the wide 80° field of view and long-range IR/white light cover gates, driveways, and walls effectively
- Small business and retail outlets needing color footage at night — ColorVu ensures faces, number plates, and merchandise remain identifiable even after dark
- Property managers upgrading existing analog DVR systems — the switchable TVI/AHD/CVI/CVBS output allows a drop-in upgrade without replacing the recorder or rewiring the site
Recommended Action
For reliable round-the-clock color surveillance without the cost of a full IP camera system, the DS-2CE10KF0T-LPFS(3.6mm) is a practical fit for anyone extending or upgrading an existing analog CCTV setup.
