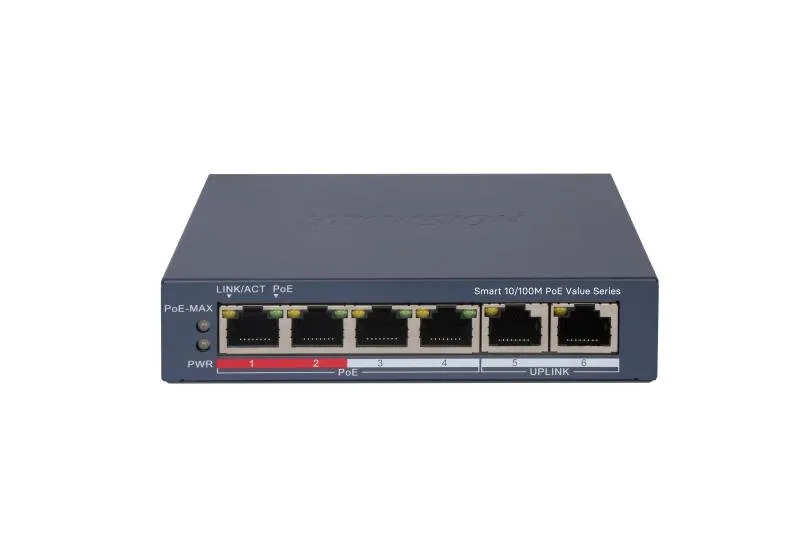

Hikvision DS-3E1106P-EI/M – 4 Port Fast Ethernet Smart PoE Switch

The Hikvision DS-3E1106P-EI/M is a smart-managed PoE switch that suits small CCTV networks needing centralised control without the cost of a full enterprise switch. Specifically, it provides four 10/100 Mbps PoE ports and two 10/100 Mbps RJ45 uplink ports, giving installers enough capacity to power four cameras while still connecting back to a router or NVR. In addition, the switch carries a 45 W total PoE power budget, so meanwhile it comfortably supports standard IP cameras drawing under 11.25 W each across all four ports simultaneously.

Furthermore, its metal chassis supports desk-mounted or wall-mounted installation, and because it runs fanless, it operates silently in offices, shops, or server cabinets. Notably, the switch supports long-range PoE transmission up to 300 m, which helps when installers place cameras far from the equipment room. As a result, installers can extend coverage beyond the standard 100 m Ethernet limit without adding a repeater. Consequently, this makes the DS-3E1106P-EI/M a practical fit for small business or residential CCTV deployments across Kenya; browse the full range of <a href=”https://urbanlinkcomputers.co.ke/?product_cat=0&s=hikvision&post_type=product”>Hikvision products in Kenya</a> for compatible cameras and recorders.

Key Features

• 4 PoE + 2 uplink ports – 10/100 Mbps PoE ports for cameras, plus two RJ45 uplink ports for the router or NVR connection.
• 45 W total PoE power budget – supports IEEE 802.3af/at powered devices with a PoE-MAX indicator to flag budget limits.
• 300 m long-range PoE transmission – extends camera placement well beyond standard Ethernet distance limits.
• PoE Watchdog – automatically detects and restarts unresponsive cameras on ports 1–4, reducing manual troubleshooting.
• 6 kV surge protection – protects connected cameras and the switch itself from power surges common in outdoor installs.

Technical Specifications

Who This Switch Suits Best

• Small 4-camera CCTV installs – its four PoE ports and 45 W budget match a typical shop, home, or small office system without needing an extra power injector.
• Sites with long cable runs – since it supports PoE transmission up to 300 m, it suits gates, parking areas, or outbuildings that sit far from the main equipment room.
• Installers who need remote visibility – because it supports Hik-Partner Pro and Hik-Central Pro management, technicians can monitor port status, PoE usage, and alarms without visiting the site.
