Fanvil i504W SIP Indoor Station – Technical Documentation

Product Overview

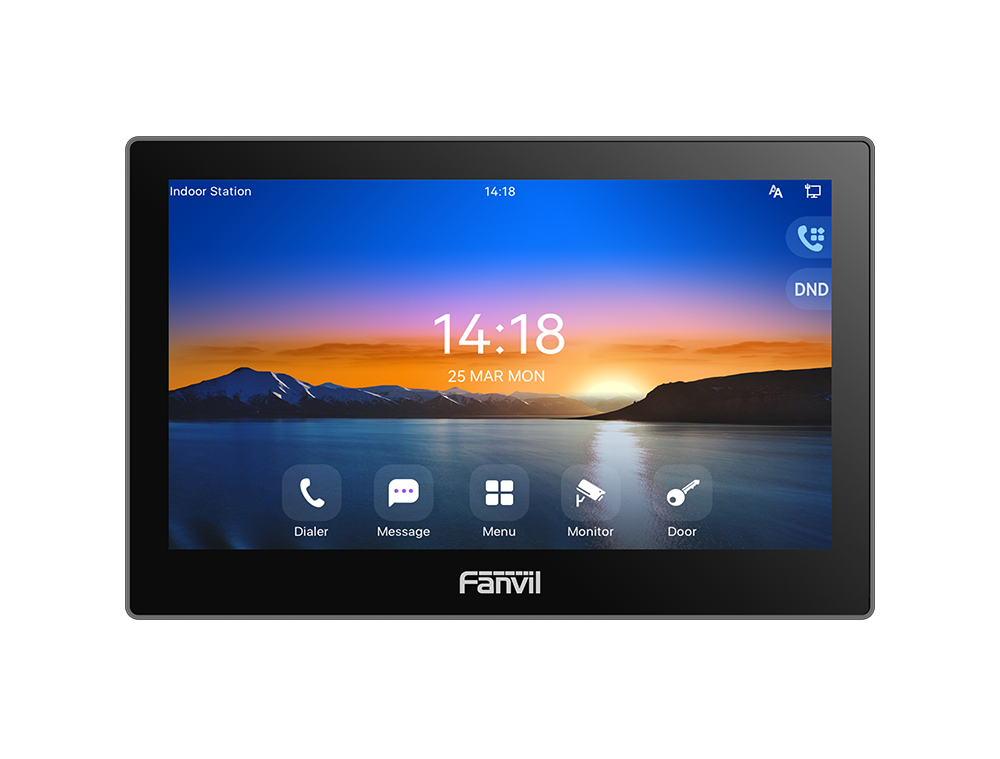

The Fanvil i504W is a sophisticated SIP-based indoor station designed to deliver comprehensive intercom and building communication solutions for residential complexes, office buildings, and commercial facilities. This advanced indoor station seamlessly combines voice and video communication capabilities, enabling users to interact with visitors at entry points while maintaining security and convenience. Furthermore, the device features a high-resolution touchscreen display that provides clear video feed from compatible door stations and outdoor intercoms, allowing residents or employees to visually verify visitors before granting access.

Moreover, the i504W incorporates dual-band Wi-Fi connectivity alongside standard Ethernet options, offering flexible installation possibilities without the constraints of wired network infrastructure. Additionally, the unit supports SIP protocol integration with existing IP-PBX systems and communication platforms, making it an ideal choice for unified building-wide communication networks. Therefore the device also includes smart home integration capabilities, consequently enabling users to control connected devices, monitor security cameras, and manage access control systems from a single, intuitive interface. In addition to its elegant design and comprehensive feature set, the i504W serves as a central communication hub for modern smart buildings and security-conscious environments.

Technical Specifications

Display & Interface

• Display Type: High-resolution color touchscreen
• Screen Size: 7-inch capacitive touch panel
• Resolution: 1024 x 600 pixels (typical specification)
• Touch Technology: Multi-point capacitive touch for smooth navigation
• User Interface: Intuitive graphical interface with customizable layouts

Video Capabilities

• Video Codec: H.264, MJPEG
• Video Resolution: Up to 720p HD quality
• Frame Rate: Adjustable frame rate for optimal performance
• Video Call Support: Real-time video intercom with door stations
• Multiple Camera Support: Integration with multiple video sources

Audio Performance

• Audio Codec: G.711, G.722, G.729, Opus
• Speaker: Built-in high-quality speaker
• Microphone: Integrated noise-cancelling microphone
• Full-Duplex Audio: Clear two-way communication
• Volume Control: Adjustable audio levels

Network Connectivity

• Ethernet: 10/100Mbps RJ45 port
• Wi-Fi: Dual-band 802.11 b/g/n/ac (2.4GHz and 5GHz)
• Protocol Support: SIP v2.0 (RFC3261)
• Network Security: 802.1X authentication, HTTPS, SRTP
• VLAN Support: 802.1Q VLAN tagging

SIP & Communication Features

• SIP Accounts: Multiple SIP account registration
• Call Management: Call hold, transfer, forwarding, conferencing
• Intercom Function: Direct intercom calling to door stations
• Door Release Control: Remote door unlock functionality
• Call History: Incoming, outgoing, and missed call logs
• Do Not Disturb: Customizable DND modes

Smart Home Integration

• Smart Device Control: Integration with IoT devices and home automation systems
• Security Camera Monitoring: Live view from connected IP cameras
• Scene Management: Customizable automation scenes
• Access Control: Integration with electronic locks and access systems

Additional Features

• Message Notification: Visual and audio alerts for calls and messages
• Photo Capture: Automatic snapshot of visitors
• SD Card Slot: Expandable storage for photos and call recordings
• Multi-language Support: Multiple language options for global deployment
• Alarm Integration: Connection to security alarm systems

Power Specifications

• Power Supply: PoE (Power over Ethernet) IEEE 802.3af or DC adapter
• Power Consumption: Low power operation for energy efficiency
• Input Voltage: DC 12V (adapter) or PoE standard voltage
• Standby Power: Minimal power consumption in standby mode

Physical Specifications

• Mounting Type: Wall-mounted or desktop installation
• Dimensions: Compact design for space-efficient installation
• Build Material: High-quality ABS plastic housing
• Color Options: Typically white or black finish
• Installation: Flush mount or surface mount options

Environmental Specifications

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Certifications: CE, FCC, RoHS compliant

Package Contents

• i504W Indoor Station
• Mounting Bracket
• Power Adapter
• Ethernet Cable
• Installation Screws and Anchors
• Quick Installation Guide
• User Manual
